The ODYSSEUS opens up a new chapter for A. Lange & Söhne. It lays the foundation for a further watch family: the sixth one. For the first regularly produced timepiece in stainless steel, the Saxon watchmakers developed a tailor-made self-winding movement with a large day-of-week and date display. (Higher resolution images in the gallery)

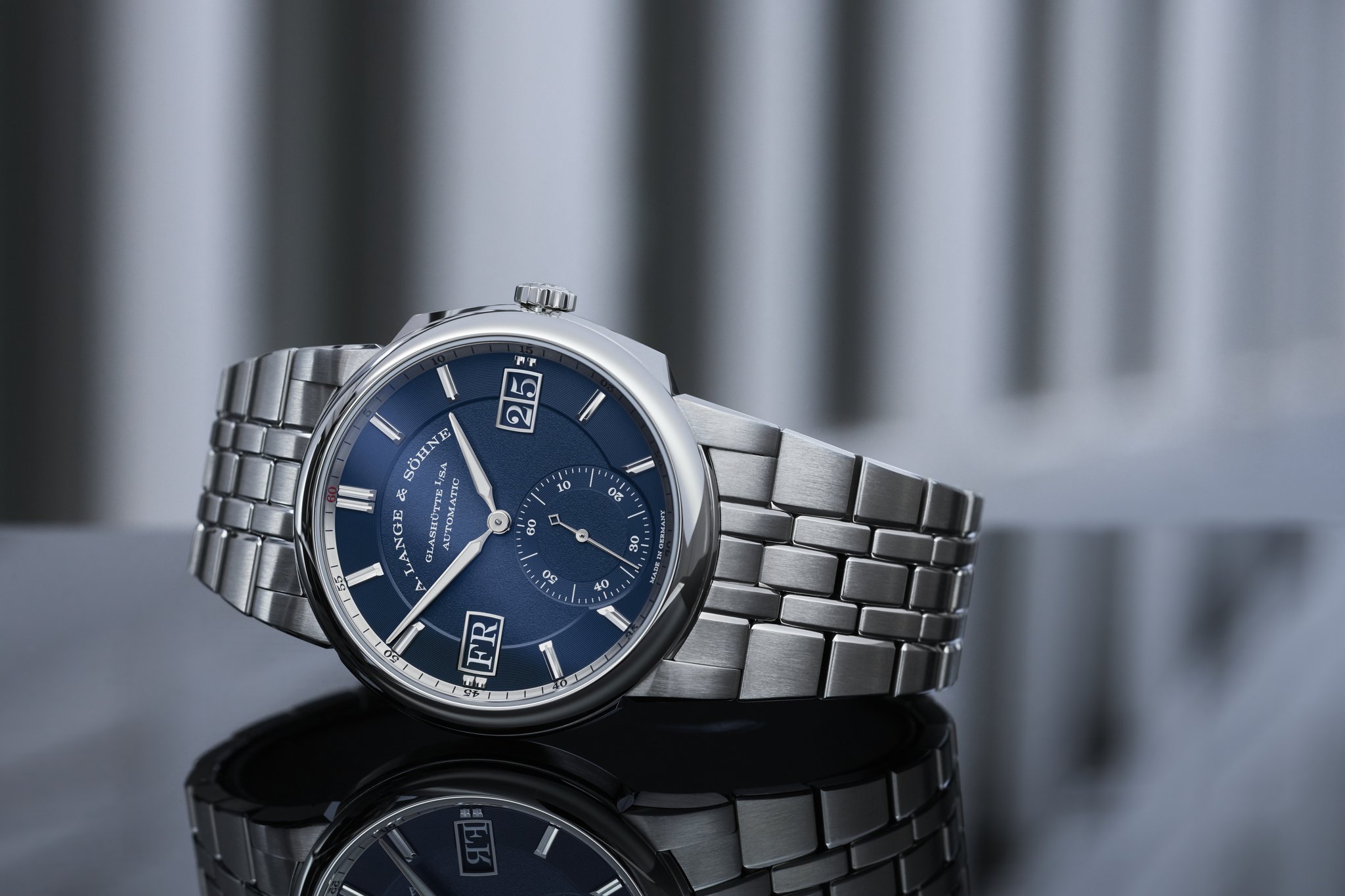

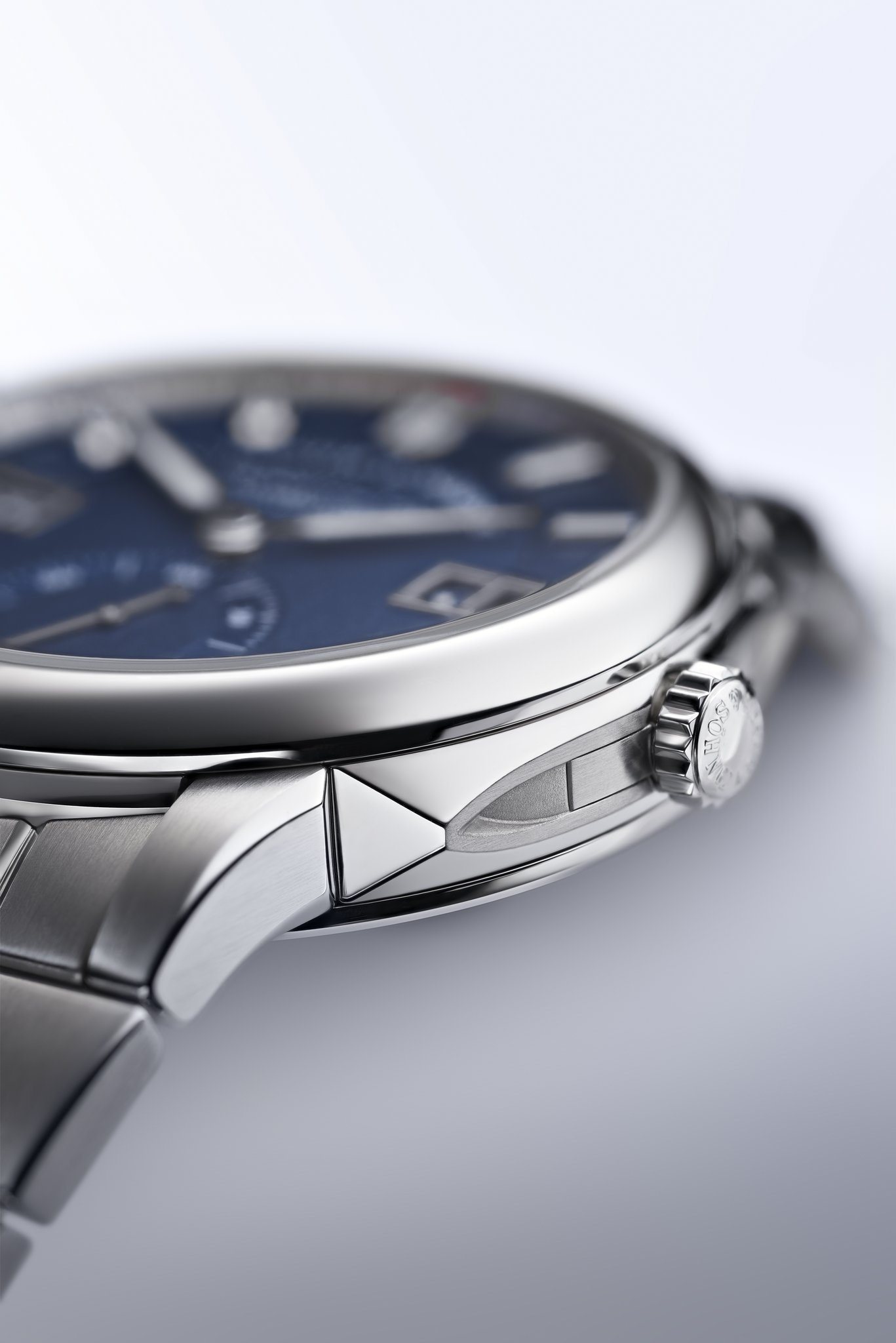

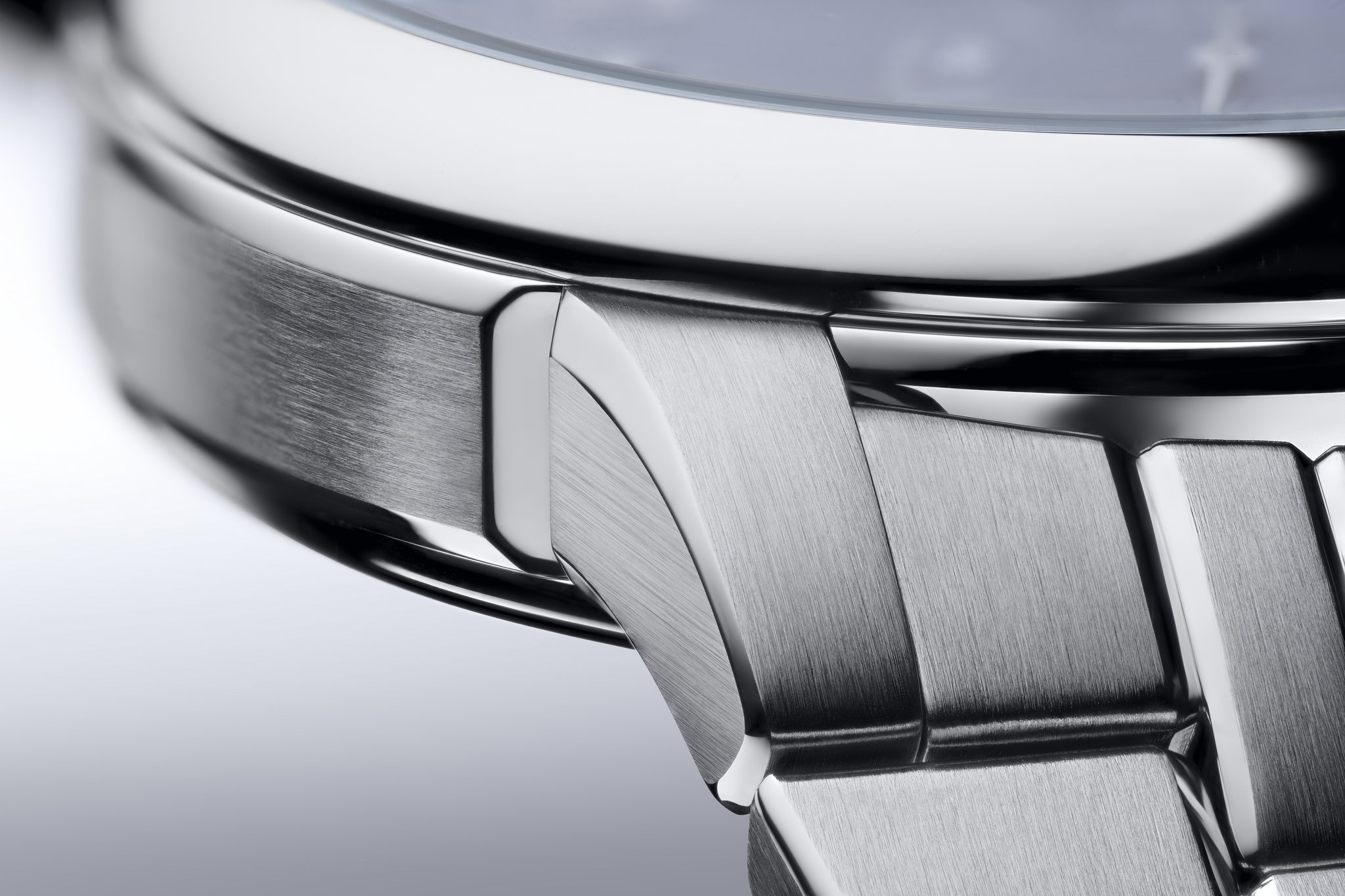

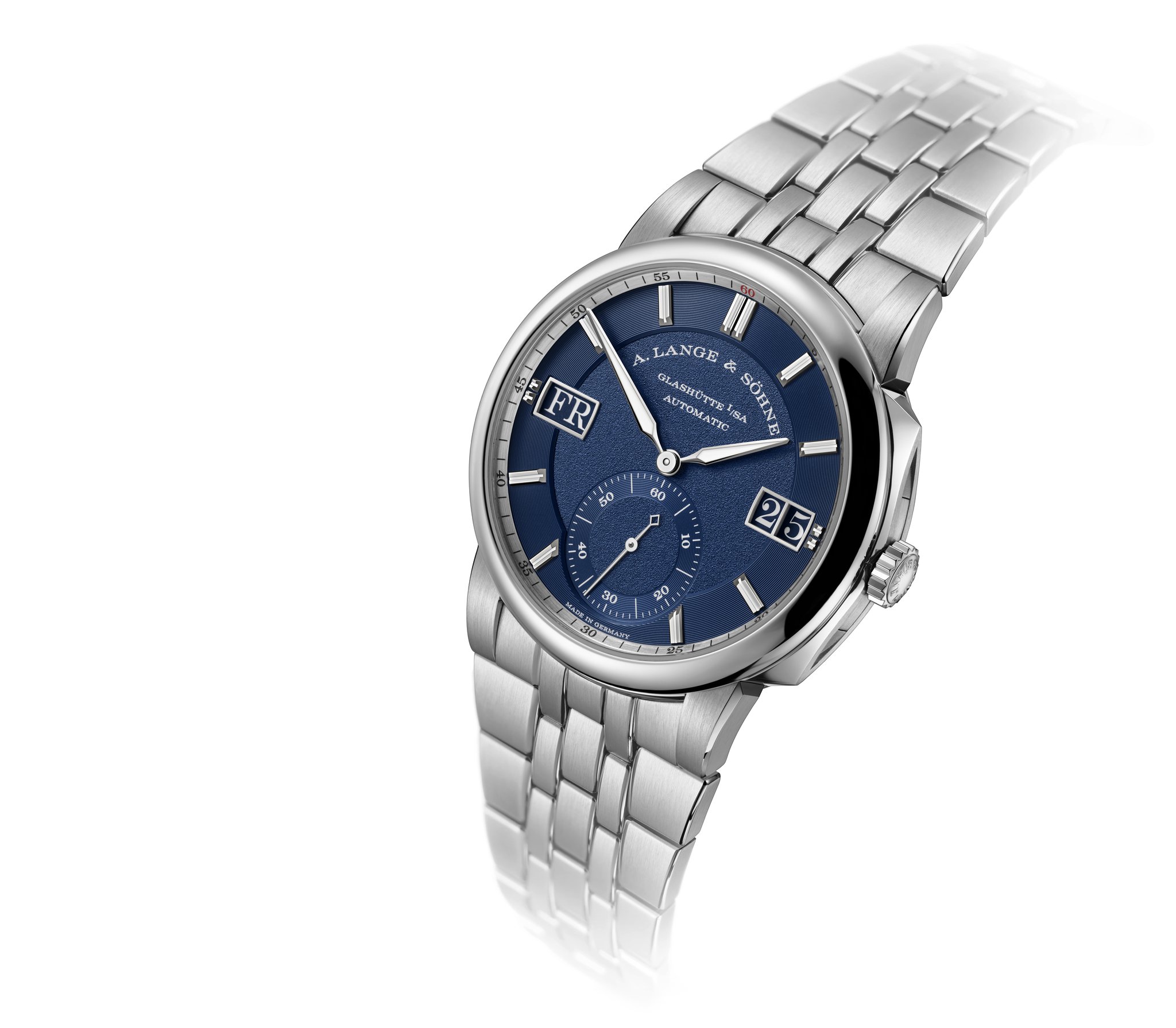

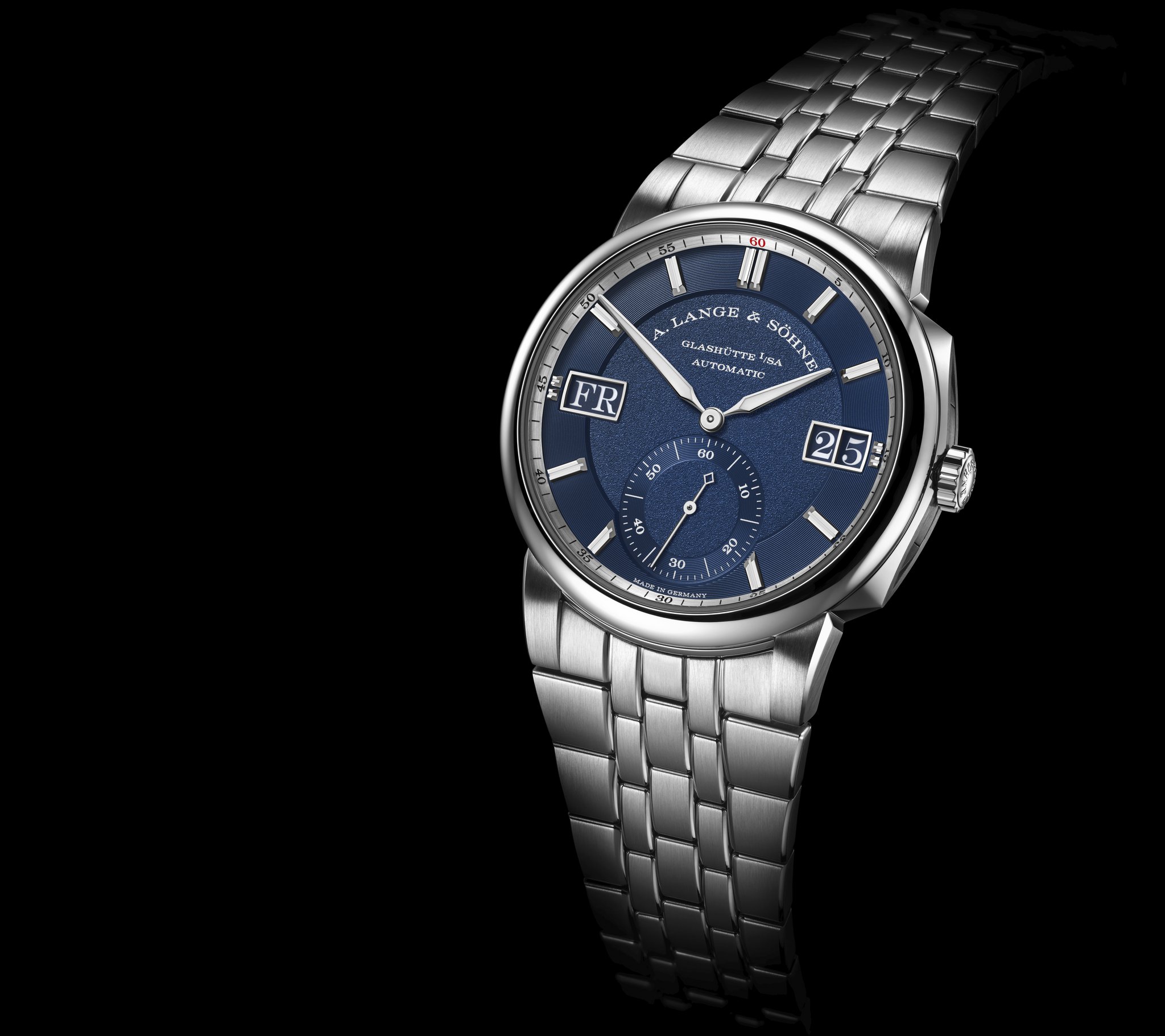

The ODYSSEUS is a sporty-elegant watch for people who admire fine watchmaking but live active lives. The prominent design of the stainless-steel case with a diameter of 40.5 millimetres and a height of 11.1 millimetres, featuring an integrated stainless-steel bracelet, embraces traditional brand elements and reinterprets them. This applies particularly to the sculpted, slightly cantilevered middle band of the three-part case. Its surfaces are decorated with a satin contour finish and the edges are emphasised with a chamfer. The combination of brushed surfaces and chamfered edges is echoed on the lugs and links of the massive stainless-steel bracelet. Specially sealed, tapered buttons for correcting the date and the day of the week are arranged at 2 and 4 o’clock.

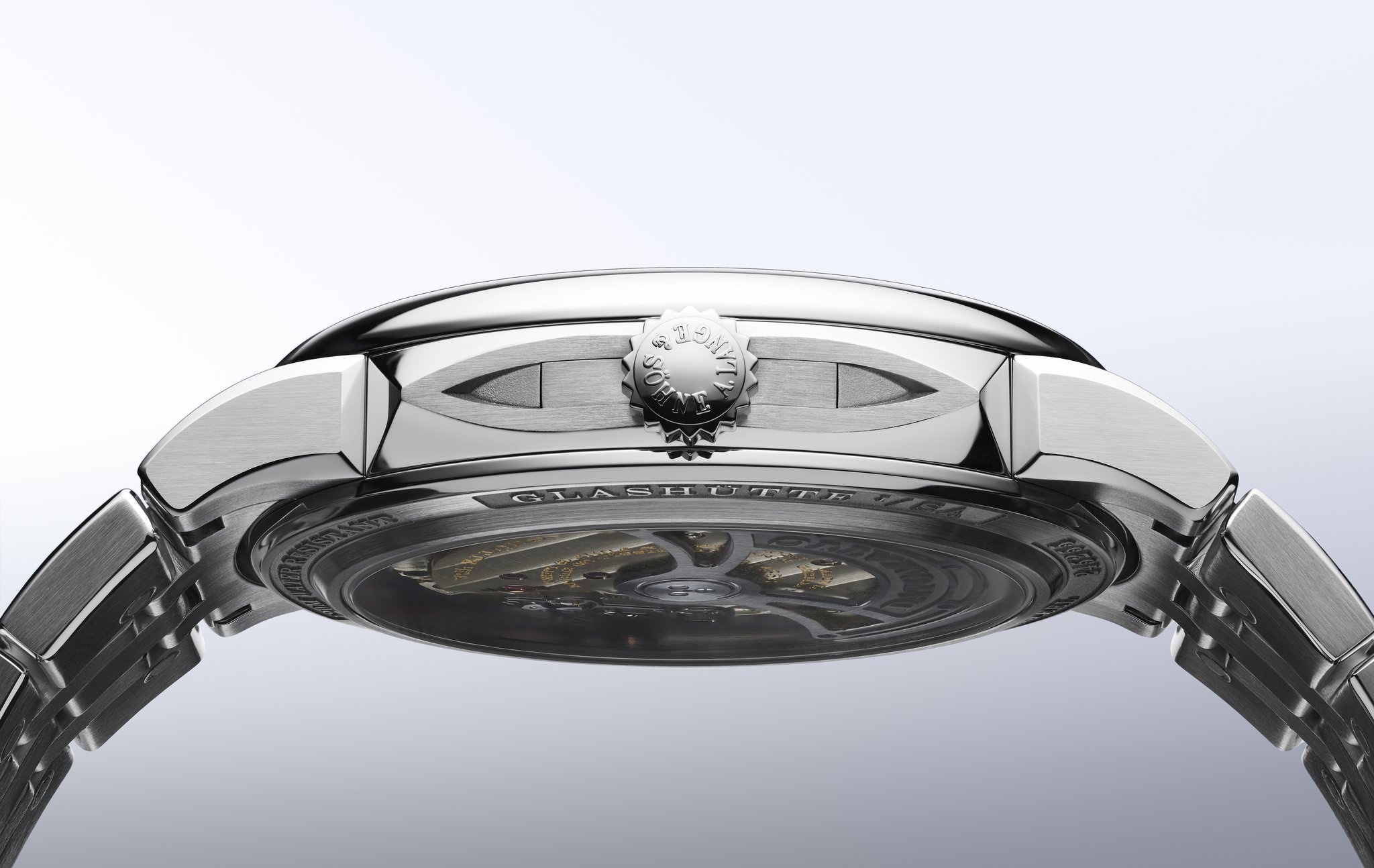

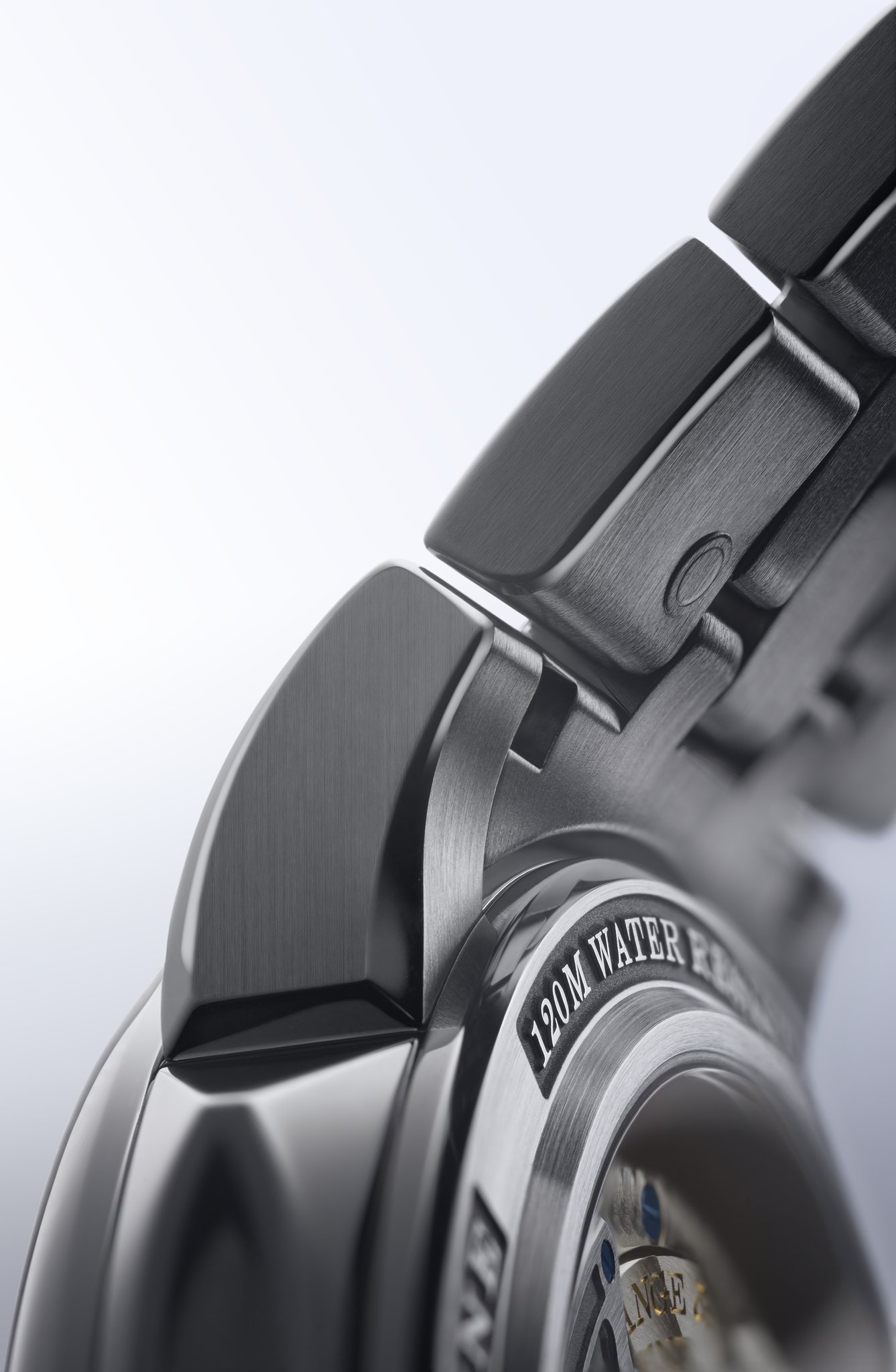

The ODYSSEUS is the first Lange watch with a water-resistant case and a screw-down crown, exposed to a test pressure of 12 bar.
Today, A. Lange & Söhne has five watch families: LANGE 1, SAXONIA, 1815, RICHARD LANGE and ZEITWERK. The ODYSSEUS is a new face that introduces a sixth watch family. And as usual at Lange, it is endowed not only with a distinctive design but also with a newly developed movement.
Date and day-of-week display

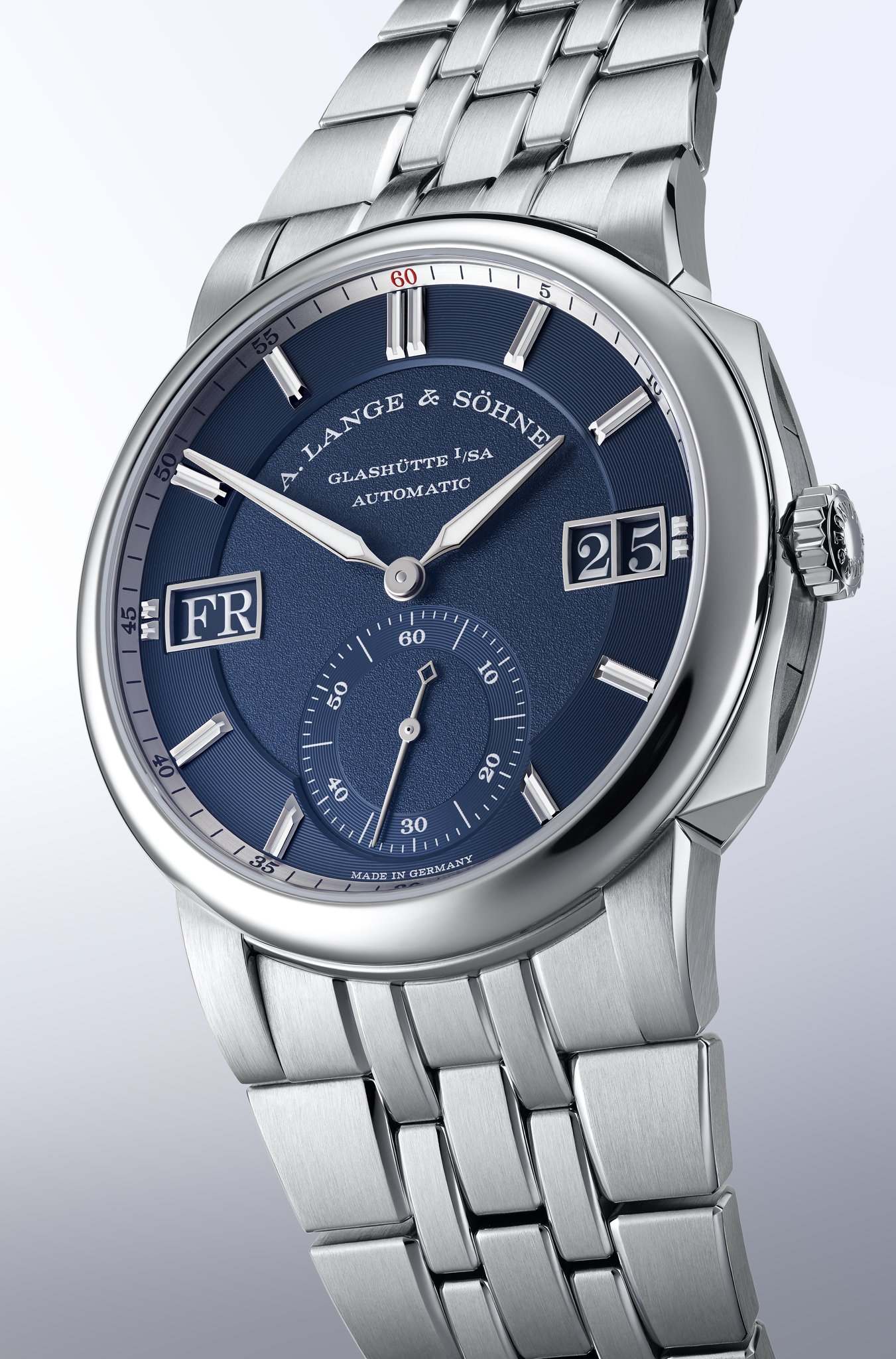

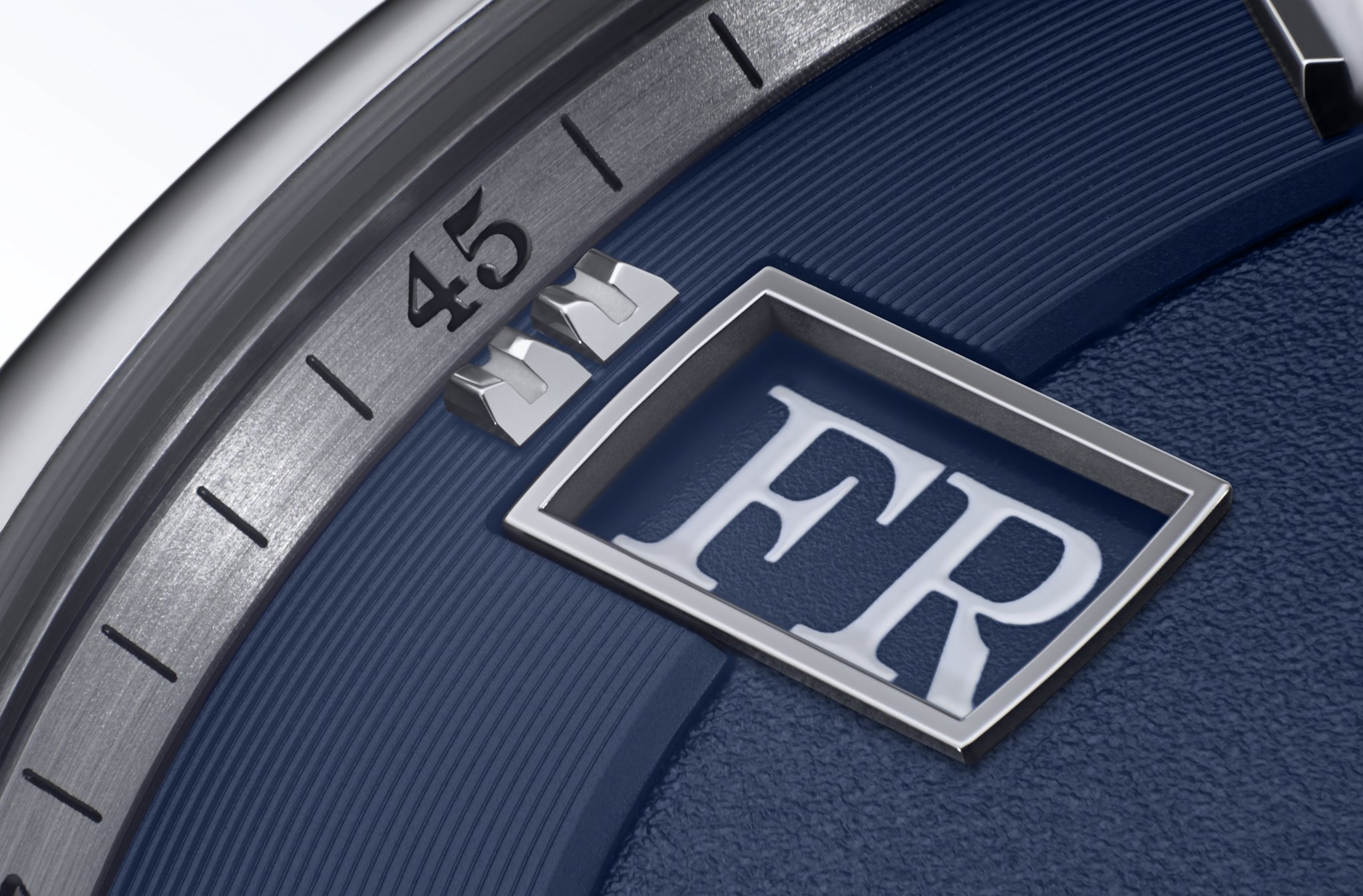

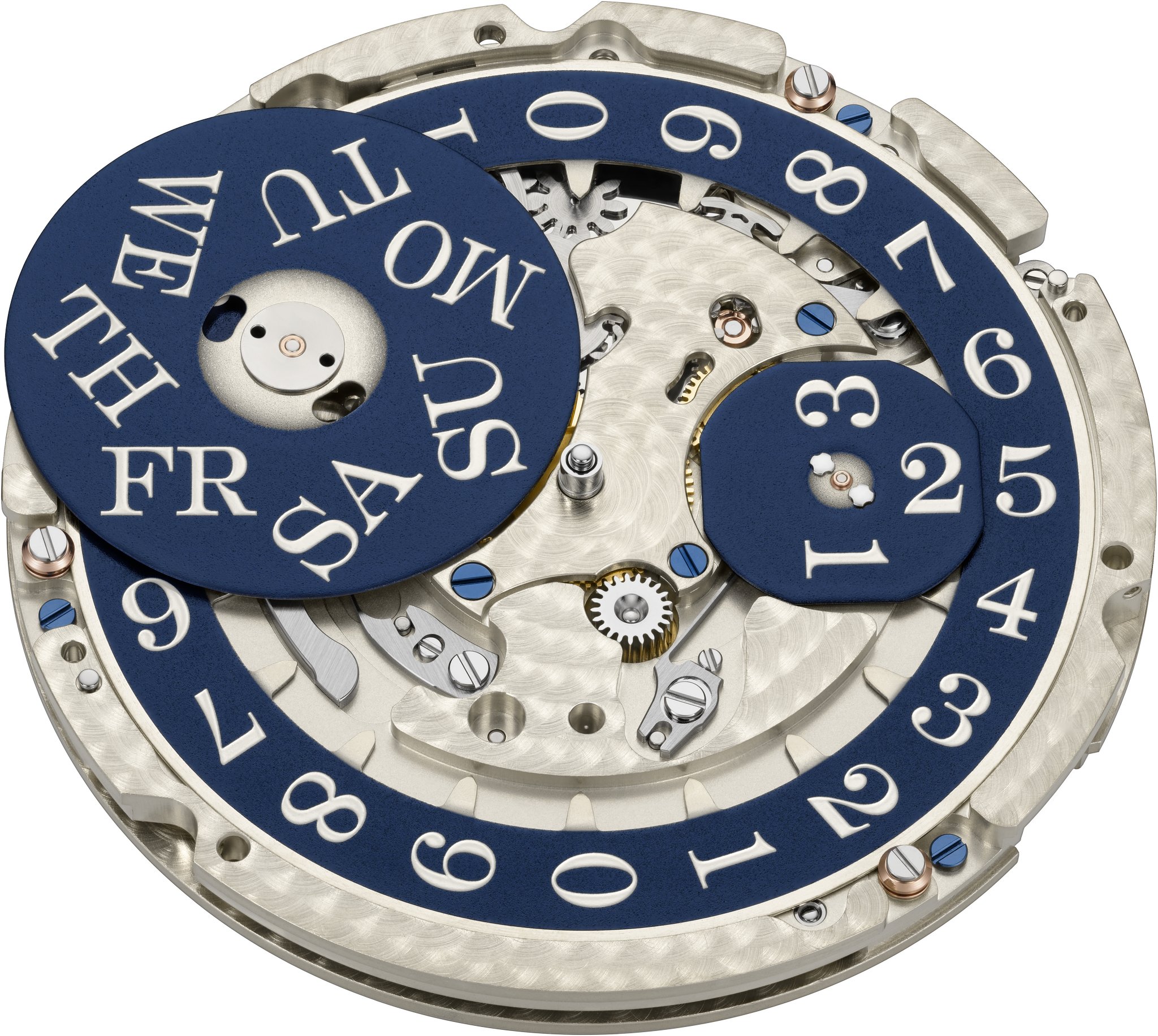

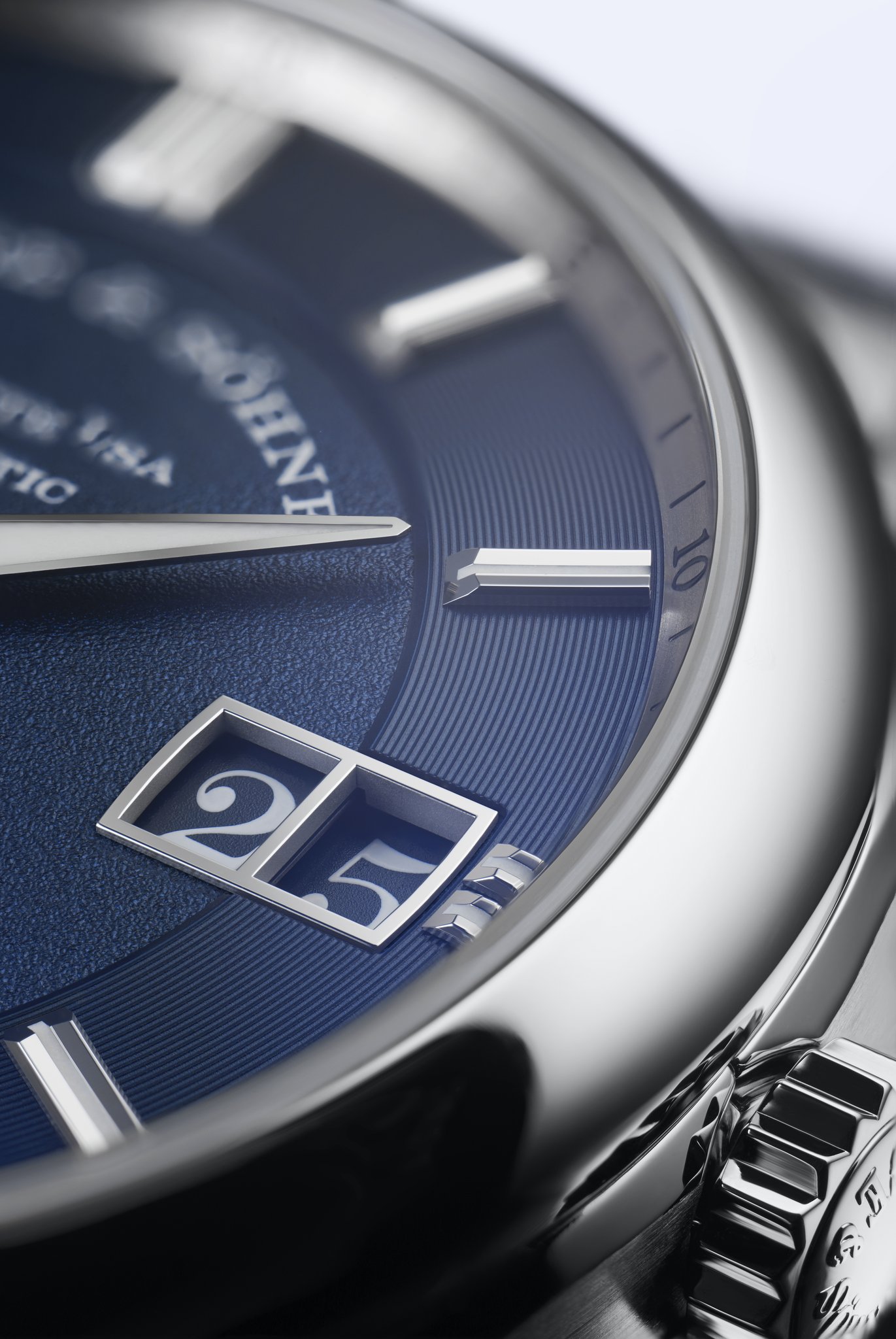

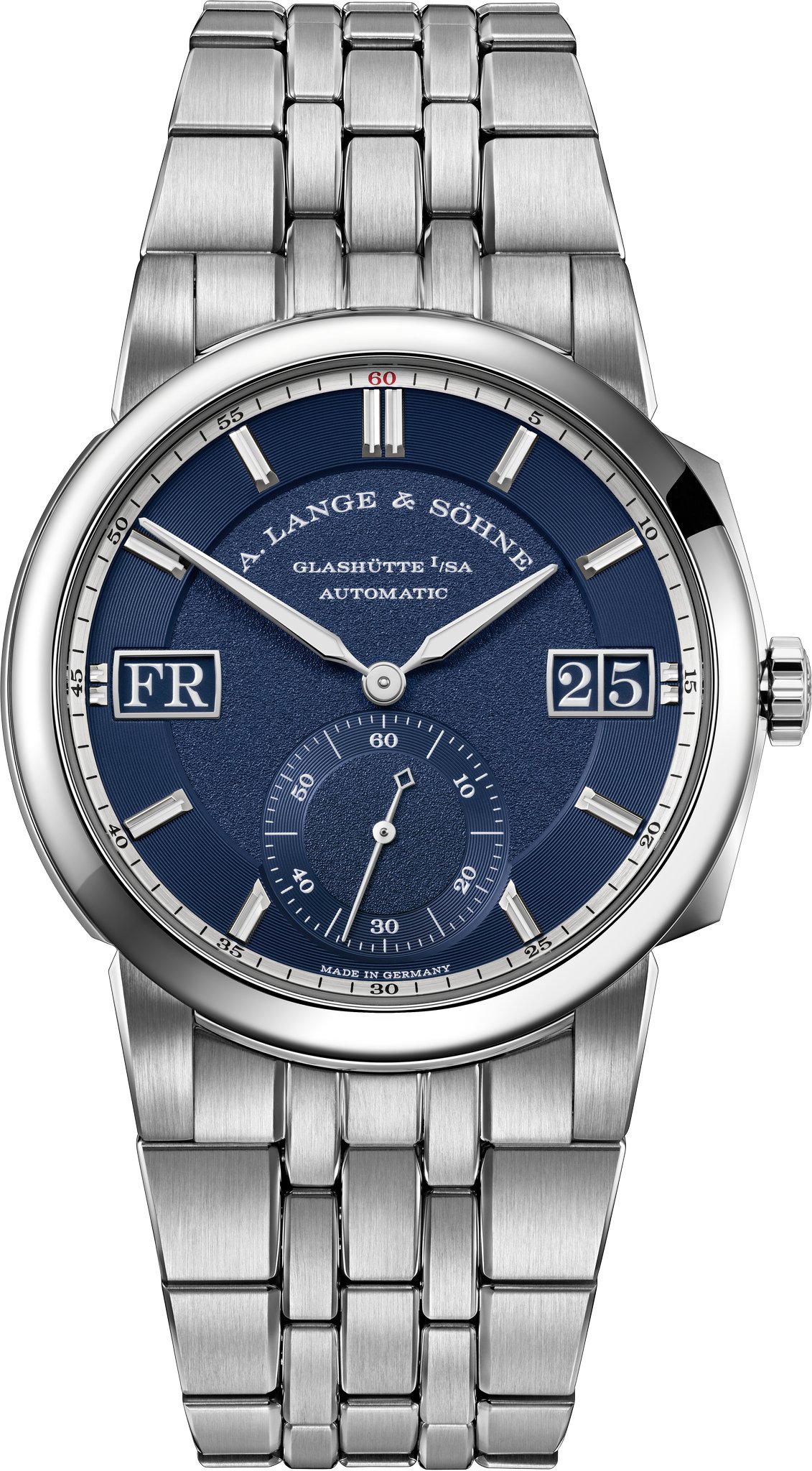

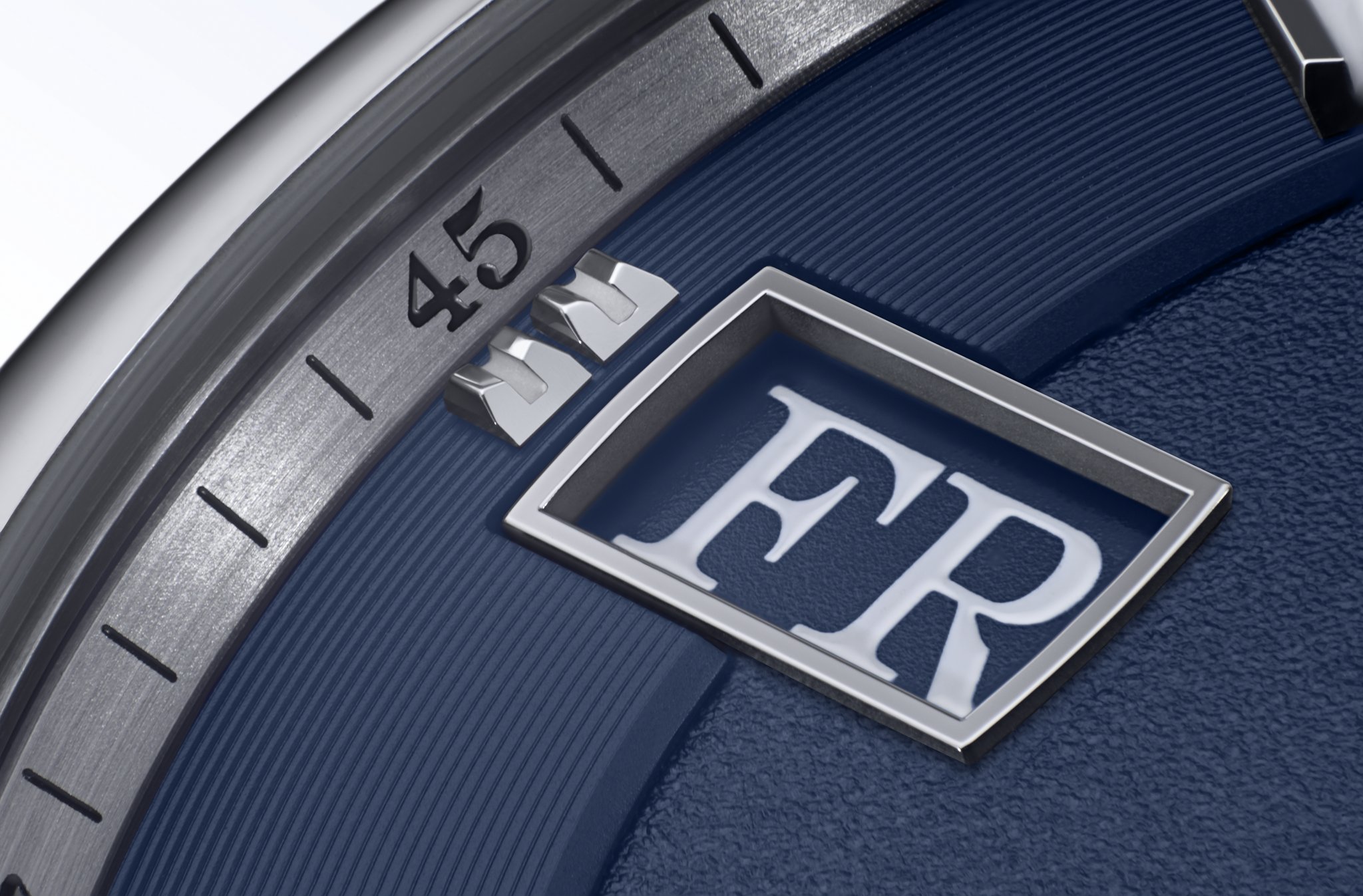

What first meets the eye on the dark-blue dial is the day-of-week and date display. Located on the right, the Lange outsize date in the classic double aperture is complemented with an equally large day-of-week display on the left. The outer verticals of the frames echo the curvature of the bezel. The typical Lange font is used for both displays, though here, the numerals and letters are white against a blue background. The newly developed mechanism consists of 99 individual parts.
Three-dimensional dial

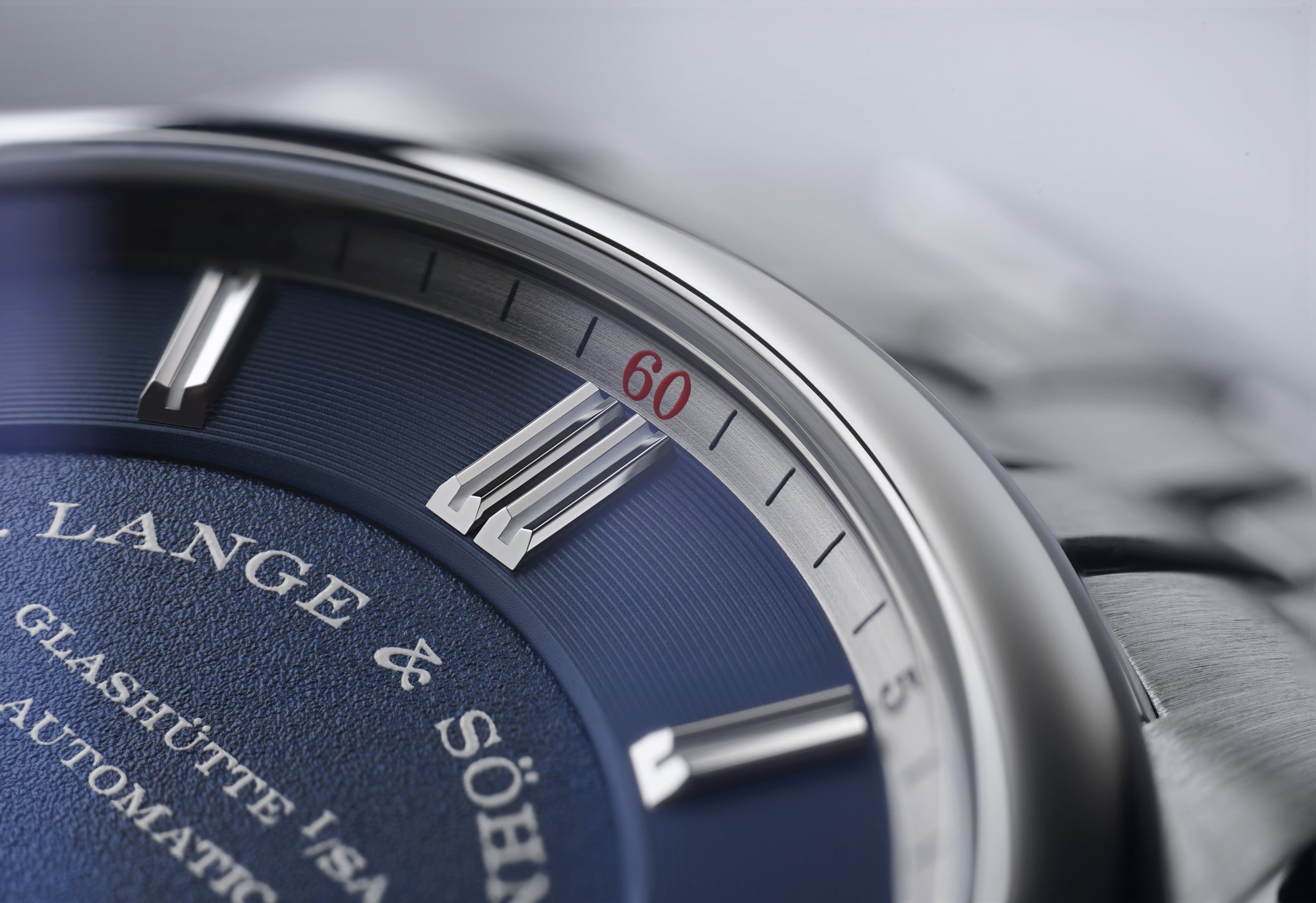

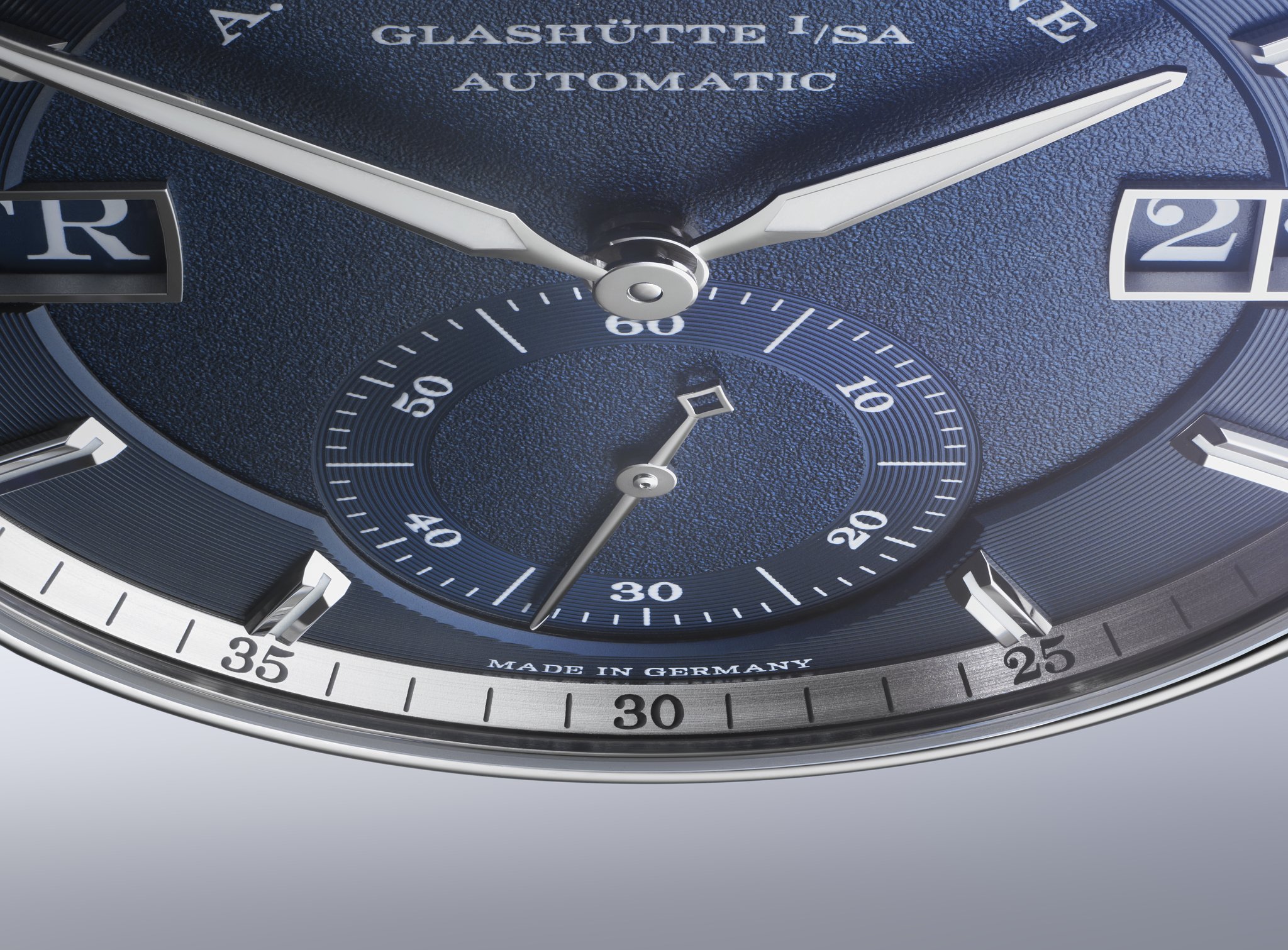

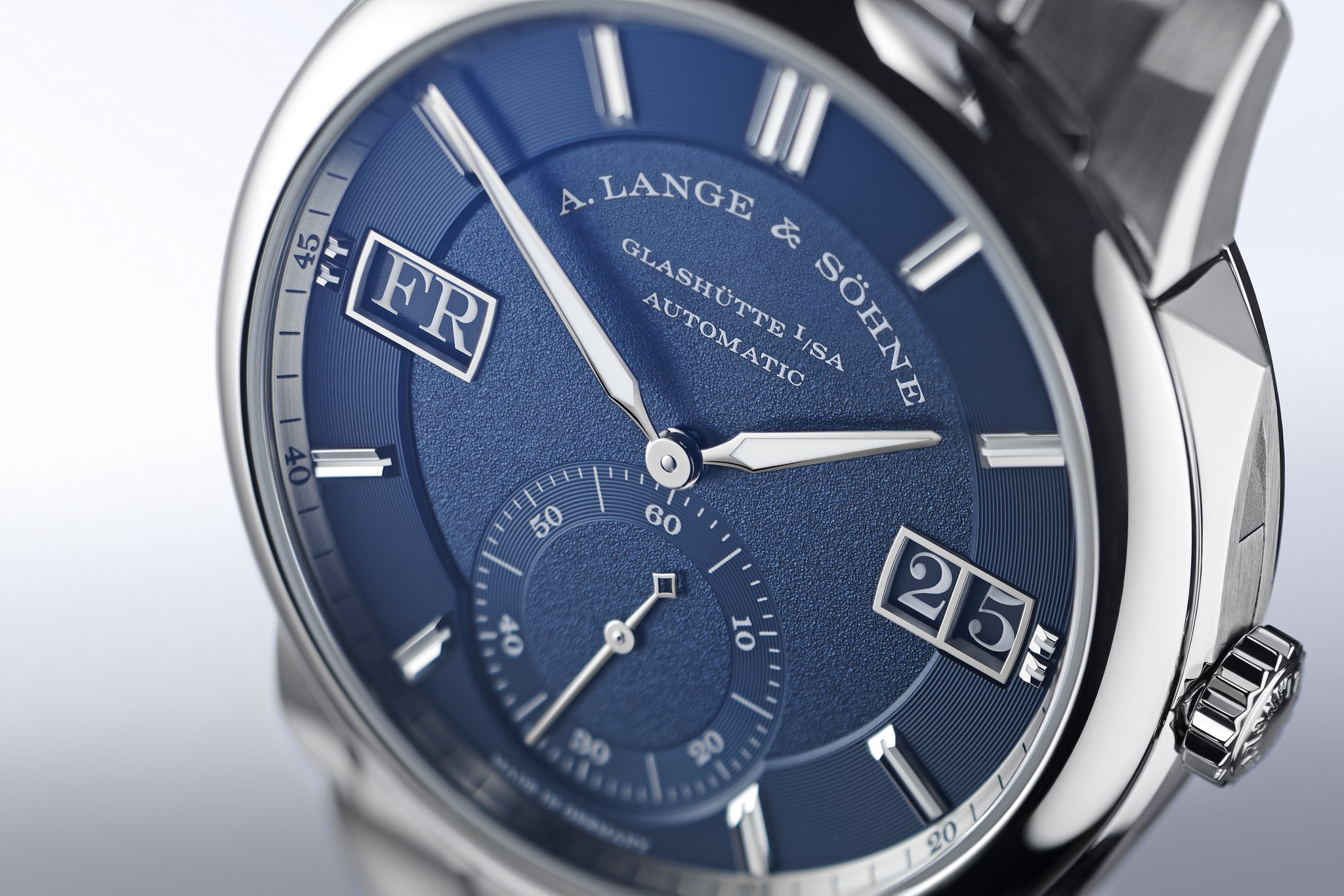

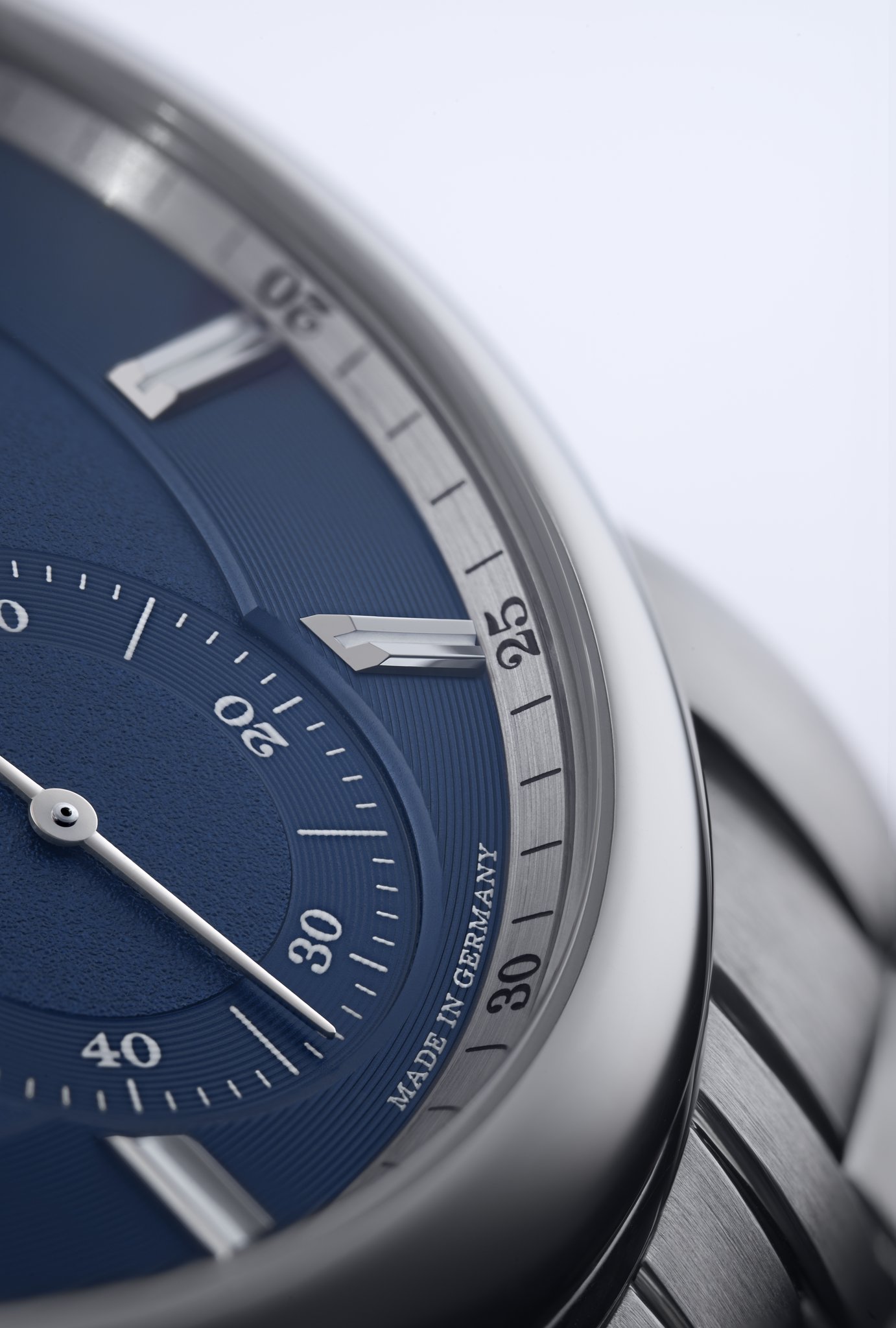

The dial is made of brass and has several levels with different surfaces. Just like the outer scale of the subsidiary seconds dial, the notched baton appliques made of white gold lie above concen-tric lines, a technique called azurage. They con-trast against the grained inner surfaces of the main and subsidiary dial. A bevelled, argenté-coloured flange ring with a printed minute scale frames the dial. The number 60, printed in red at 12 o’clock, provides a colourful accent. In the ODYSSEUS, the brand-typical lancet-shaped hands for hours and minutes are more prominent than in other watches of the manufactory. Just like the inner surfaces of the baton appliques, they are luminous.
Adjustable steel bracelet

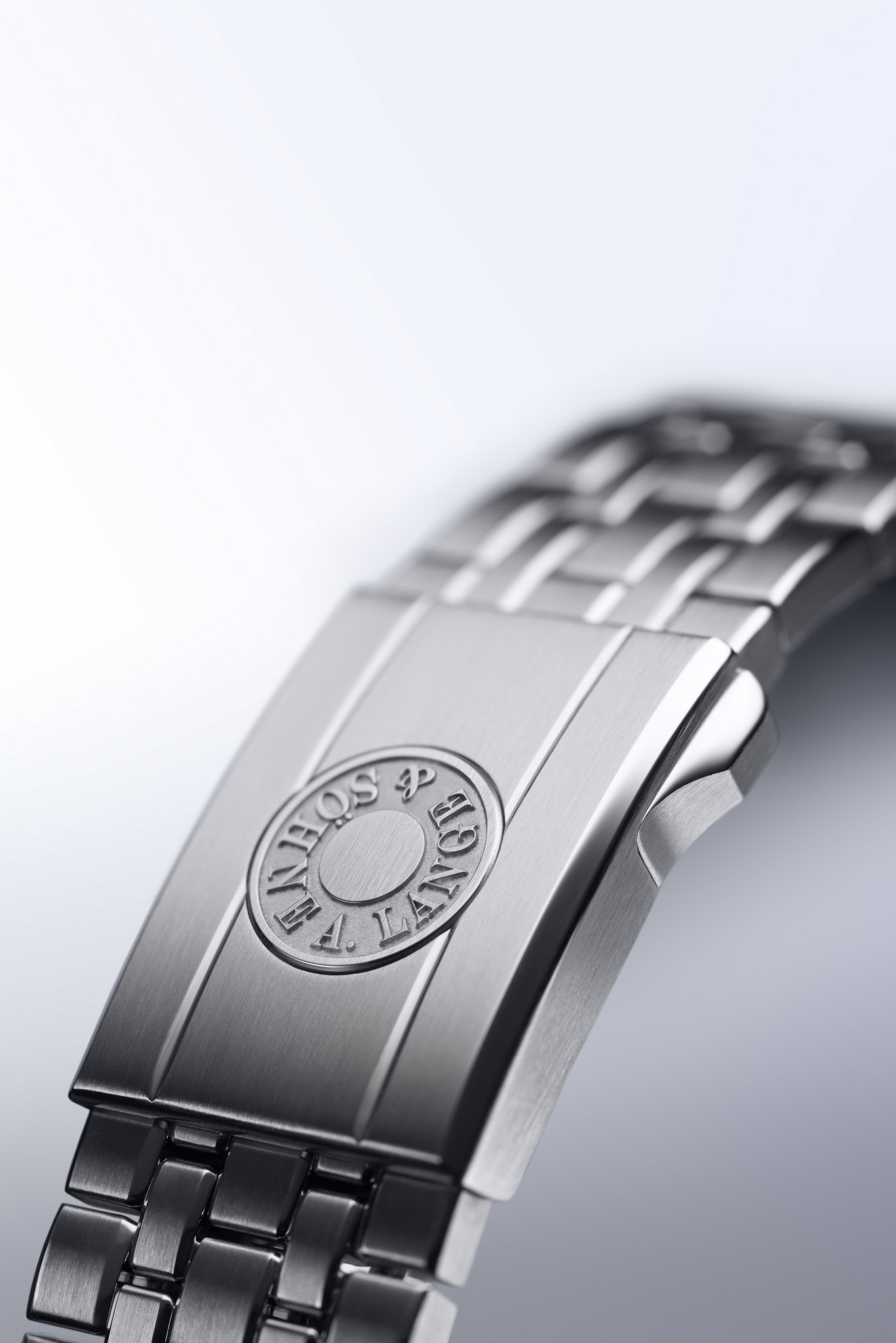

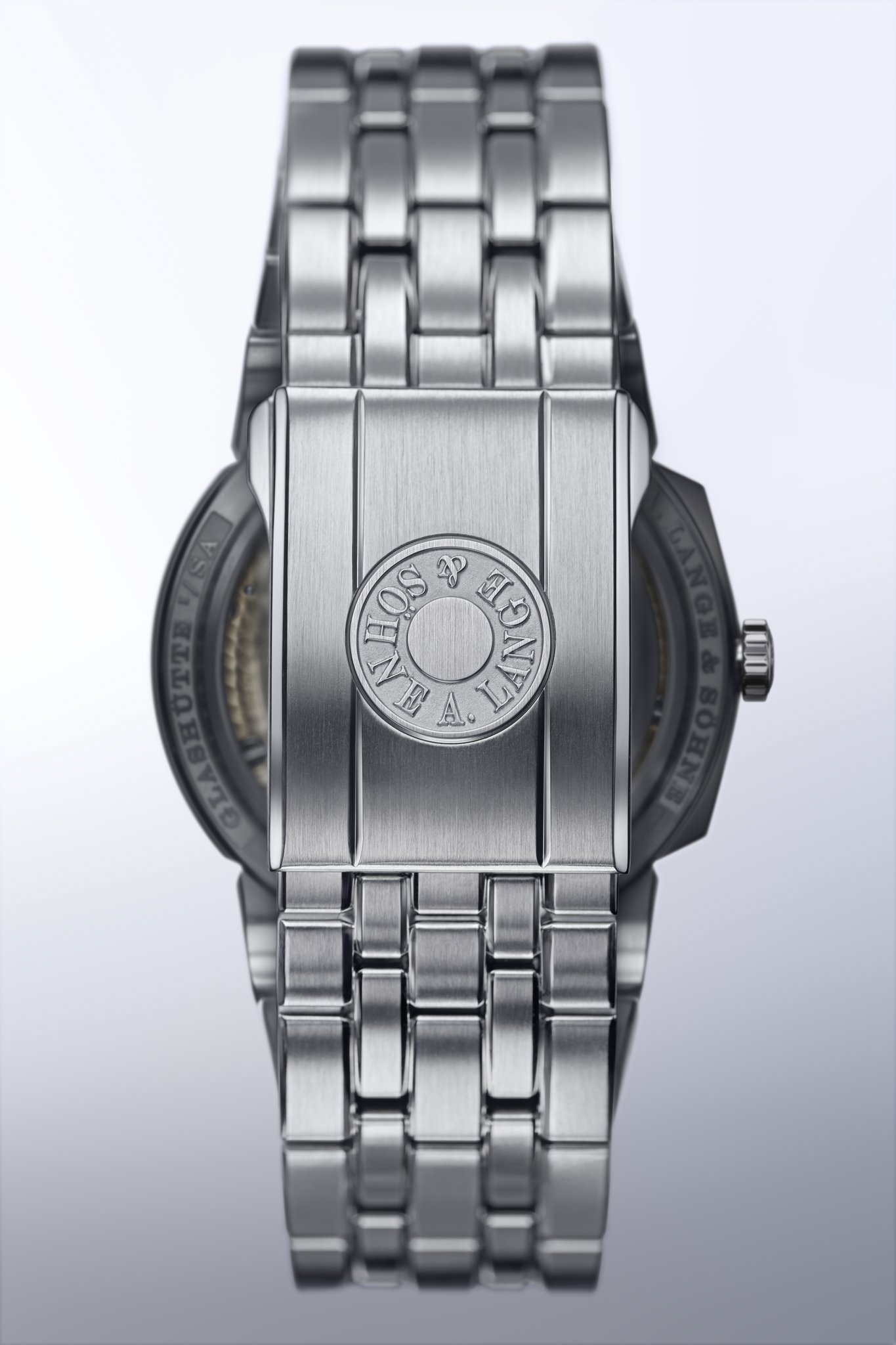

The stainless-steel bracelet is eminently comfortable to wear. Its length can be adjusted in small steps up to 7 millimetres thanks to a safety deployant buckle. By pressing the pusher embossed with the Lange signature the bracelet can be pulled or pushed to adjust the desired length. It is not necessary to open the buckle. If required, the bracelet can also be extended by adding further links.
Movement for an active lifestyle

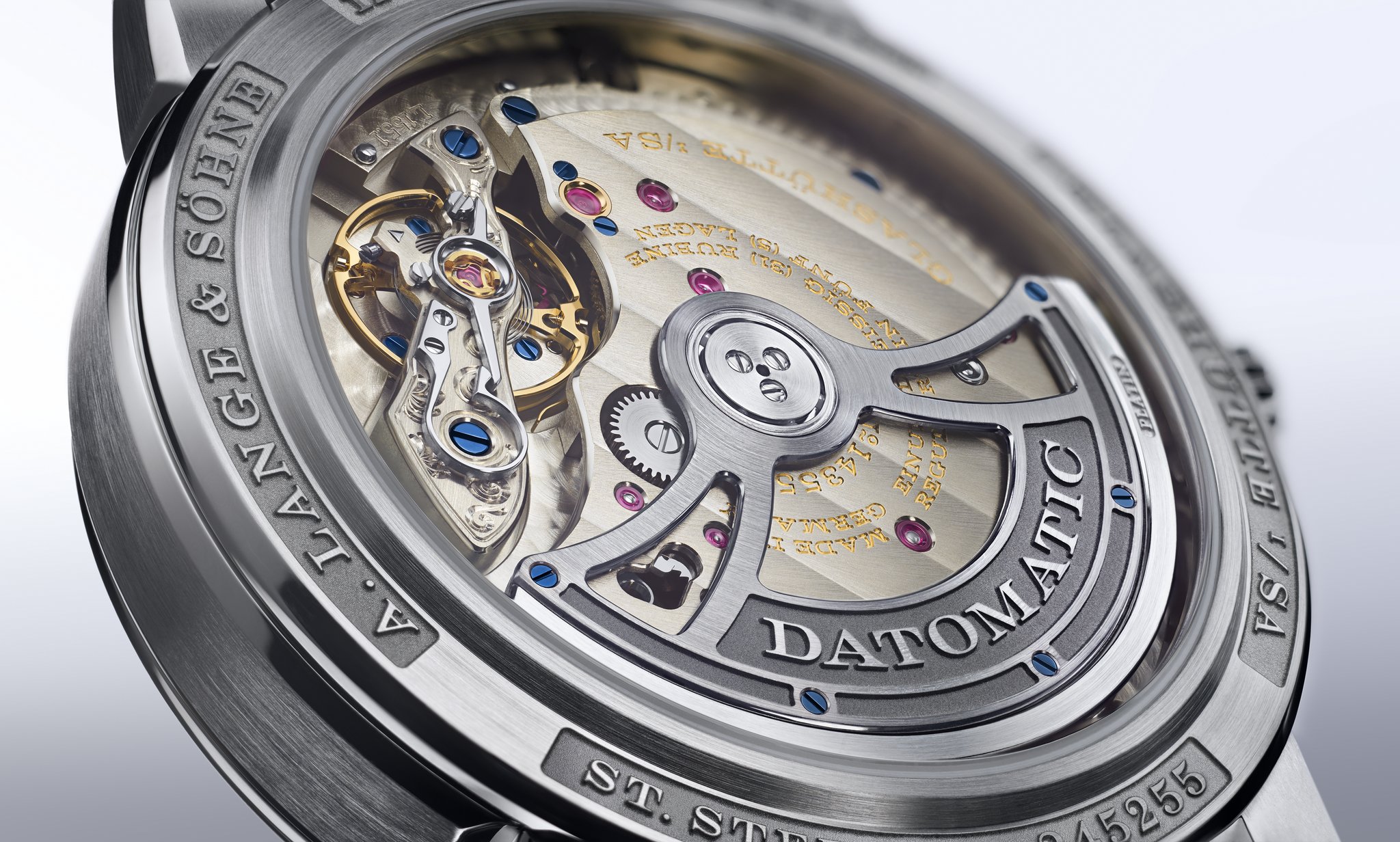

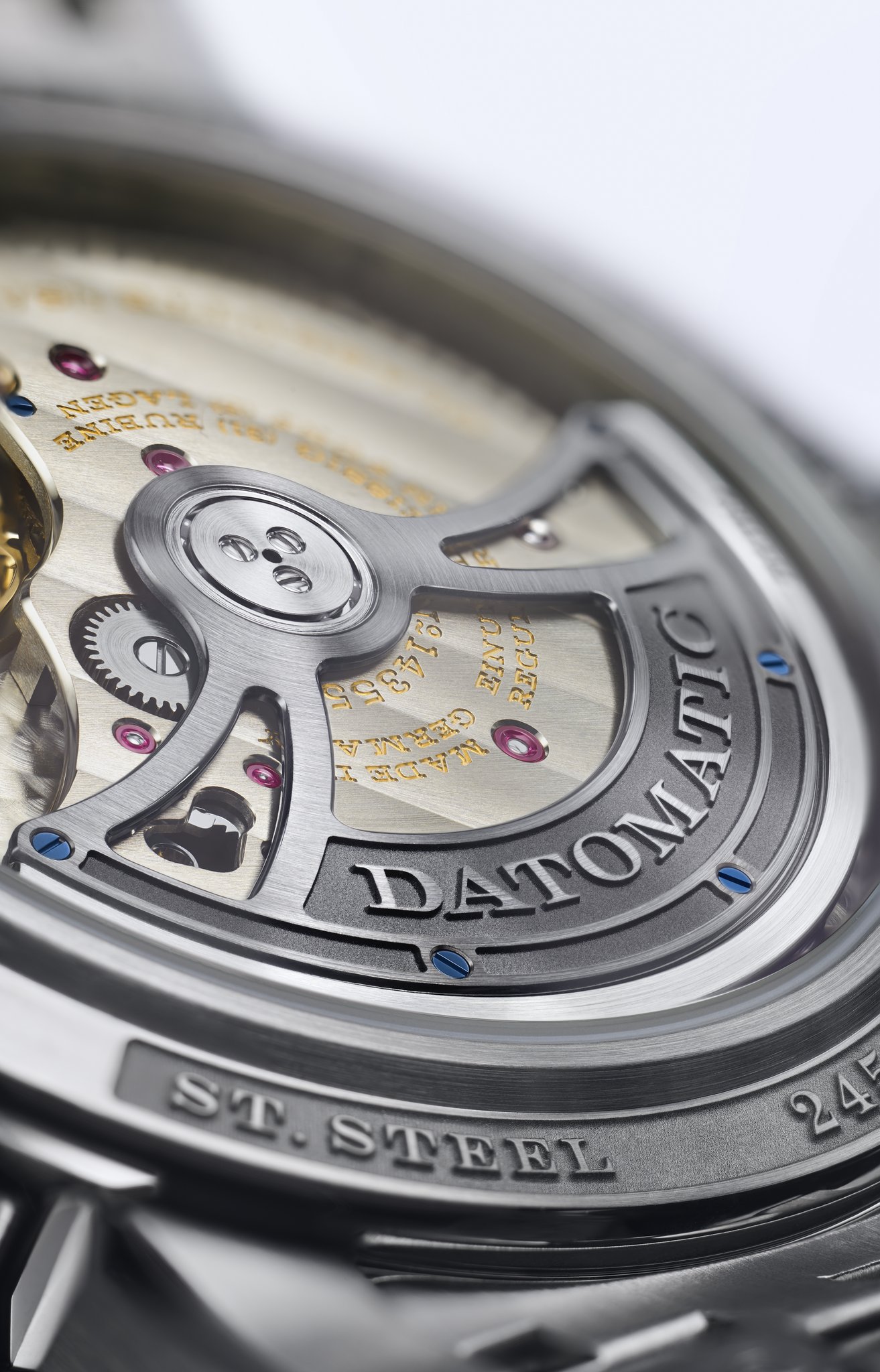

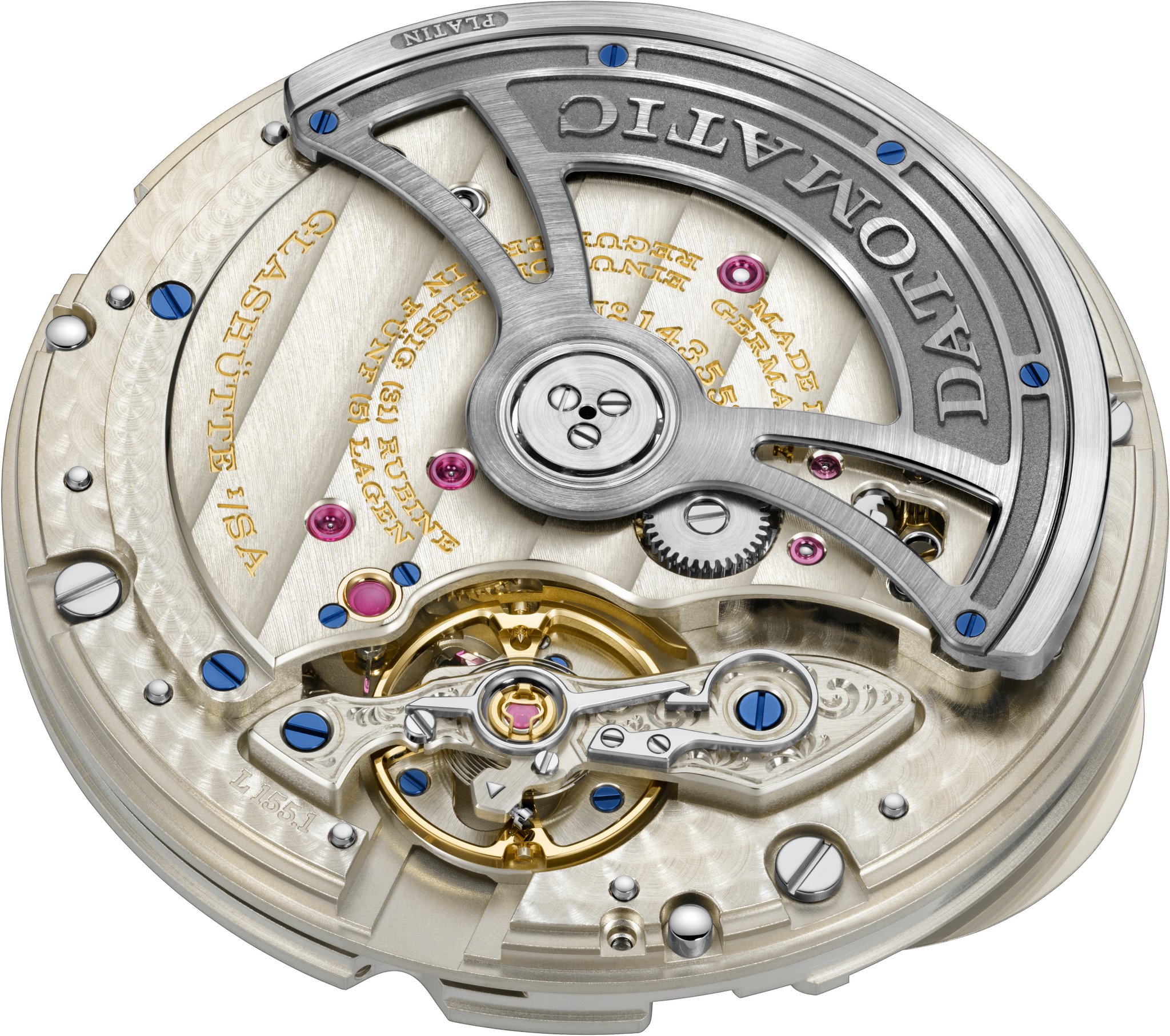

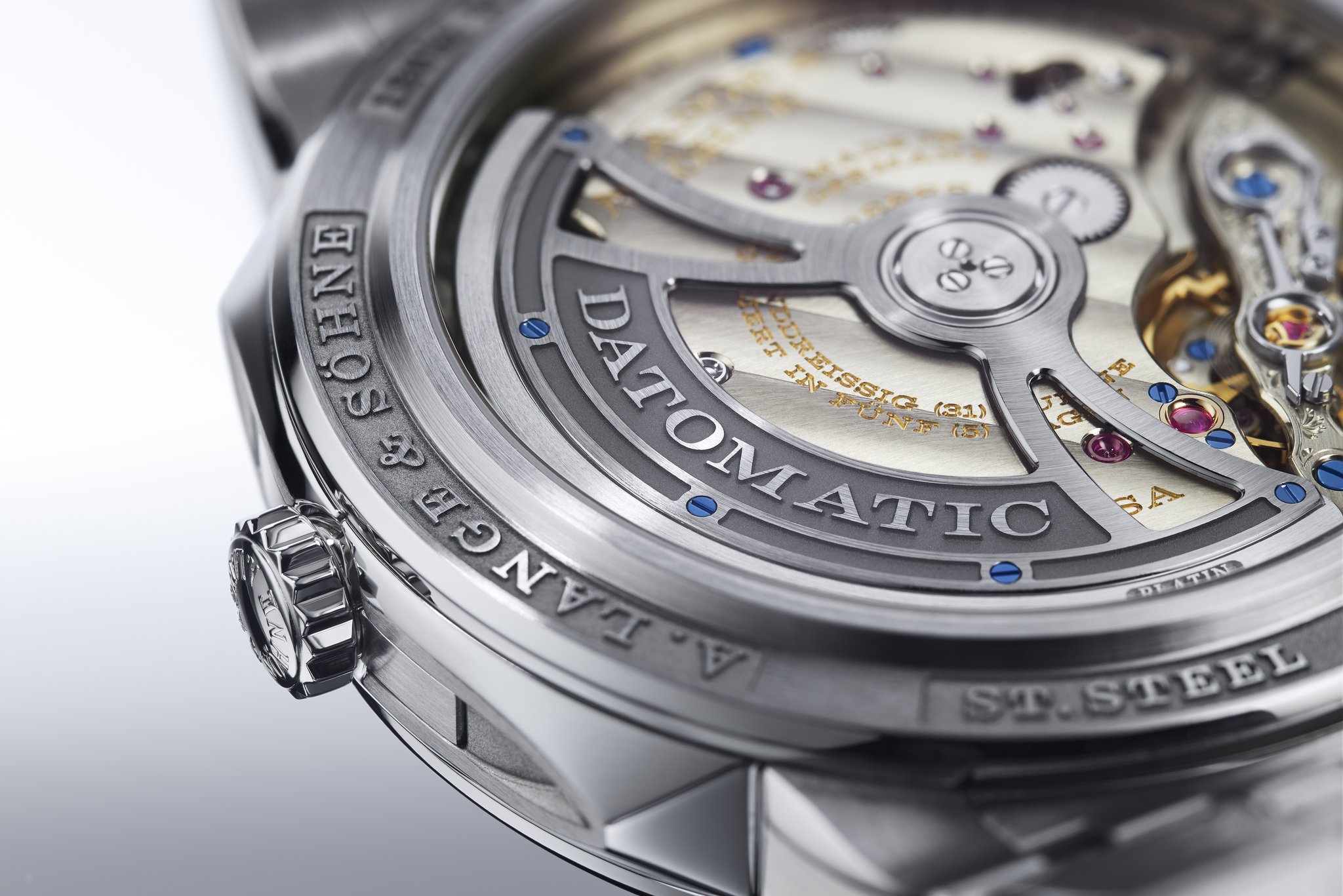

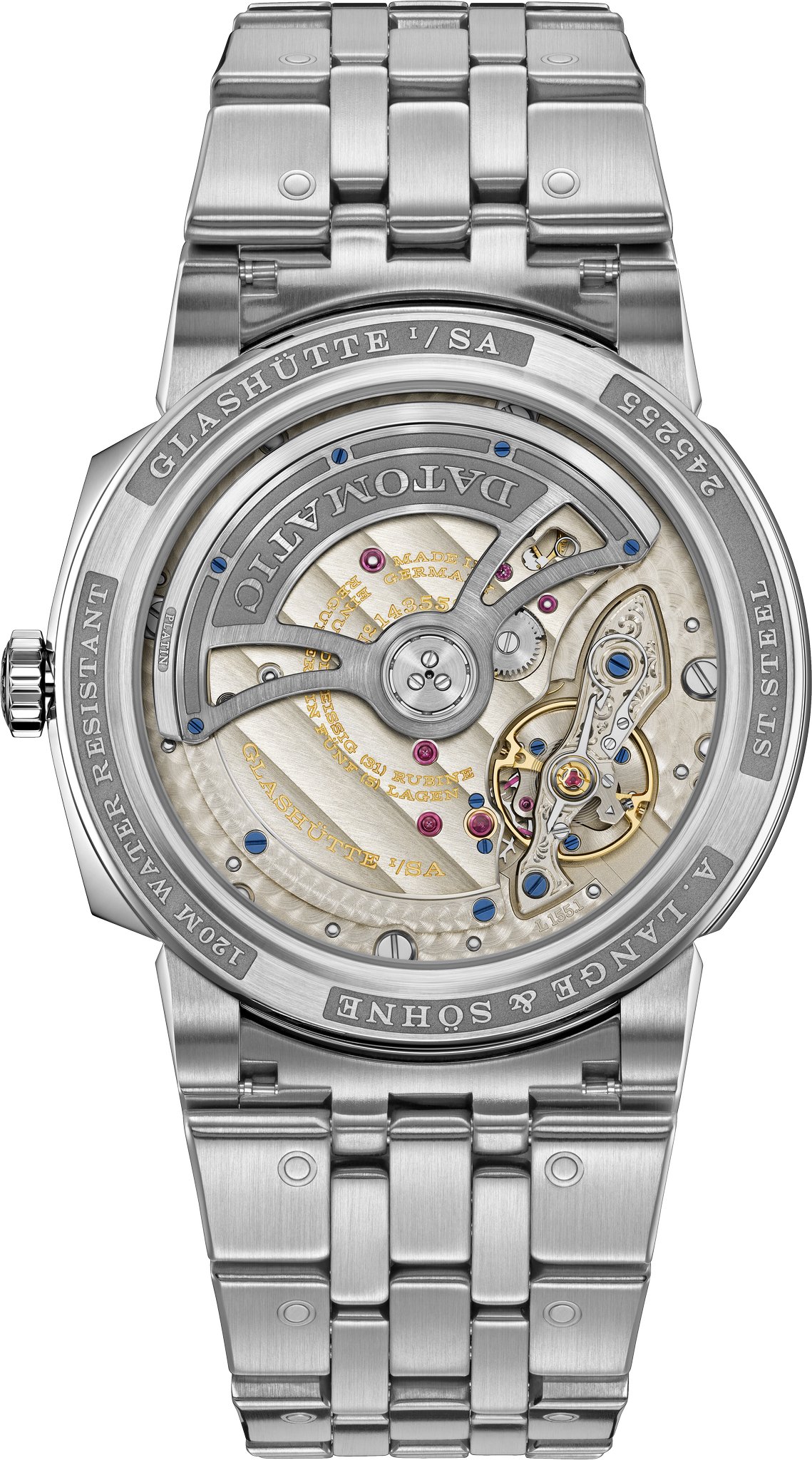

For the ODYSSEUS, A. Lange & Söhne developed the new L155.1 DATOMATIC manufacture calibre. The name DATOMATIC visible on the rotor stands for the date mechanism combined with automatic winding. With a diameter of 32.9 millimetres, the movement – visible through the sapphire-crystal caseback – completely fills the case. It features a unidirectionally winding central rotor with a centrifugal mass in platinum. Thanks to the skeletonisation of the rotor further details of the manually executed, lavish finissage of the movement can be observed.
New escapement
When fully wound, the mainspring barrel delivers a maximum power reserve of 50 hours. To guarantee high rate accuracy regardless of external factors, the new self-winding calibre operates at a frequency of 28,800 semi-oscillations per hour (4 hertz). The newly designed balance is regulated with four countersunk poising screws that are flush with the outside of the balance-wheel rim. This design reduces turbulence despite the higher frequency. Together with the freely oscillating balance spring made in-house, the minimised air resistance has a positive impact on the movement’s rate accuracy and energy efficiency.
Bridge instead of balance cock

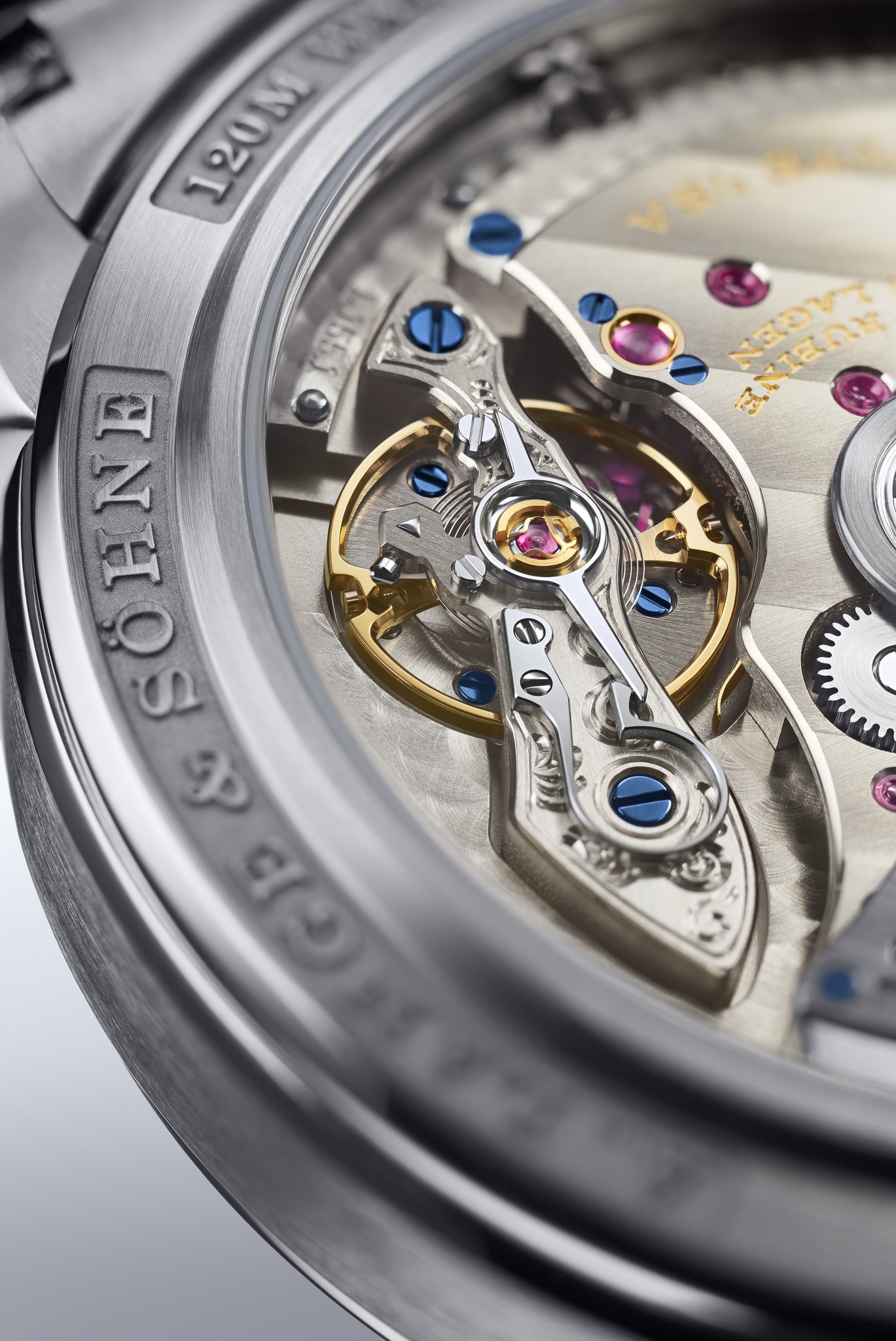

The oscillation system of the ODYSSEUS is held by a balance wheel bridge secured at two points. It is manually engraved with a wave motif. Other movement decorations also express the concept of com-bining traditional facets with new ones. All frame parts of the calibre L155.1 DATOMATIC are made of German silver. Additionally, elements of the rotor were black-rhodiumed. In accordance with the

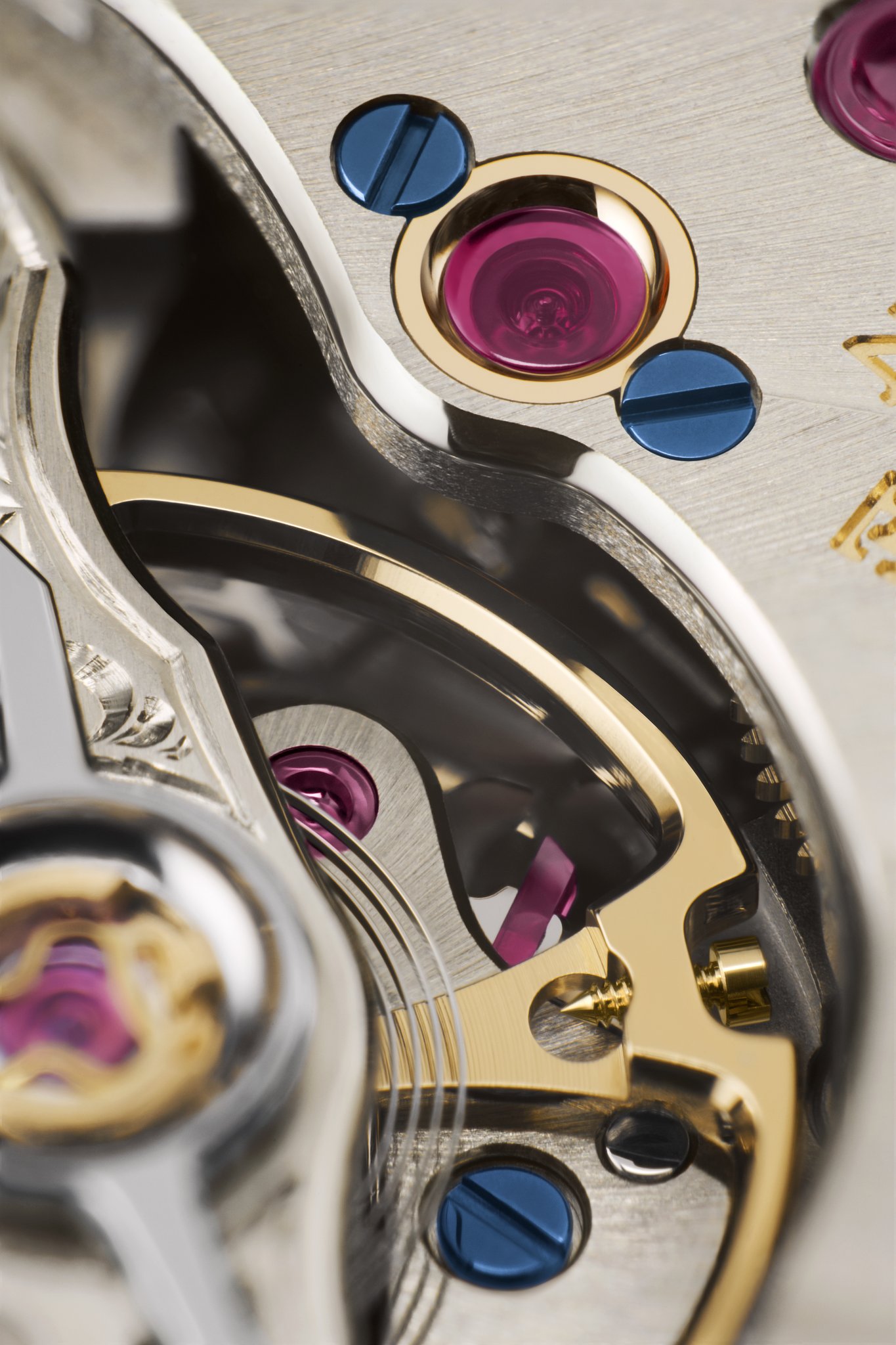

A. Lange & Söhne philosophy, the entire movement is elaborately finished by hand and assembled twice. A further typical Lange hallmark, a screwed gold chaton secures the upper bearing jewel of the escape-wheel arbor. It also marks the position of the escapement and places a traditional accent, right there where the heart of the watch beats.
A. Lange & Söhne ODYSSEUS Technical Specifications
ODYSSEUS Ref. 363.179 – 28,000€ (including VAT)
Movement
Lange manufacture calibre L155.1 DATOMATIC, self-wind-ing, crafted to the most exacting Lange quality standards, decorated and assembled by hand; precision-adjusted in five positions; unidirectionally winding central rotor with platinum centrifugal mass; balance bridge engraved by hand
Movement parts
312
Jewels
31
Screwed gold chatons
1
Escapement
Lever escapement
Oscillation system
Shock-resistant balance with four poising screws; balance spring manufactured in-house with a frequency of 28,800 semi-oscillations per hour (4 hertz), precision beat adjustment with cam and whiplash spring
Power reserve
50 hours when fully wound
Functions
Time indicated in hours, minutes, and subsidiary seconds dial with stop seconds; day-of-week and date displays
Operating elements
Screw-down crown for winding the watch and setting the time; two buttons for correcting the day of week and date
Case dimensions
Diameter: 40.5 millimetres; height: 11.1 millimetres
Movement dimensions
Diameter: 32.9 millimetres; height: 6.2 millimetres
Case
Stainless steel
Water resistance
Up to 12 bar (120 metres)
Dial
Brass, dark-blue
Hands
White gold, hours and minutes luminous
Glass and caseback
Sapphire crystal (Mohs hardness 9)
Bracelet
Stainless steel
Buckle
Safety deployant buckle with precision adjustment mechanism for adjusting the length
