It is a rare material in Haute Horlogerie. An ancient technique that involves a savoir-faire as challenging as it is subtle. It is called Mokume-gane in Japan, where the method has been used for making katana sword blades since the 17th century. In the heart of the forge, the hammering and folding of layer upon layer of titanium is a craft reserved for the best. Three times as hard as steel, titanium is also wrought at much higher temperatures, between 1200 and 1400 degrees Celsius. The hues obtained through blueing-by-hand over an open flame are unique to each watch. The buyer is welcome to attend this finishing stage and choose the intensity of the colour effects – GENUS GNS1.2 TD Ever-changing Hours and Hues .
After introducing a new way of looking at and telling time with orbital hours and minutes, which garnered the Mechanical Exception Prize at the most recent Grand Prix d’Horlogerie de Genève (GPHG), GENUS explores the world of metal artisanship. The GENUS GNS1.2 TD is carved from a block of Damascene Titanium, the work of expert metalsmithing. Thus, the complex representation of time in flux belonging to GENUS finds itself echoed by the moiré, undulating, changing appearance where colour nuances make each piece unique by the very nature of this craft. A fusion of ancestral technique and modern material, an association between creator and wearer – GENUS takes an approach to watchmaking that truly defies the conventional.
Thinking differently, combining creativity as well as singularity, leaving the beaten track, inventing instead of replicating, stretching the ingenious whilst ensuring precision, reliability, legibility and wearability: In 2019, GENUS opened the first chapter of its story with two remarkable timepieces, the GNS1.2 WG and the GNS1.2 RG. Ten years of research, two inventions and three years of development went into this watch. Two patents lay down the basic principles of the two innovative mechanisms that underpin this free-flowing time display.
One in rose gold, the other in white gold, both measuring 43 mm in diameter and 13.1 mm thick, featuring the calibre 160W-1.2 or 160R-1.2, a new movement consisting of 418 components, entirely created and manufactured by GENUS in their Geneva workshop. It is a movement characterised first and foremost by its novel complication for indicating time. No dial, no hands. GENUS quite simply invented an unprecedented way of telling time – the mechanism as dramatic performance.
The innovation behind this display complication and its underlying mechanism was imagined, technically, in a completely new and daring way. A new stone humbly brought to the edifice of Swiss horological heritage by the man who invented it, the Master watchmaker Sébastien Billières. An approach first rewarded by the recognition of his peers by the attribution of the prestigious and coveted Mechanical Exception Prize at the Grand Prix d’Horlogerie de Genève (GPHG) in 2019.
Twelve satellites, one for each hour. They make a complete revolution along the periphery of the movement, at the crystal’s edge, once every twelve hours. The fixed white arrow on the left, in front of which the satellites scroll, points to the current hour. To remain in the reading direction, the satellites re-orient themselves and pivot 90 degrees every 3 hours, i.e. four times. The hour numbers – moulded in SuperLuminova™ and affixed to the revolving time-indicating satellites – are the result of meticulous development and design.
Since the launch last year, the months have passed each other at a breath-taking pace, and nothing is the same anymore for the small, independent GENUS team – in much the same way that a GENUS watch is unlike any other existing timepiece.
A sentiment rendered even more concrete by the fact that in 2020, GENUS is presenting a new version of the GNS1.2 in a material virtually unheard of in watchmaking: damascene titanium.
It is a new chapter in the GENUS story, in more ways than one. The presentation of the new watch is also the occasion for announcing the digital certification of all its timepieces, an effective and modern means of combating counterfeiting and guaranteeing authenticity for the owner of the timepiece throughout its lifetime.
A Damascene moment

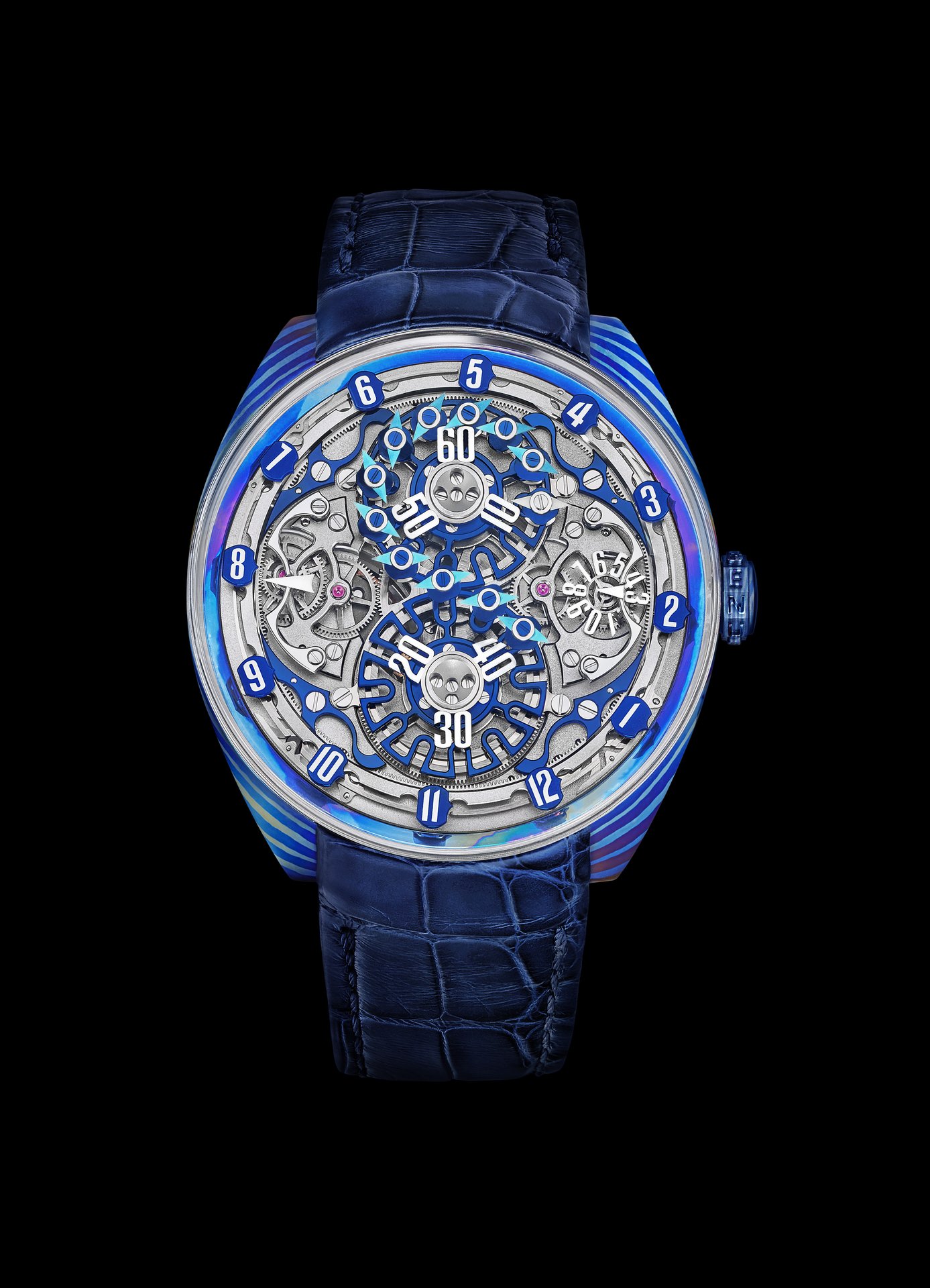

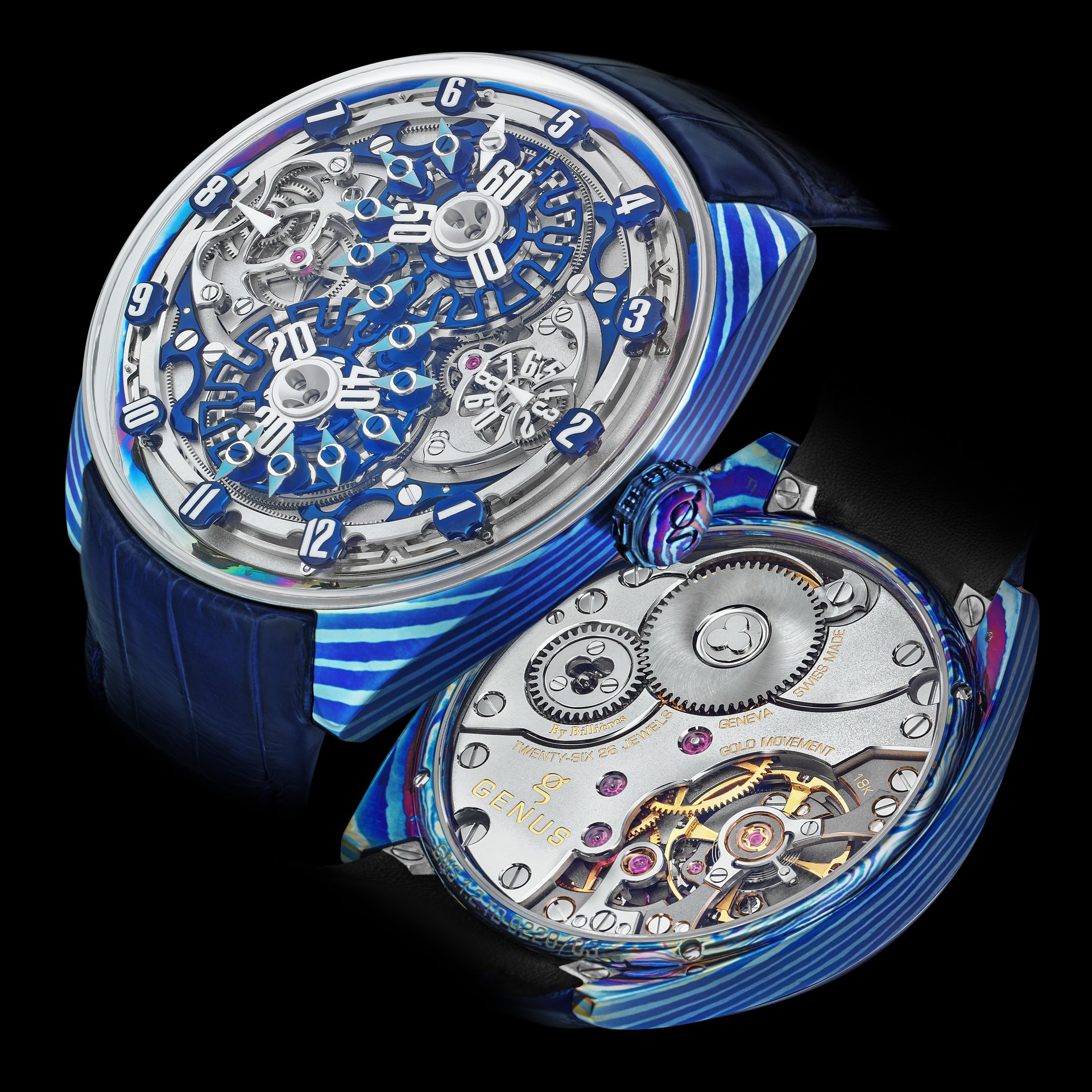

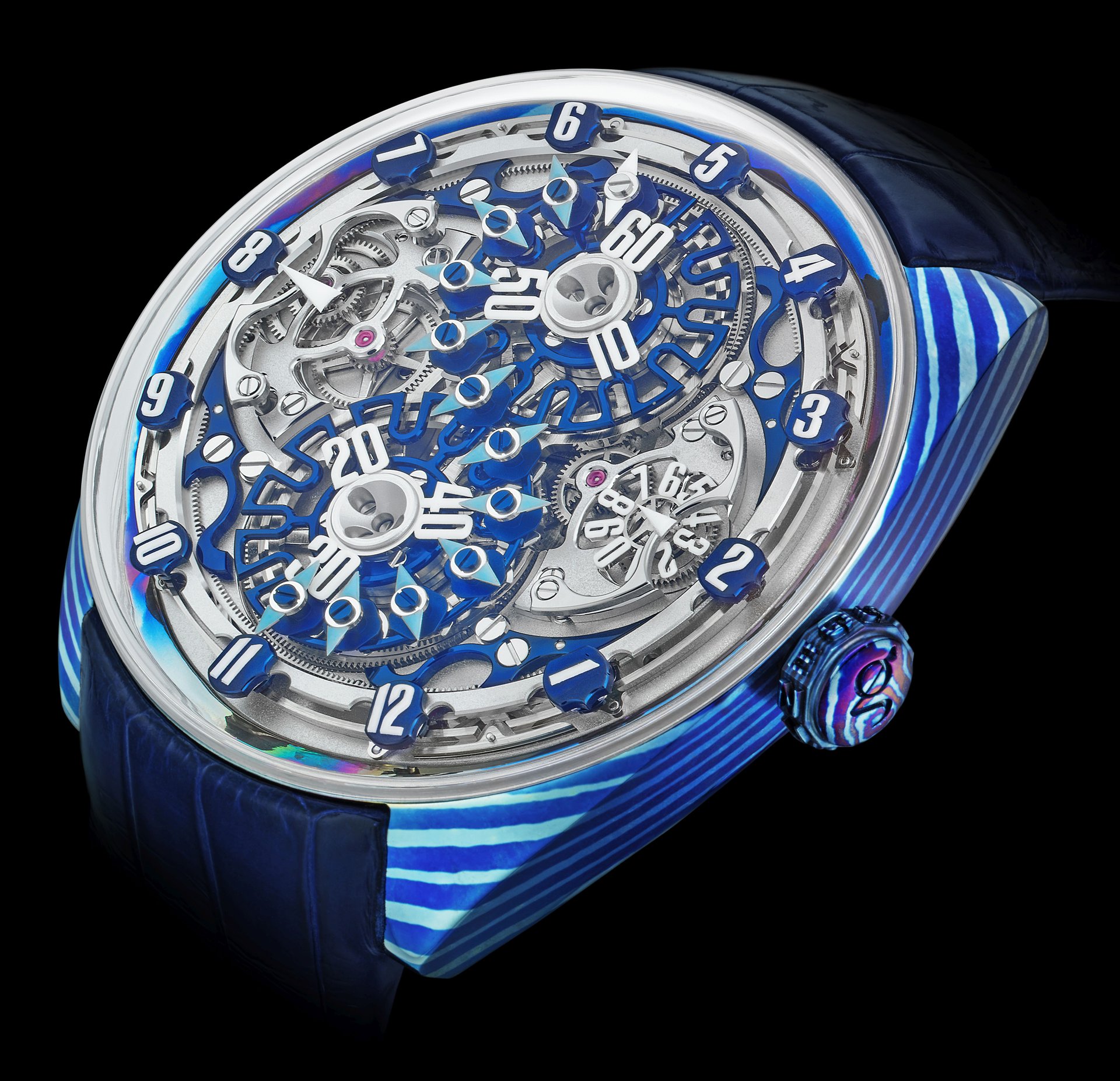

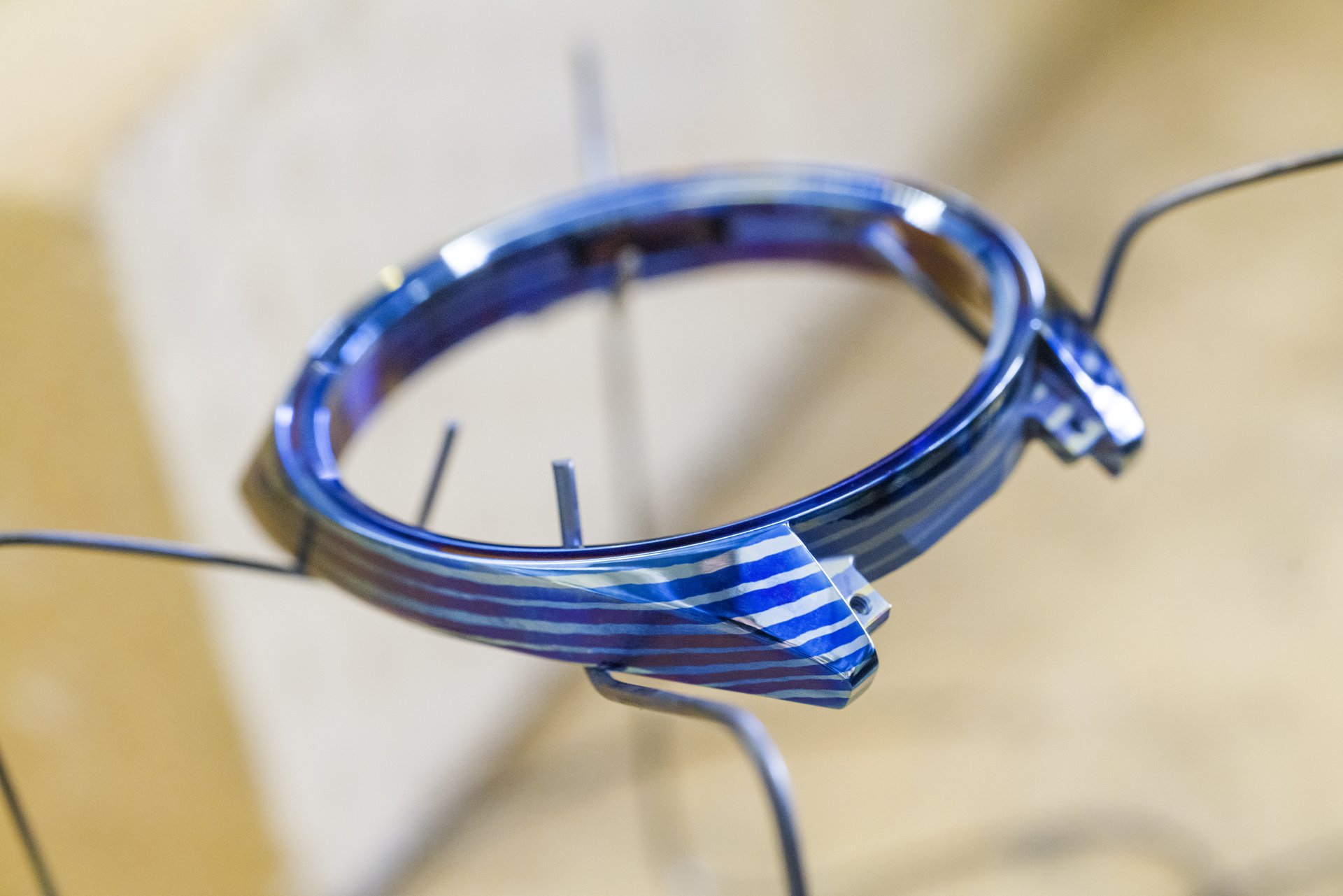

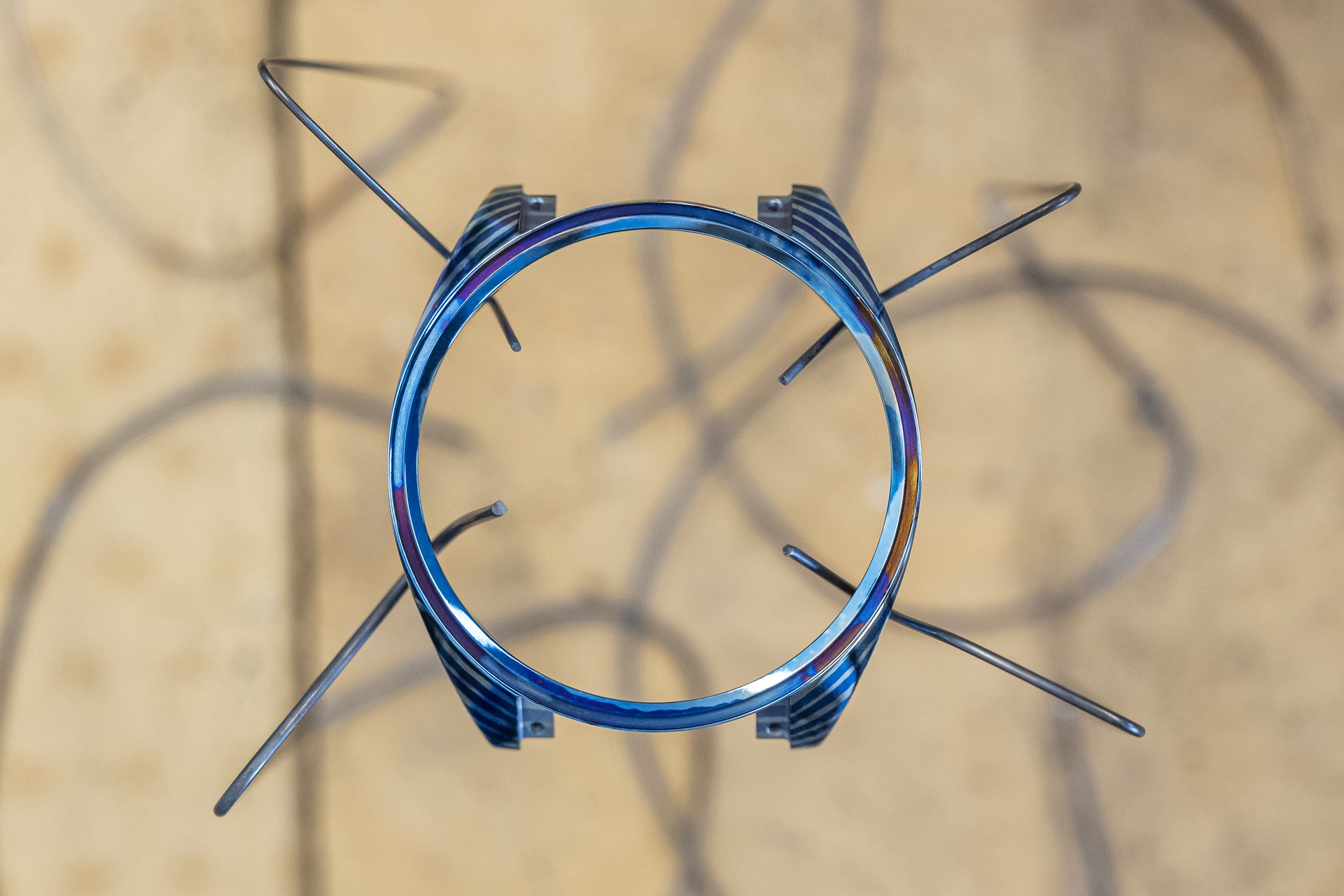

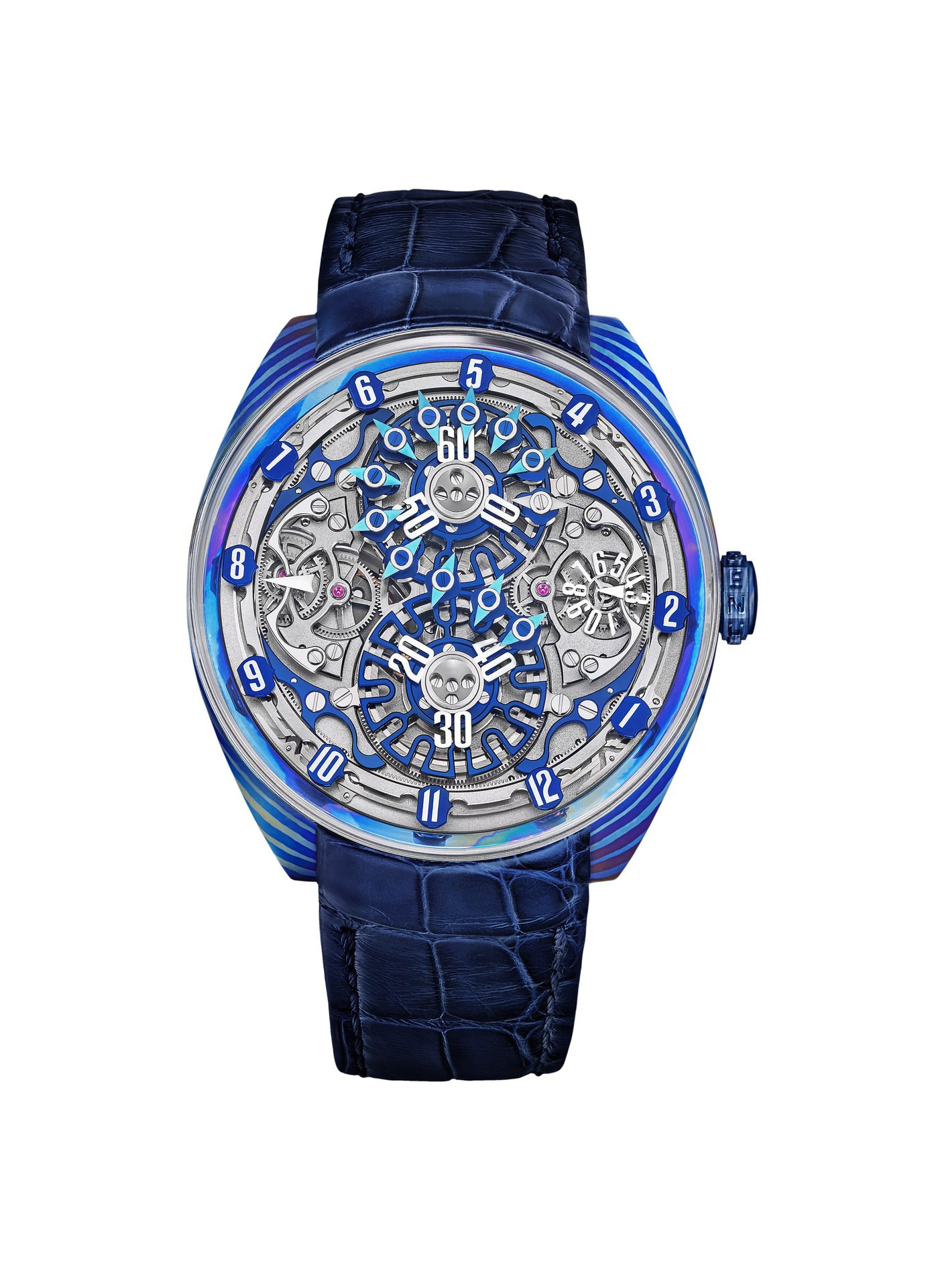

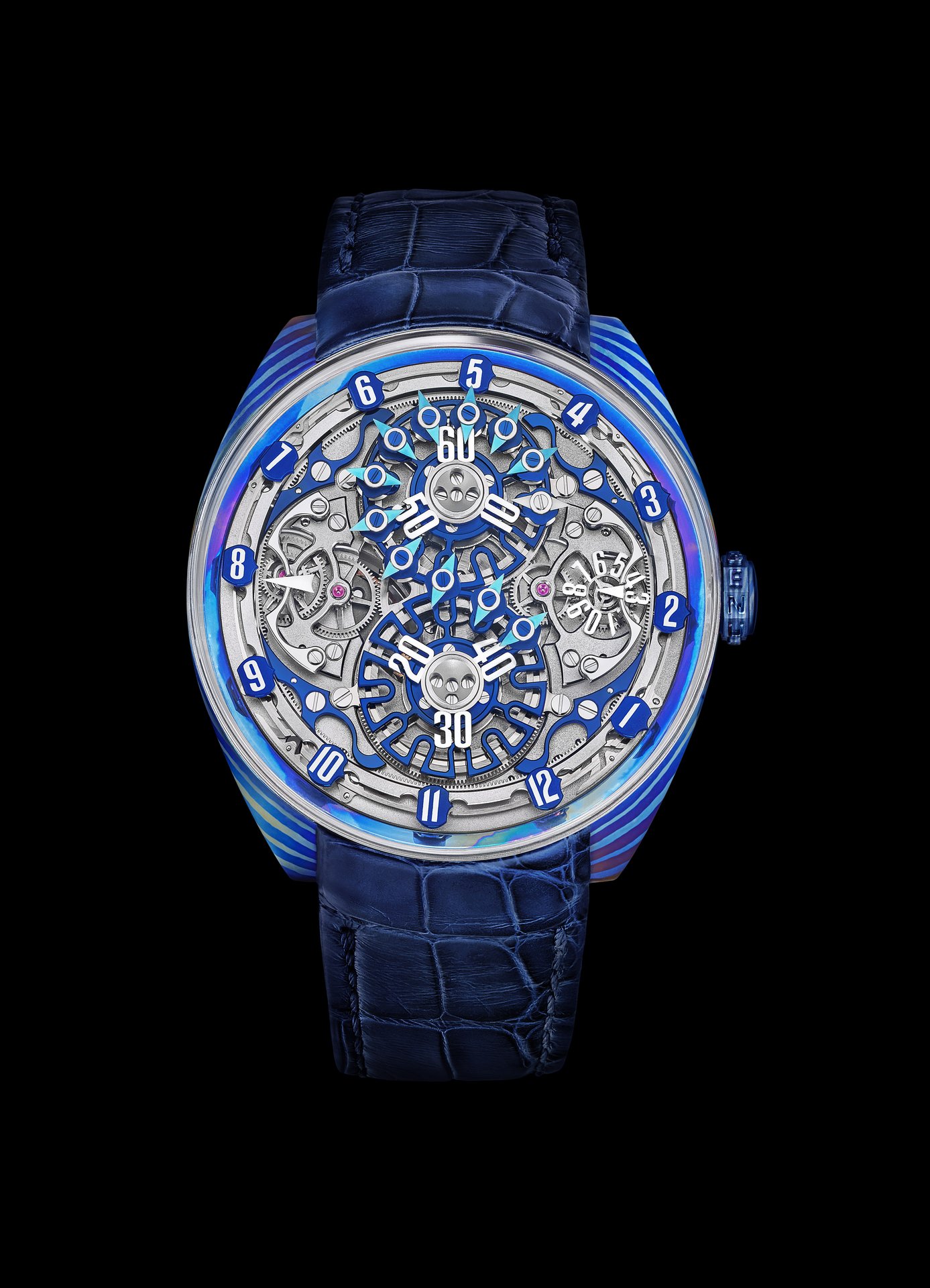

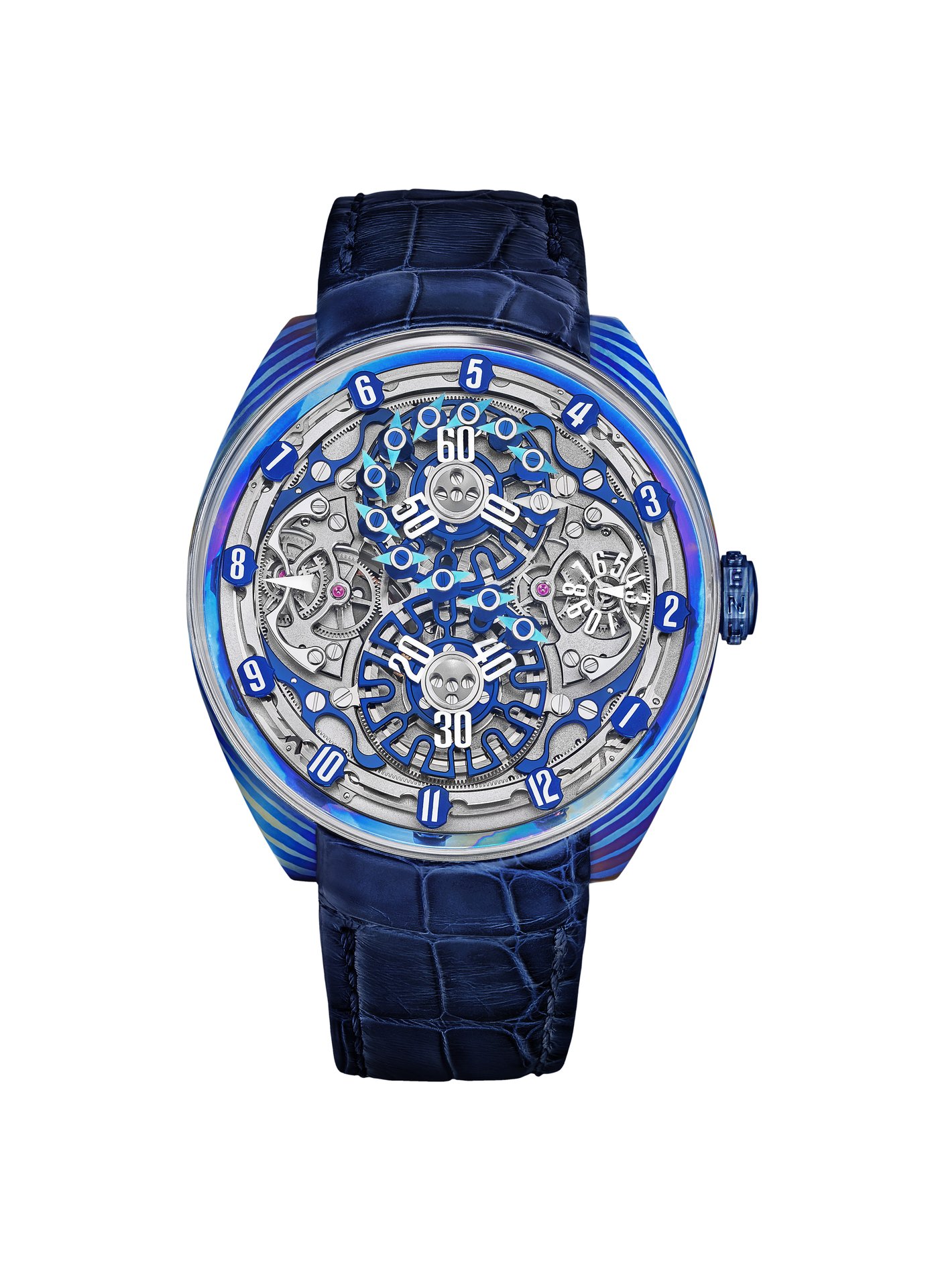

In 2020, GENUS re-imagines the GNS by incorporating it in a new metal case. After white gold and rose gold, GENUS ventures into new territory for watchmaking with a damascened titanium case, hence the name GNS1.2 TD (Titane Damassé). Applying the Damascus smithing technique to titanium requires a rare savoir-faire. In fact, the skill is listed in the Inventory of Intangible Cultural Heritage in France. It is craftsmanship elevated to art, true artisanship, the domain of only the best metalsmiths. In Japan it is called Mokume-gane, where it has been used to forge katana sword blades since the early 17th century.
Folds within folds upon folds…

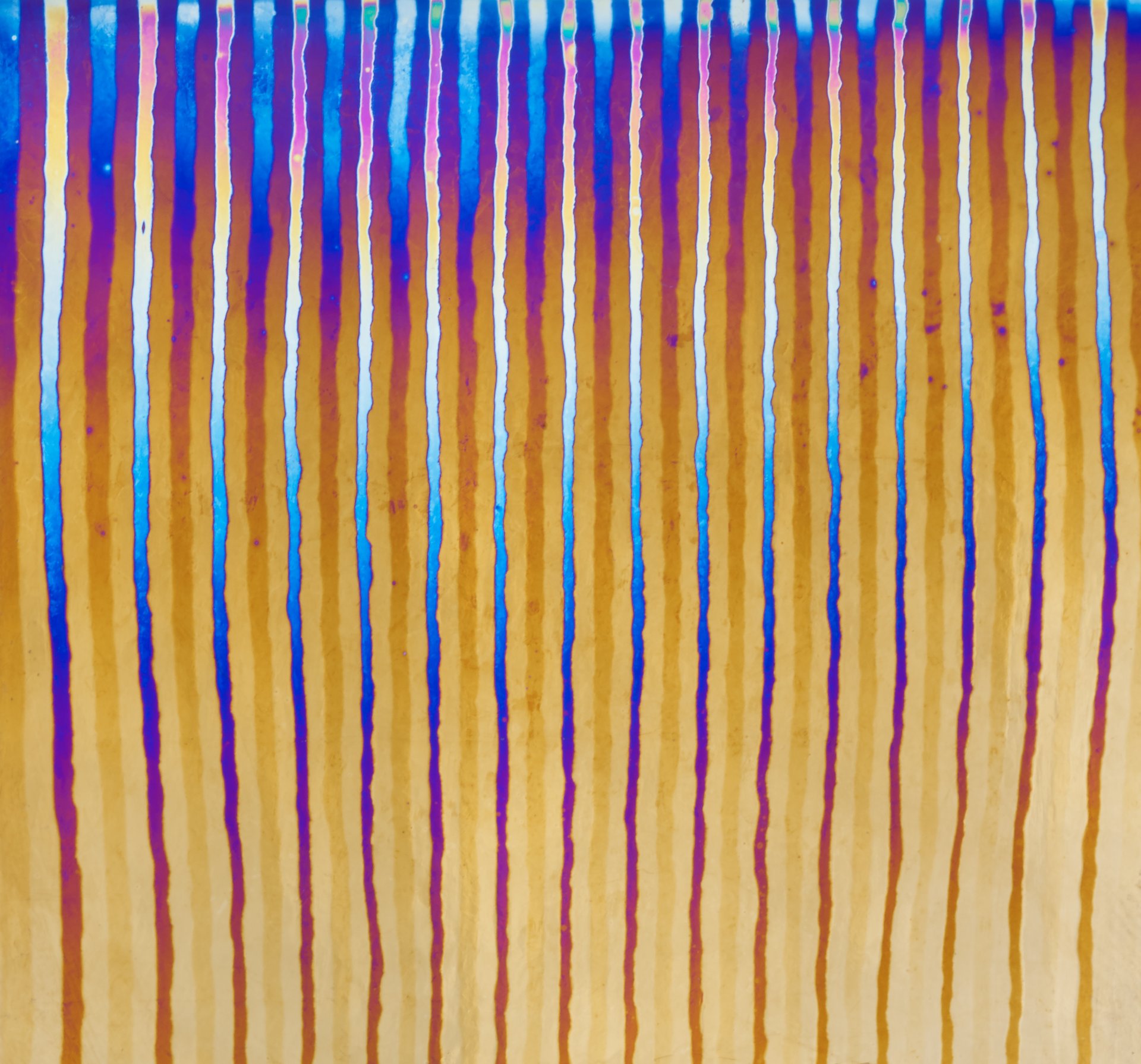

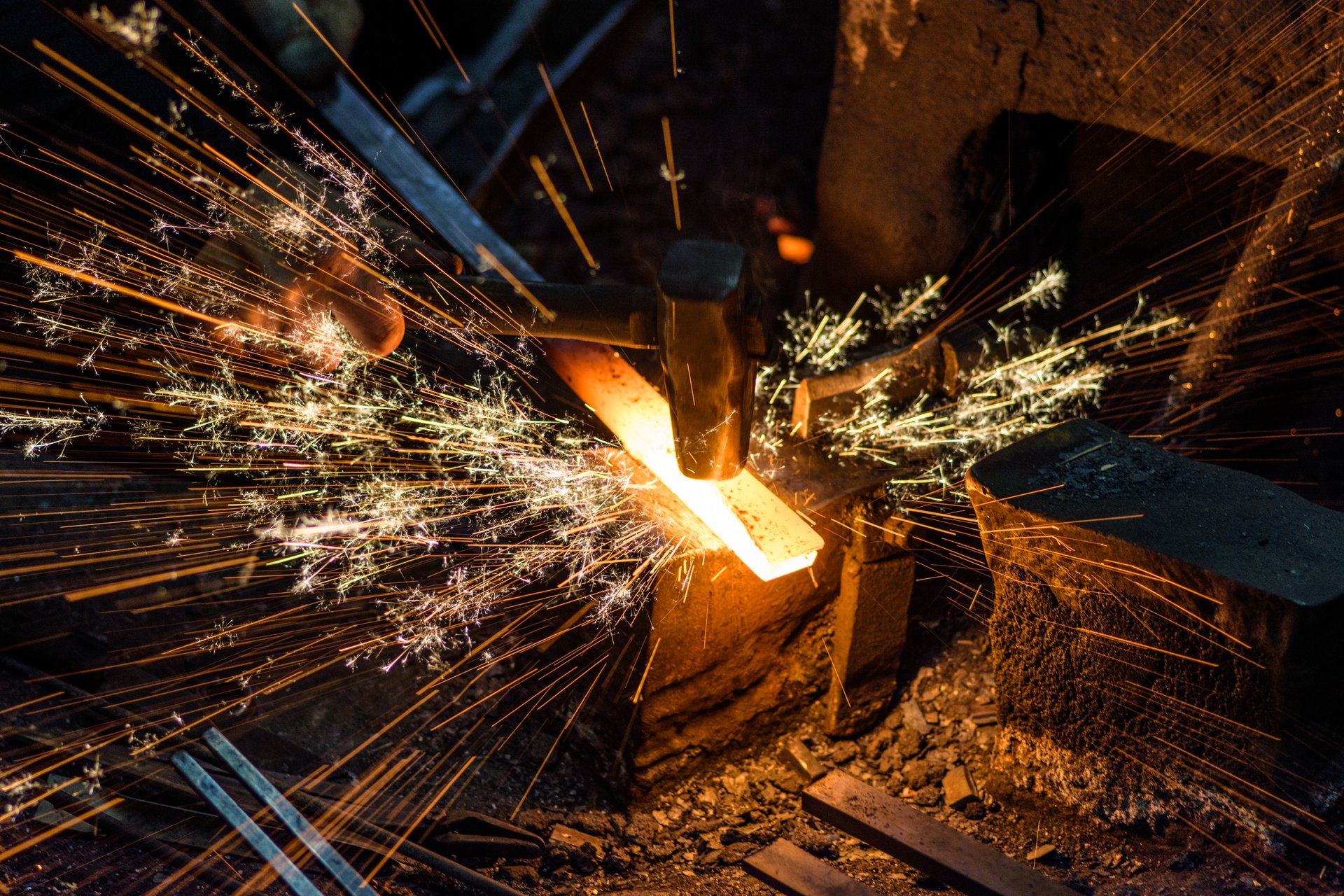

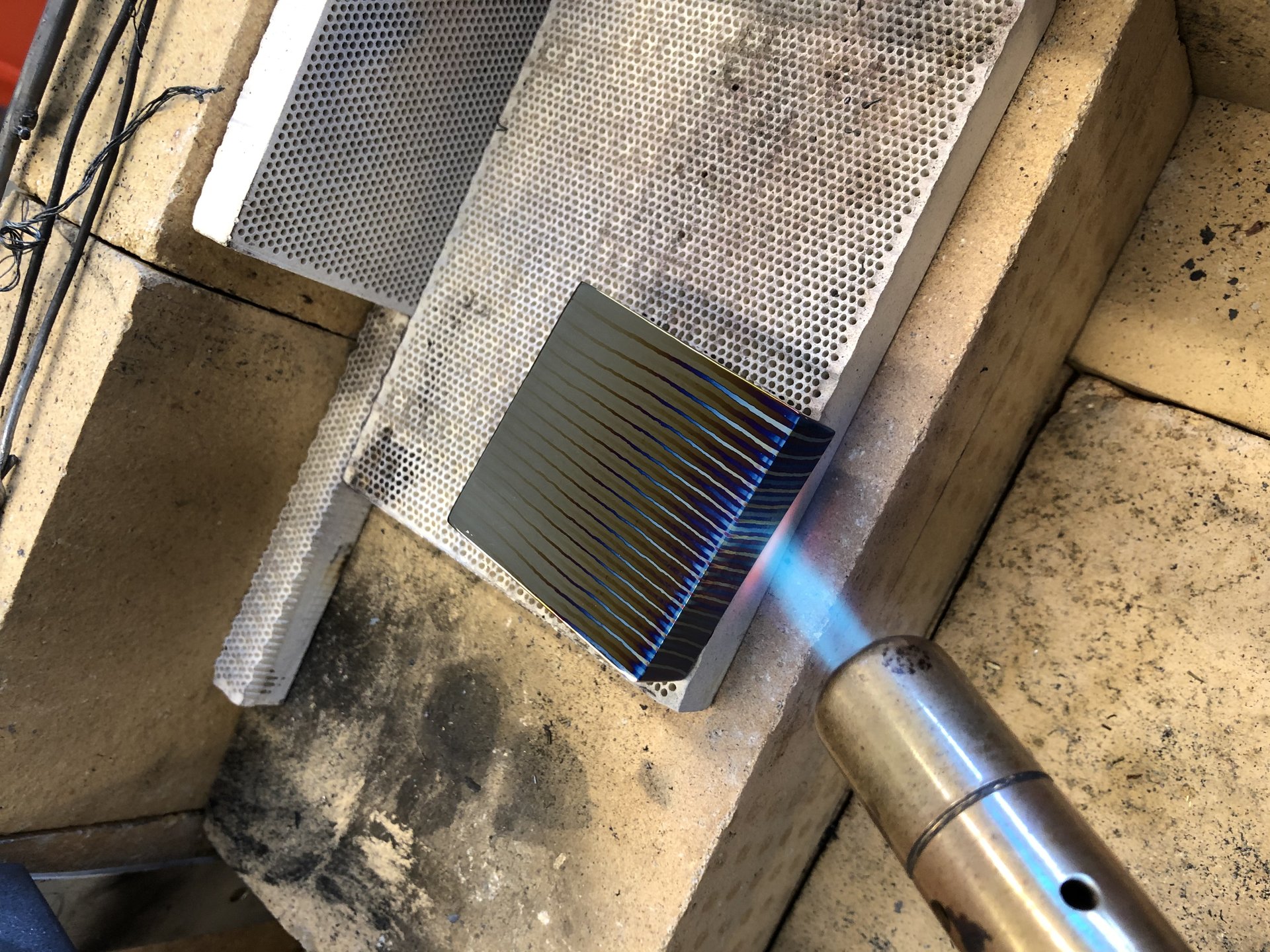

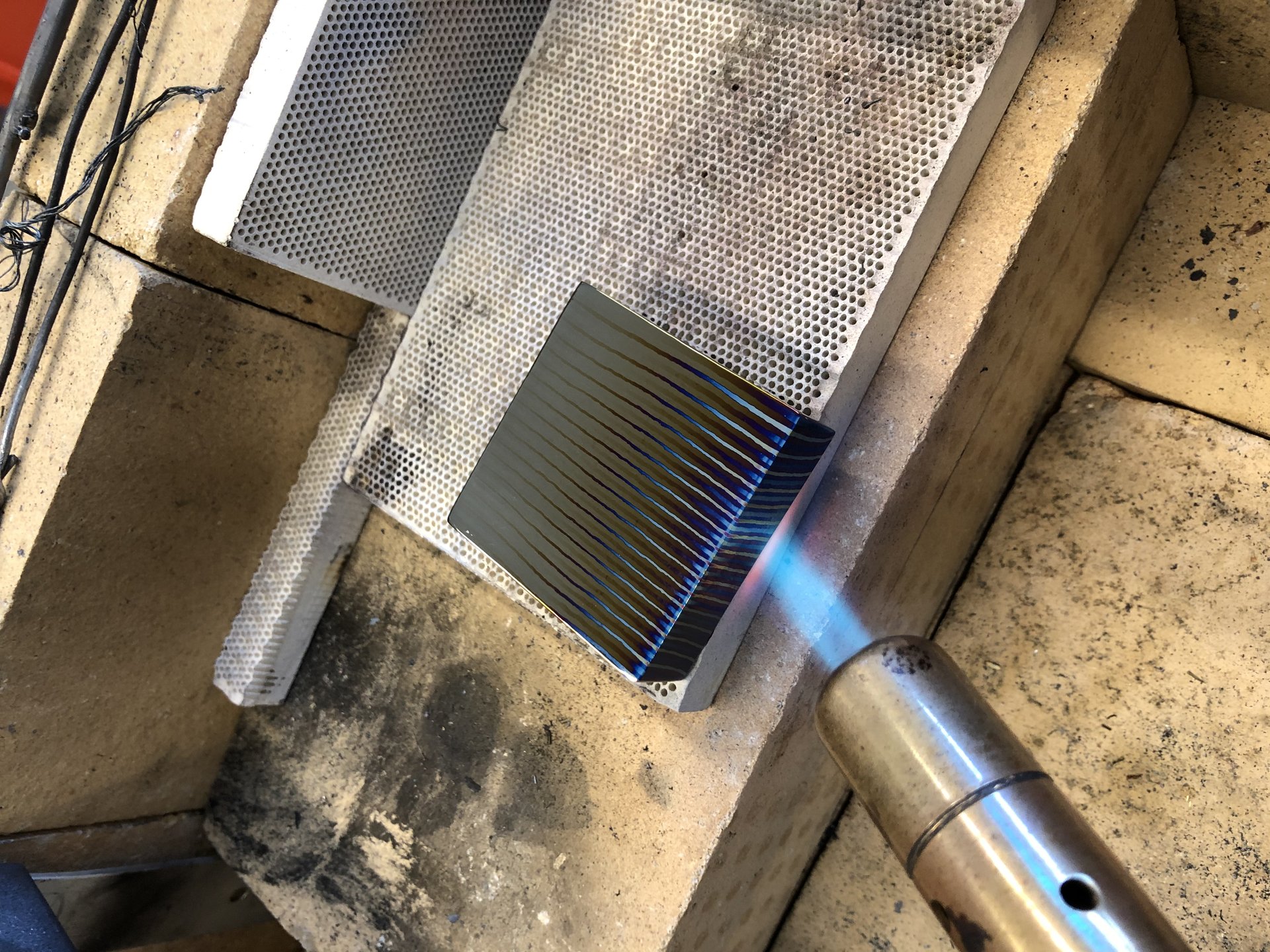

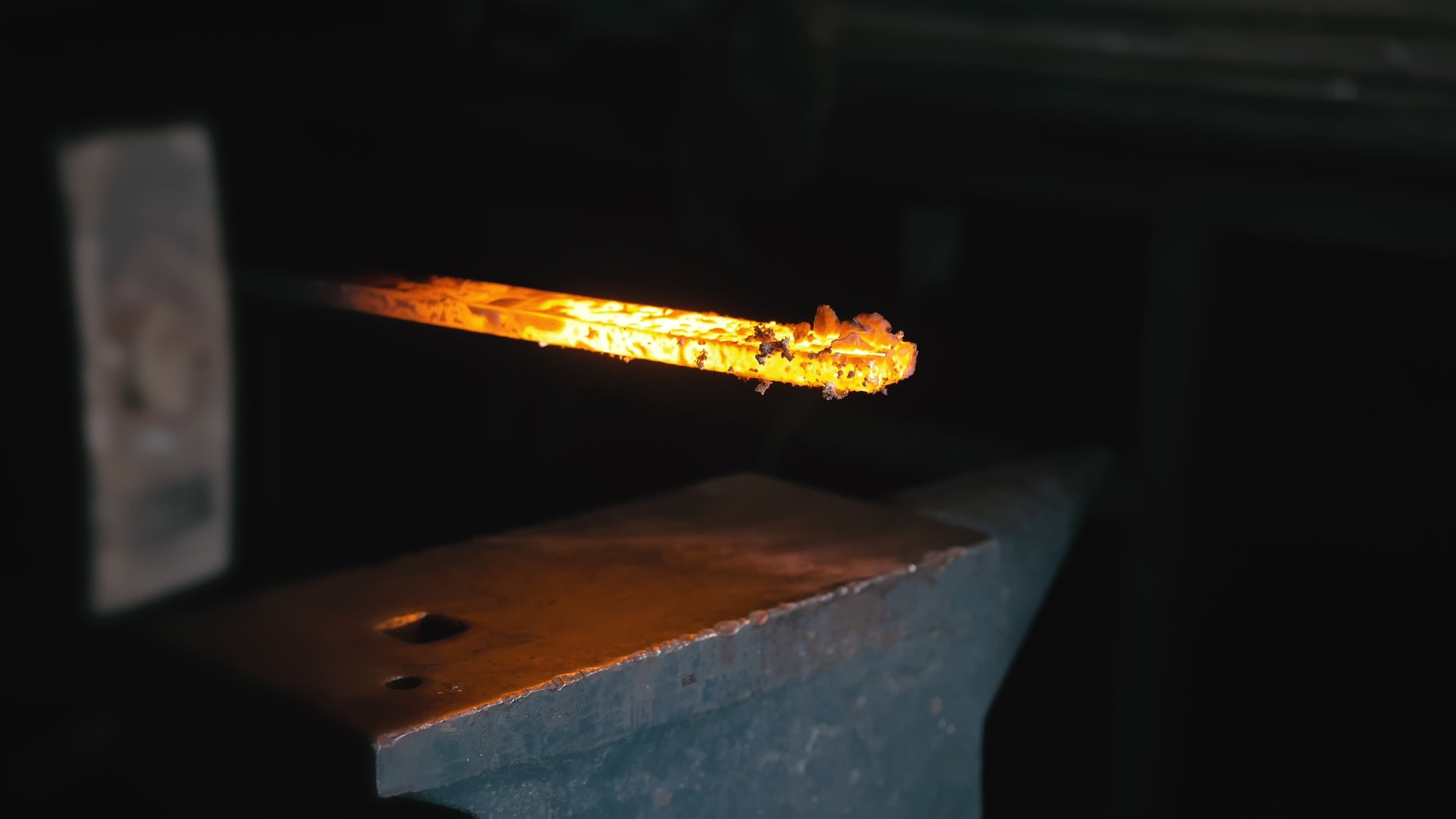

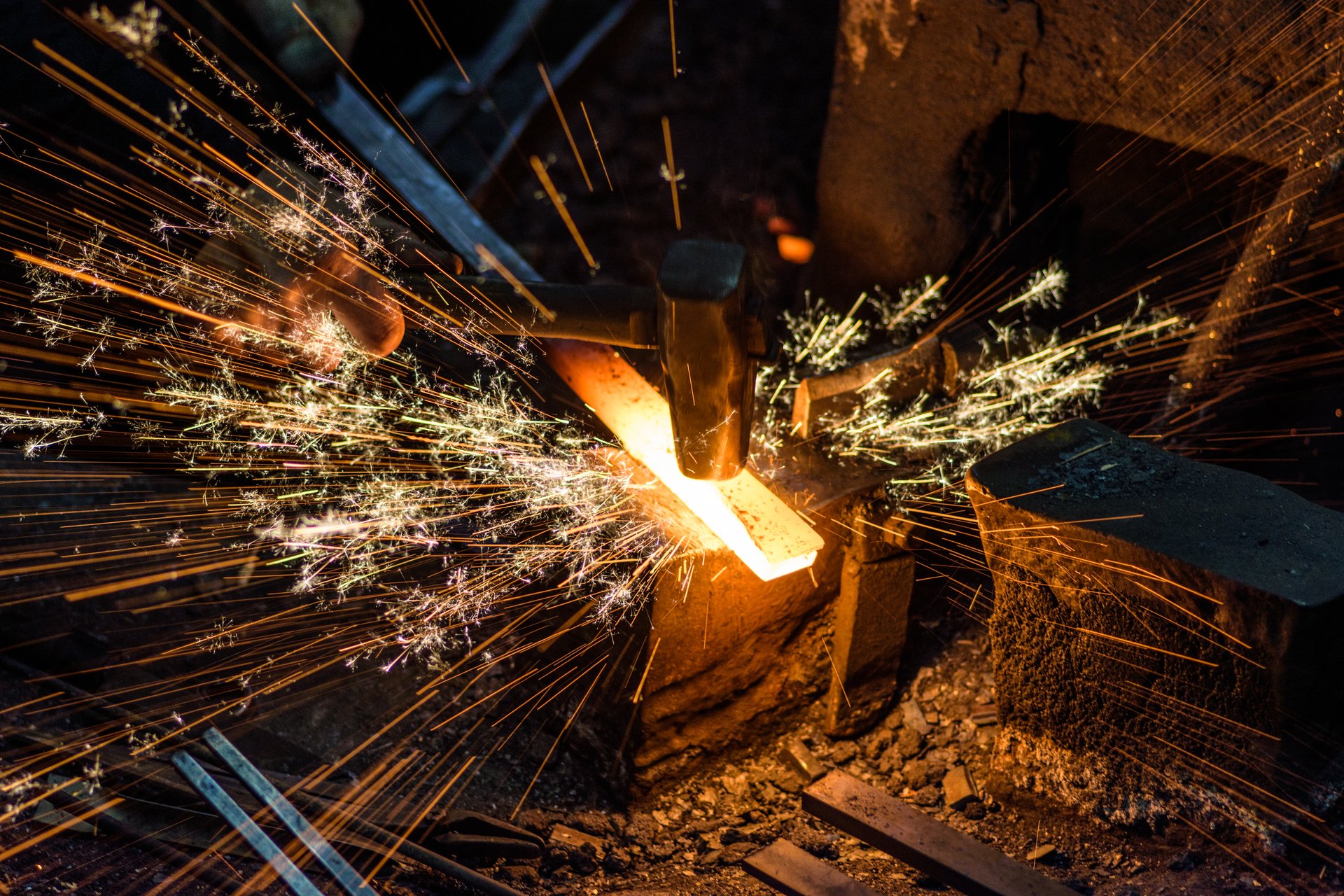

The art of damascening consists of forging sheets of metal layer by layer. After having been hammered, each sheet is folded back upon itself, and the operation is repeated as many times as necessary – one might say like preparing the laminated dough used for puff pastry. This homogeneous ‘stacking’ of homogeneous layers, each one annealed between each fold, gives the material an entirely new, very particular aspect. Each incision, each bevel into the edge of the damascened metal reveals the strata, the shapes, the undulations, the unique character of each layer.
… and variations thereof

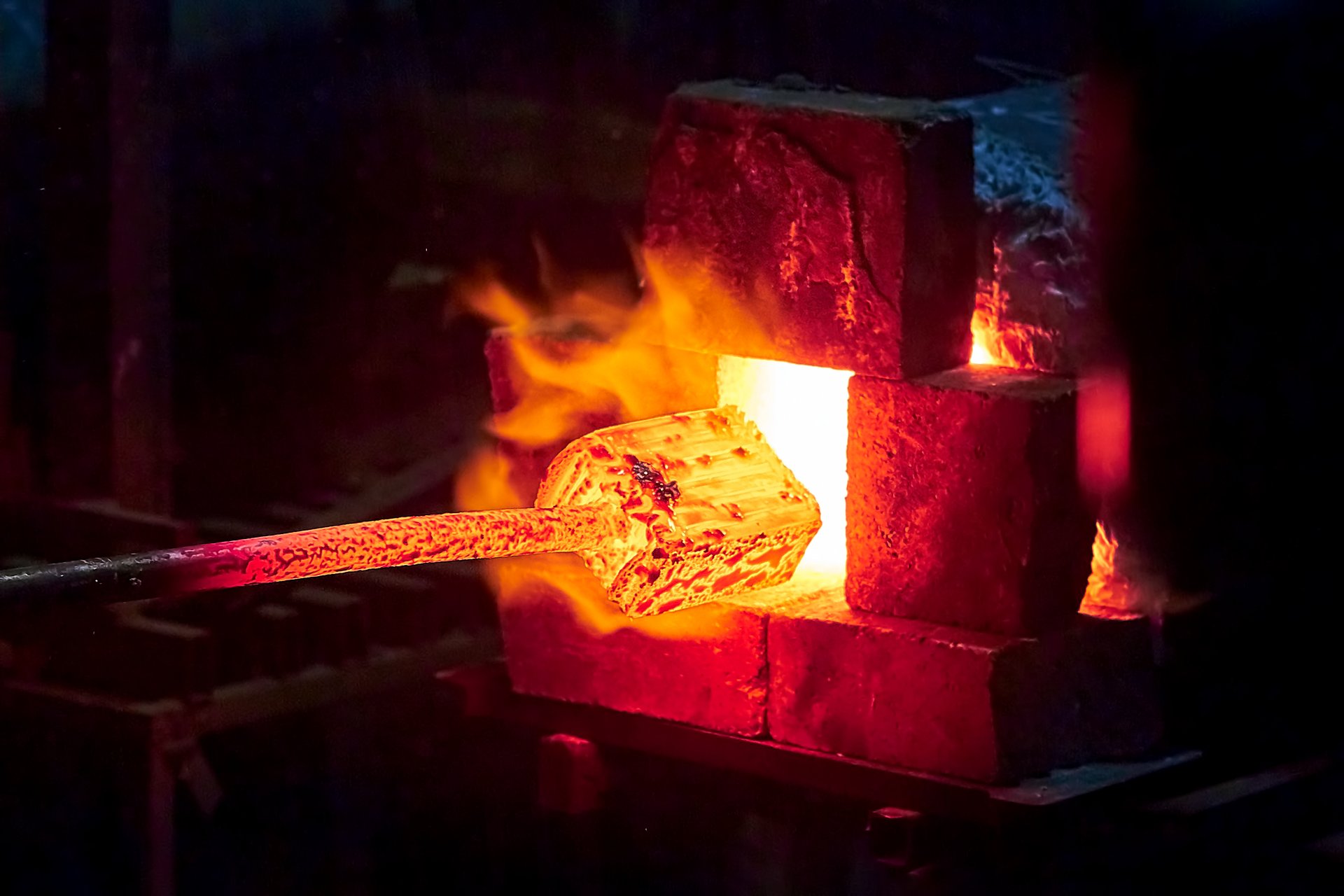

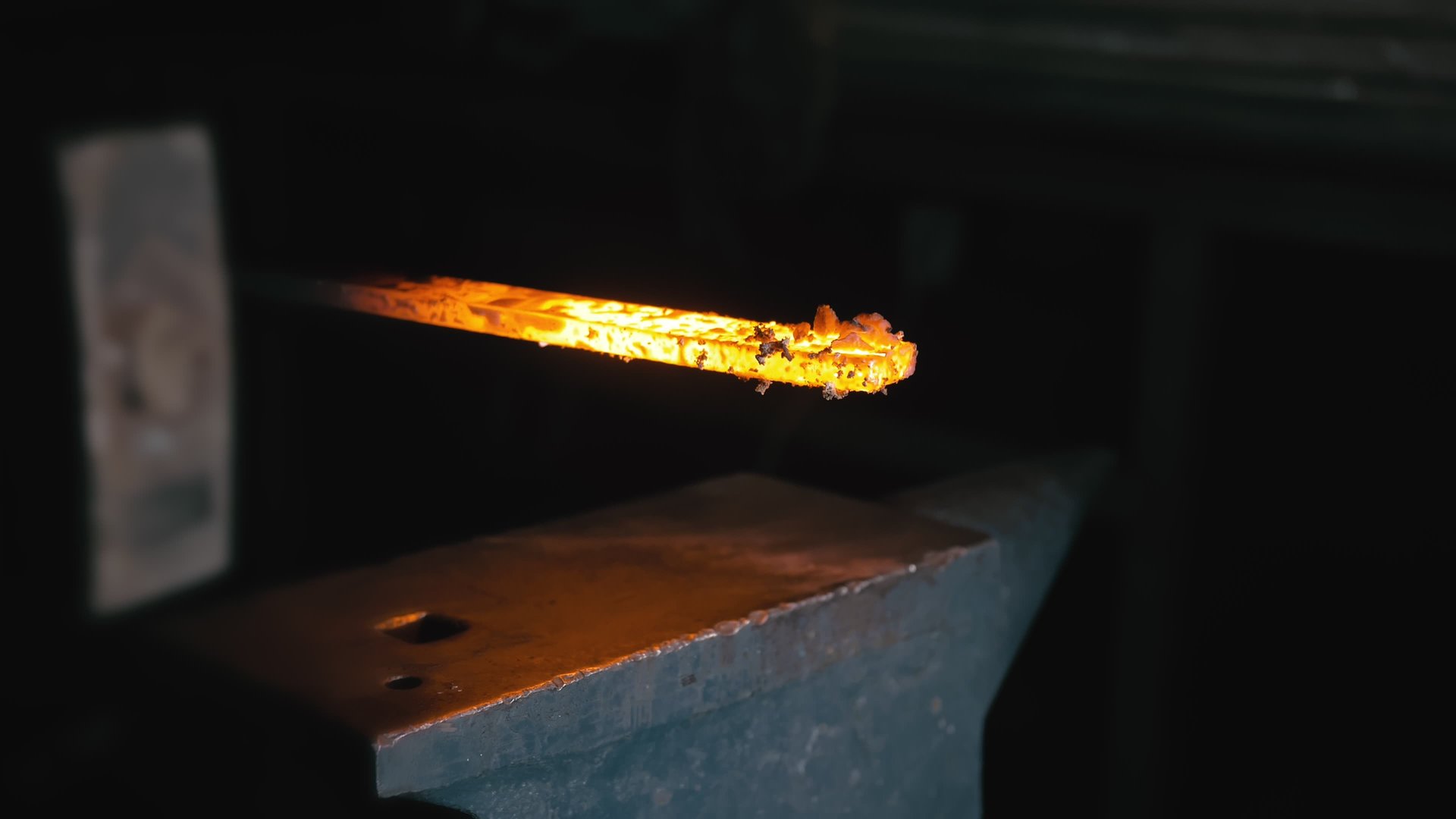

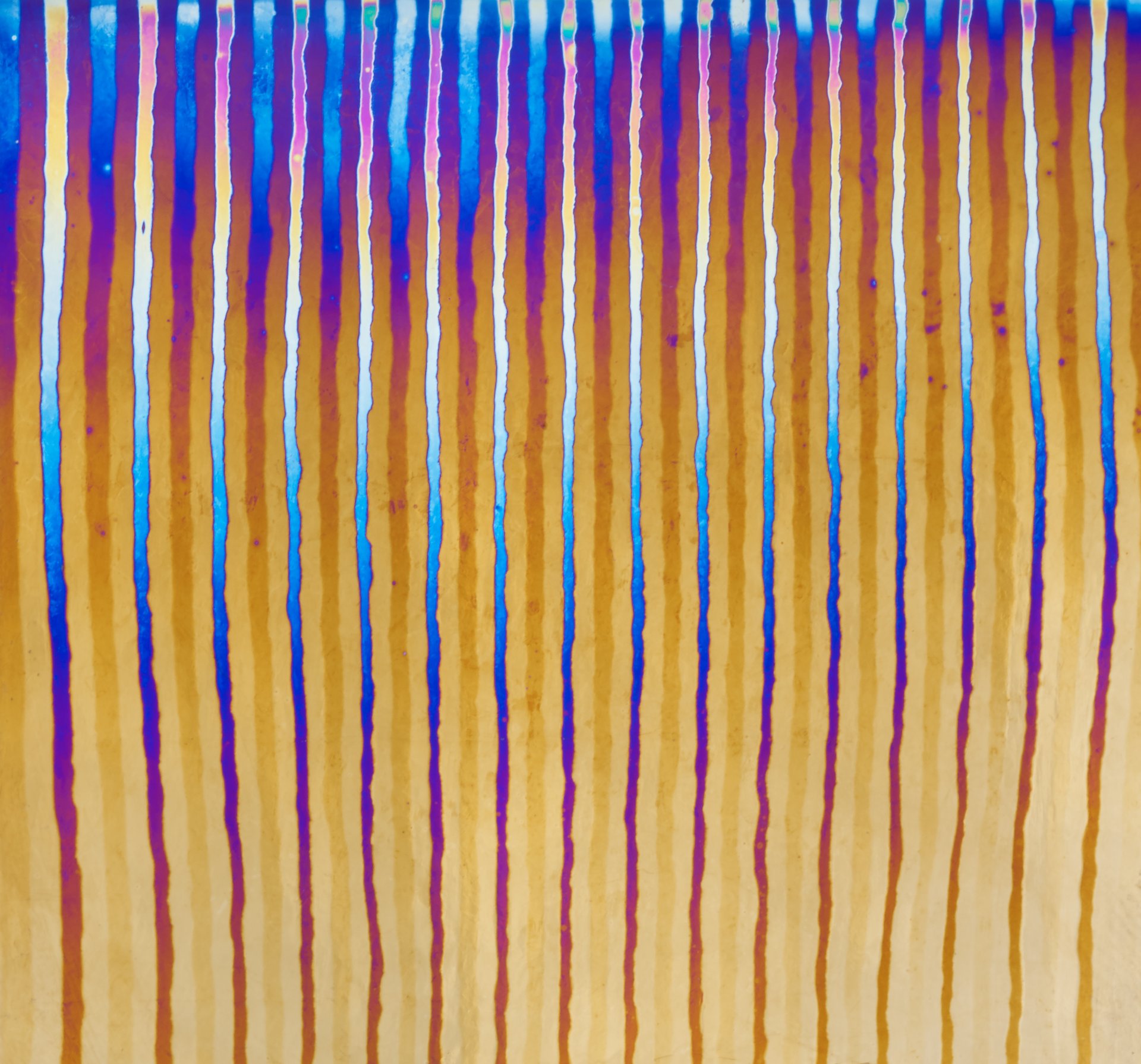

The difficult work, at the heart of the forge’s embers, of folding and layering is usually done with iron or steel for katana blades. Although 40% lighter, titanium is three times harder and can be forged at temperatures 300 degrees higher than for conventional watchmaking steel. This makes the method, which remains largely manual, quite laborious, and complex. In addition, to further enrich the appearance of this basic material, GENUS works with layers of various titanium alloys, each of which exhibits a different tint and reaction to heat. The colourful effect is rendered even more visually arresting by the final heat treatment that determines the general tone of the metal block, along with its subtle differences in tints and hues.

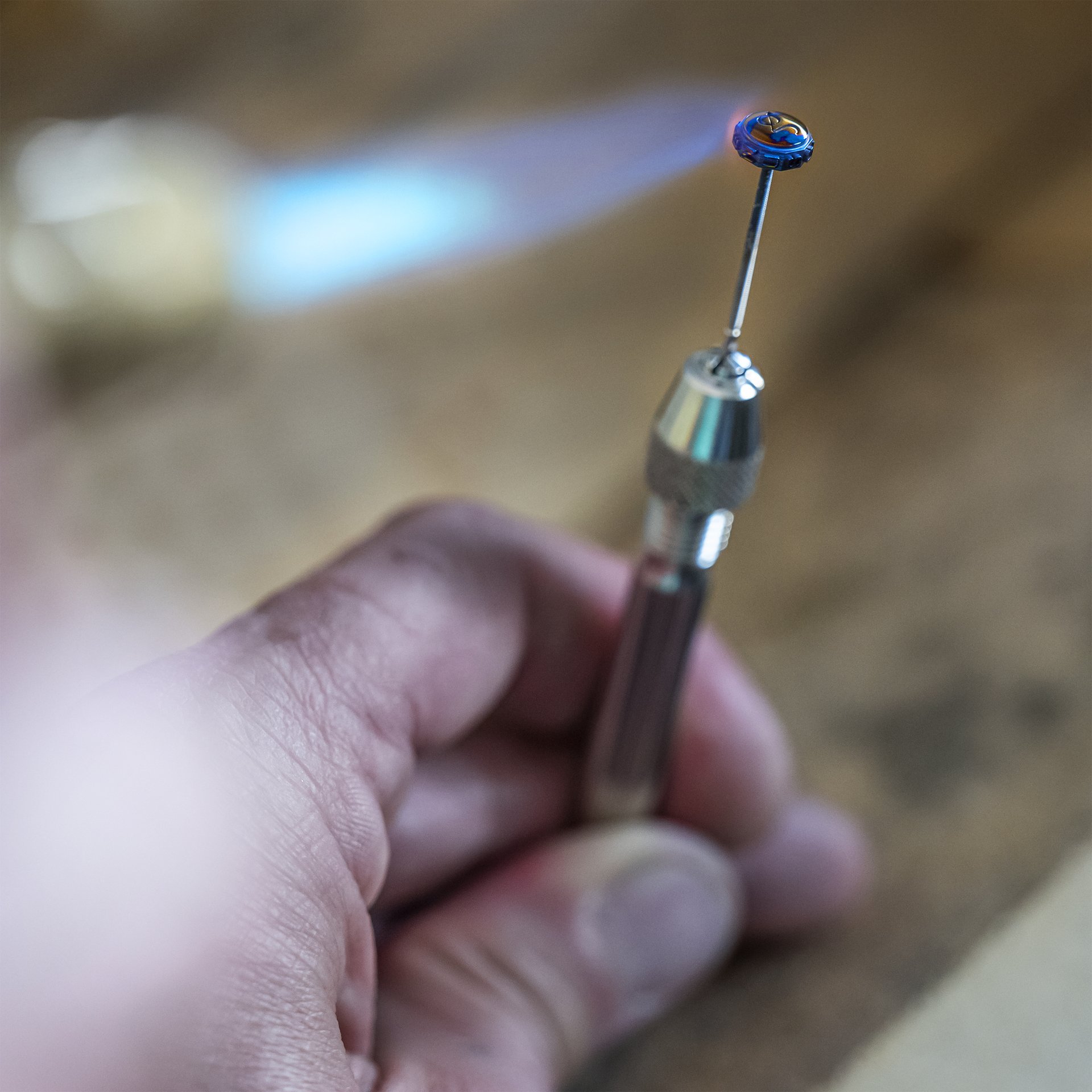

Bespoke colours and contrasts

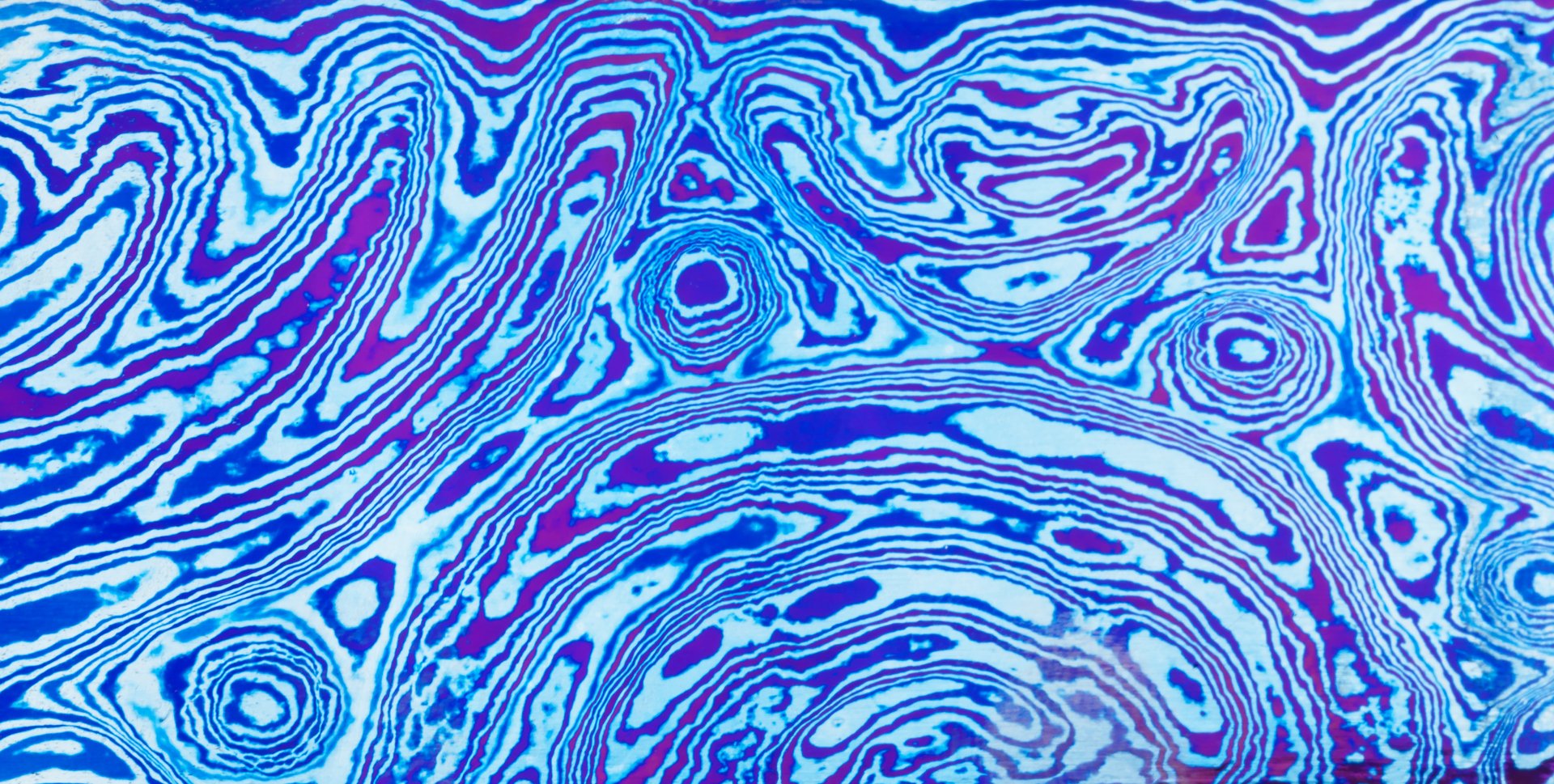

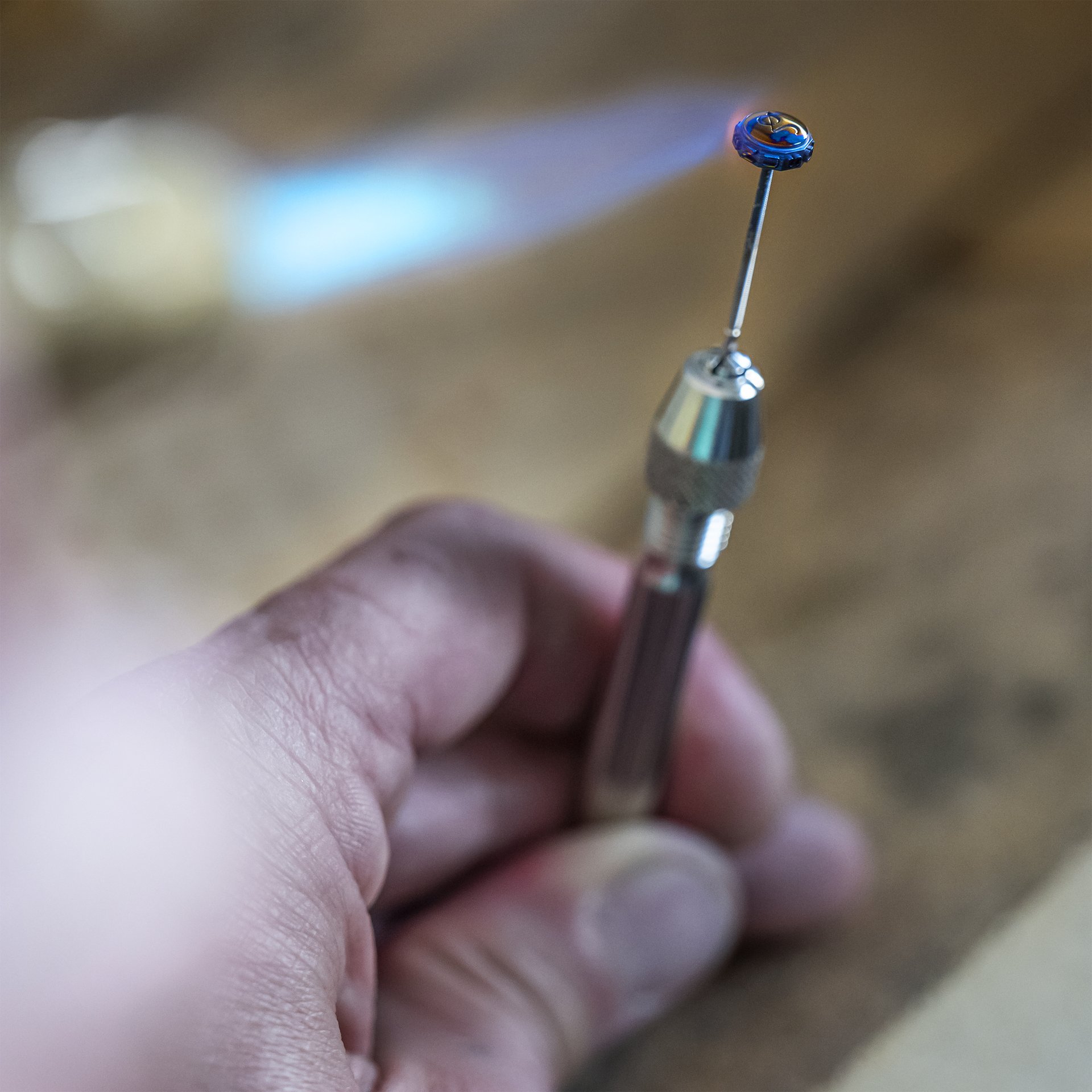

Each part of the GNS1.2 TD’s casing is cut at an angle to achieve a different, unique appearance. GENUS then works to coordinate the different parts that make up a watch. Here, the intimate relationship between GENUS and the wearer again comes into play. Indeed, the future owner is invited to attend the ‘damascene revelation’ by open flame at the GENUS workshop in Geneva and will be able to intervene directly in the colouring as well as decide on a particular surface finish: matte, satin or polished. Only the owner shall be privy to the secrets of the manufacturing process and the artisans’ skills.
A movement preserved
At the core of the GNS1.2 TD, the same heart, the same brain as in theGNS1.2 WG – the 18K gold in-house calibre that was awarded the Mechanical Exception Prize at the Grand Prix d’Horlogerie de Genève (GPHG) in 2019.
Creativity, innovation, singularity being the intrinsic values of GENUS, the calibre 160W-1.2 forms the natural foundation of this authentic, genuine, and sincere watchmaking approach.

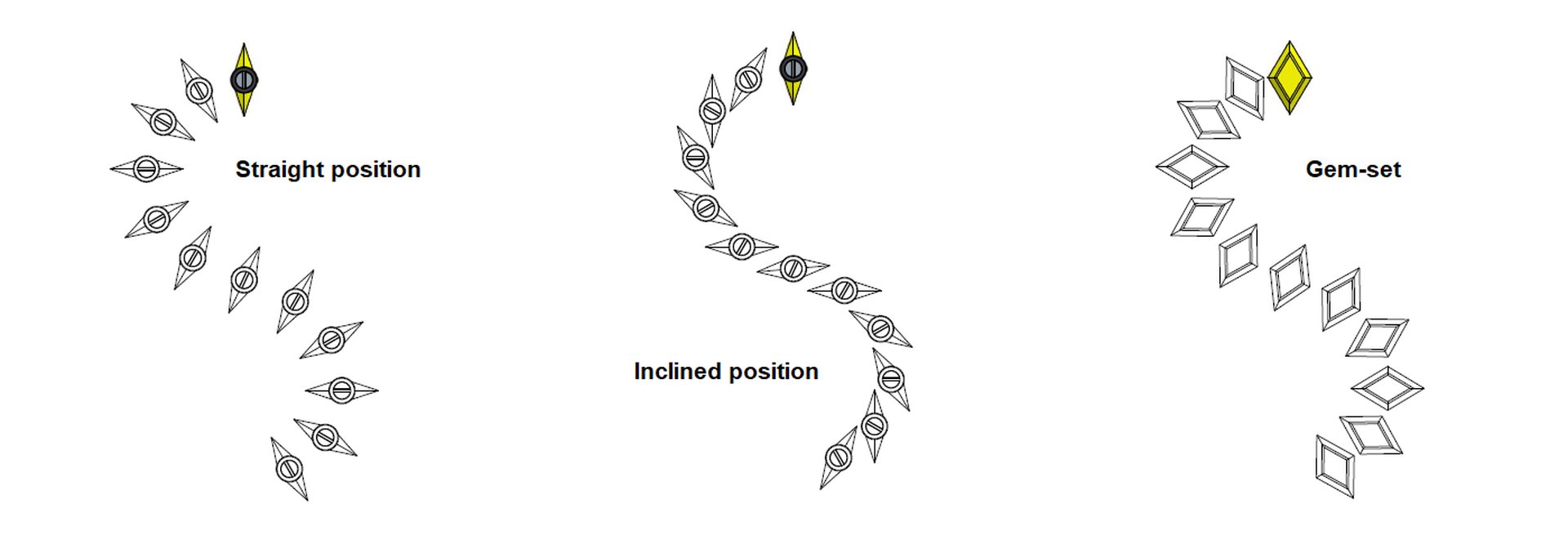

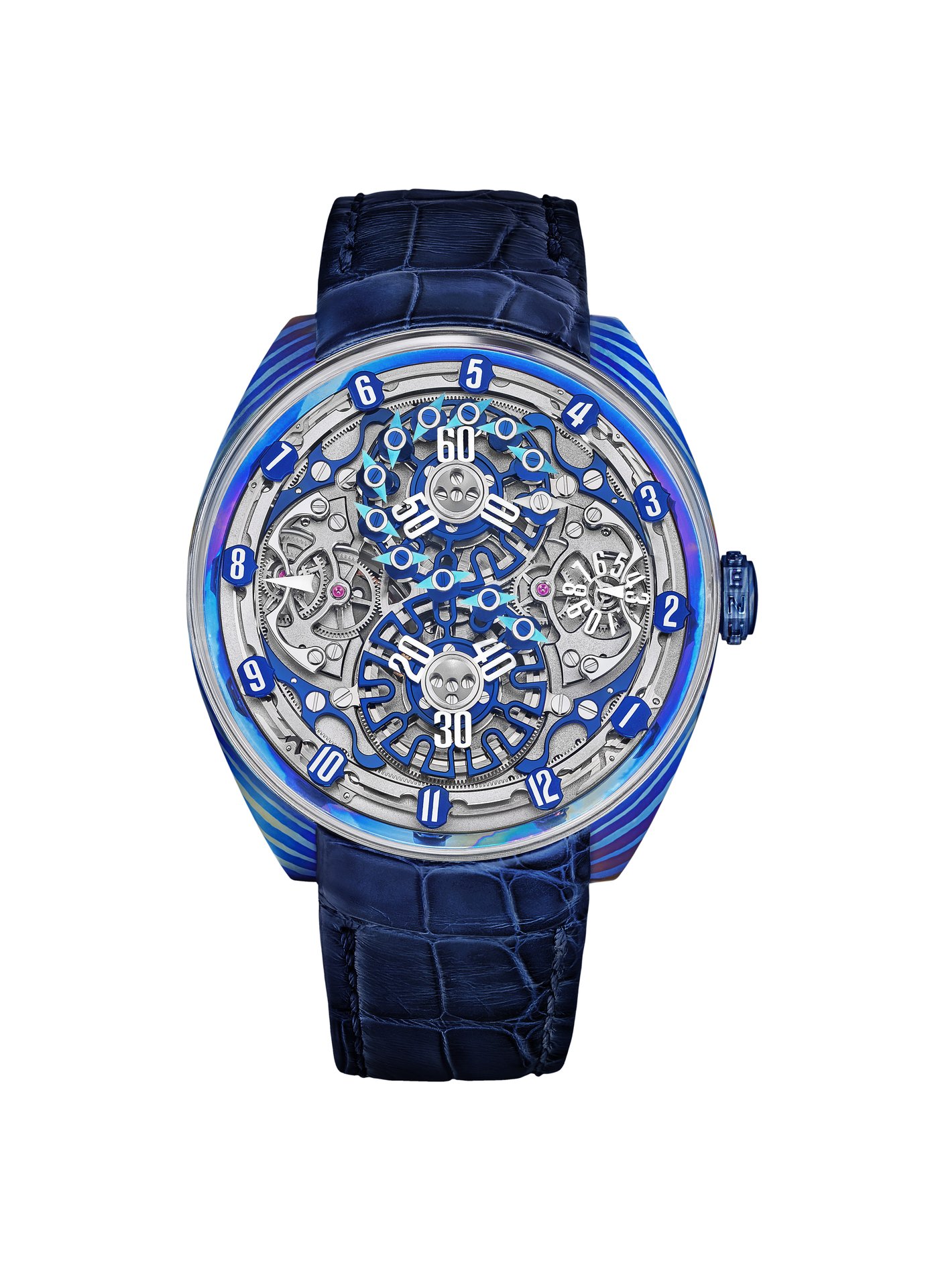

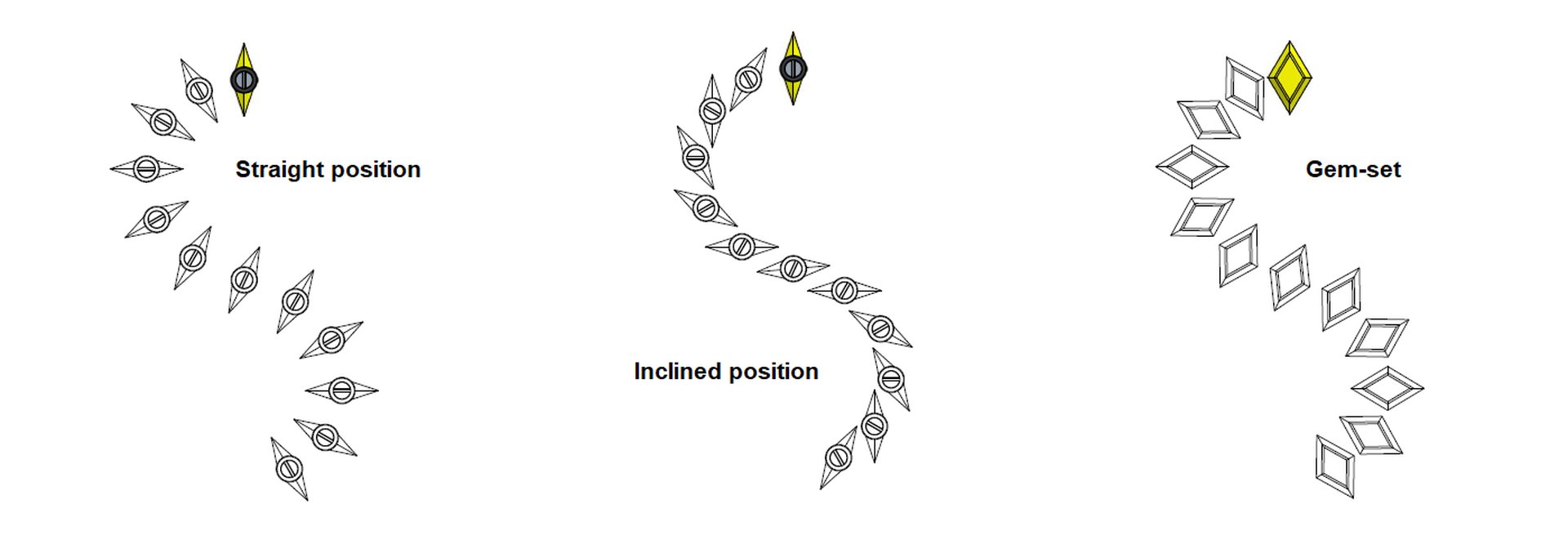

Particularly attentive to its customers, and always receptive to their wishes and preferences, GENUS has made several adjustments to its masterpiece. For instance, the orientation of the ‘genera’ – the hallmark free-moving elements that flow in a pattern to indicate the tens-of-minutes – can now be personalised. They can be set straight or inclined, depending on the wearer’s aesthetic preference for the watch. This option can provide a more comfortable legibility for some owners.
In addition, GENUS adjusted the curvature of the sapphire crystal which eliminated the perceived ridges on the upper perimeter. This mitigates any visual distortion of the hour indices, thereby improving clarity of the timekeeping mechanism.
50 hours of power reserve

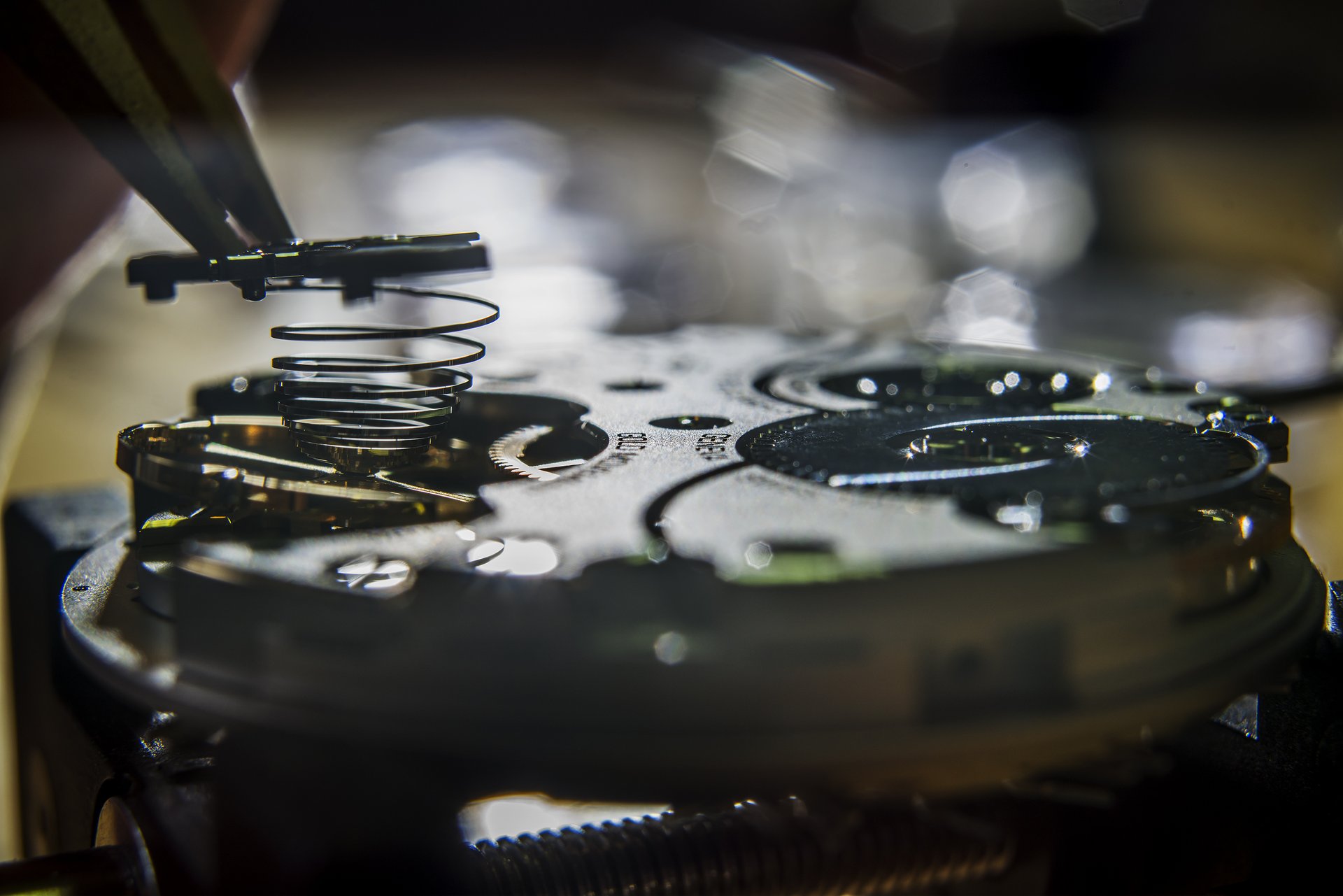

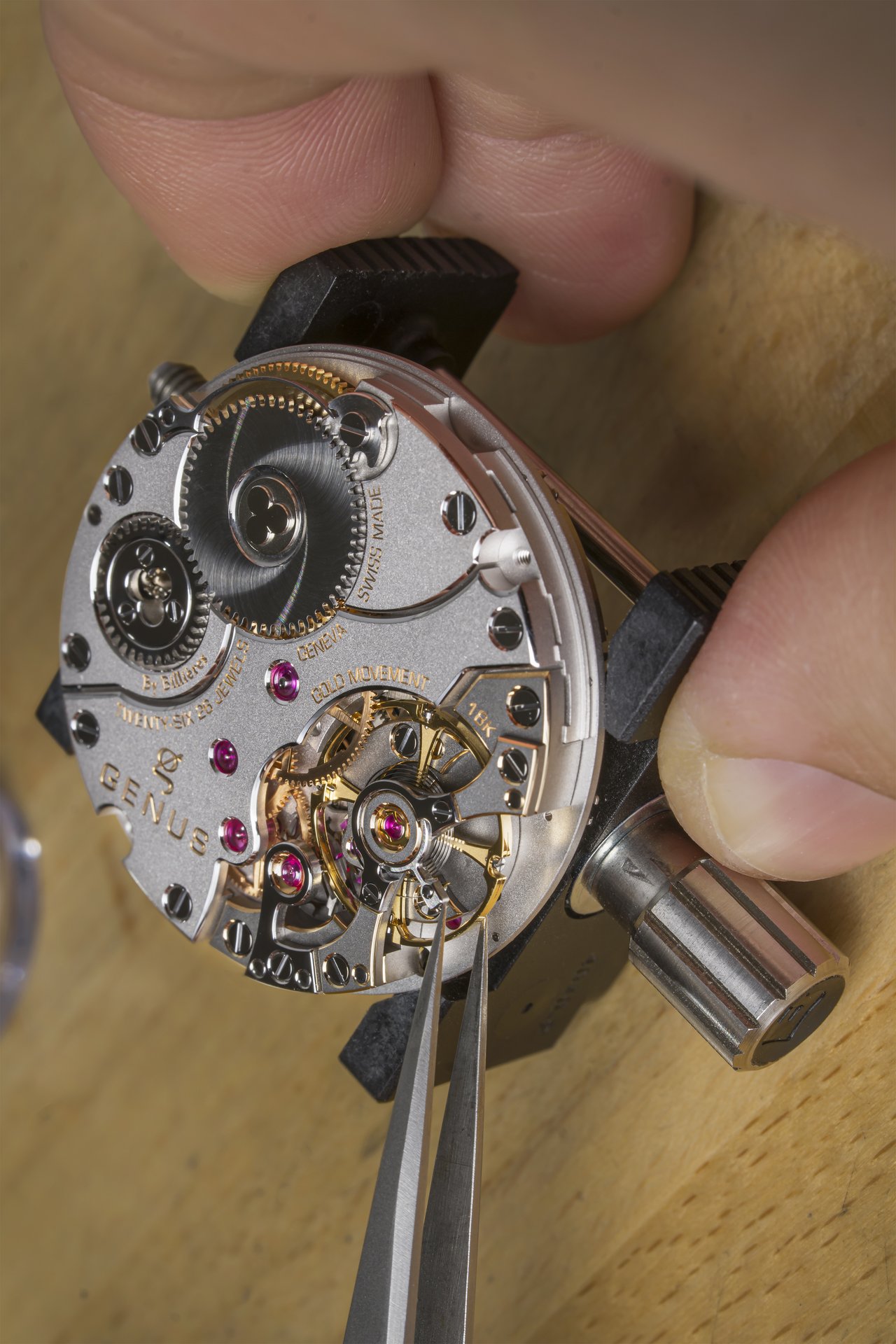

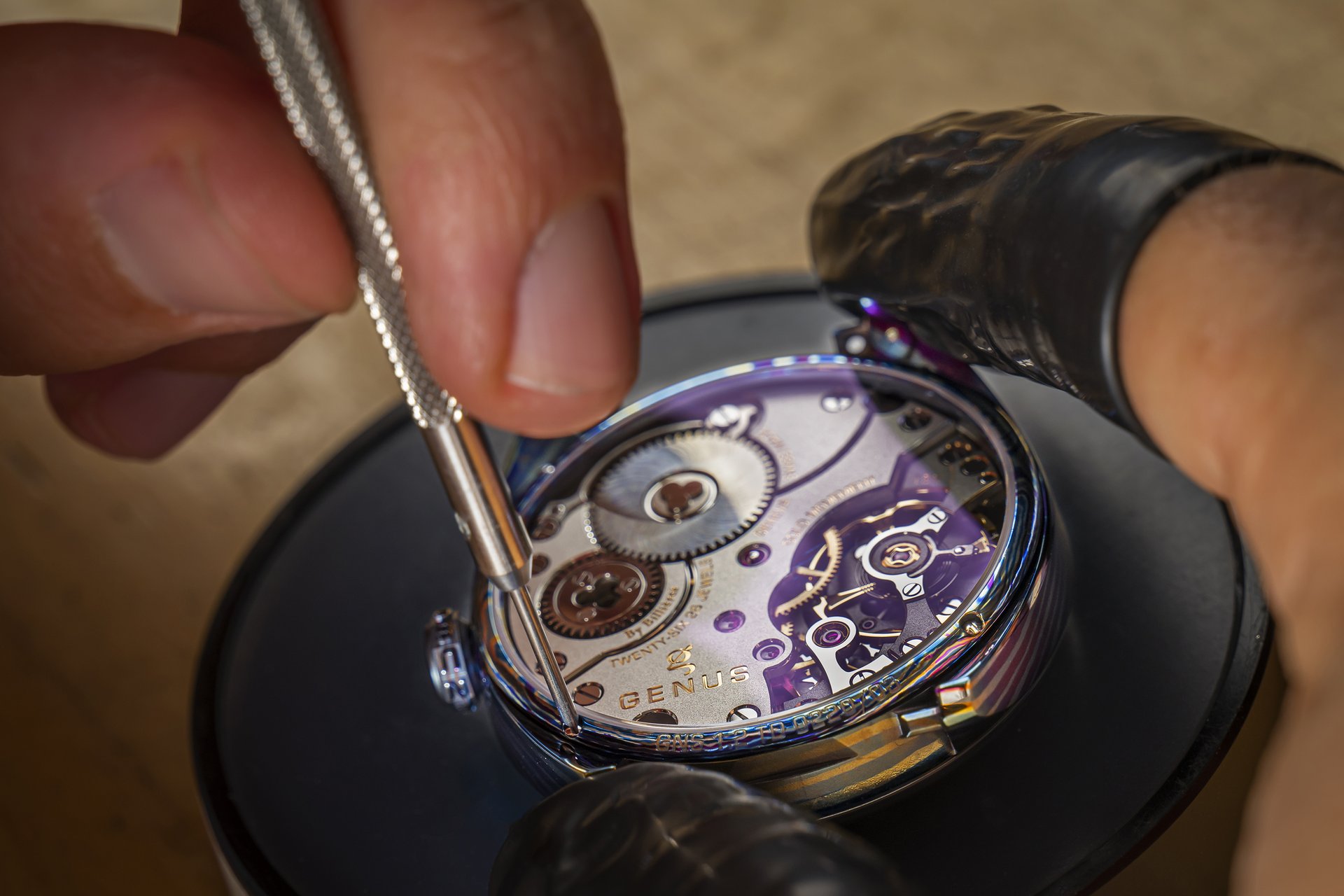

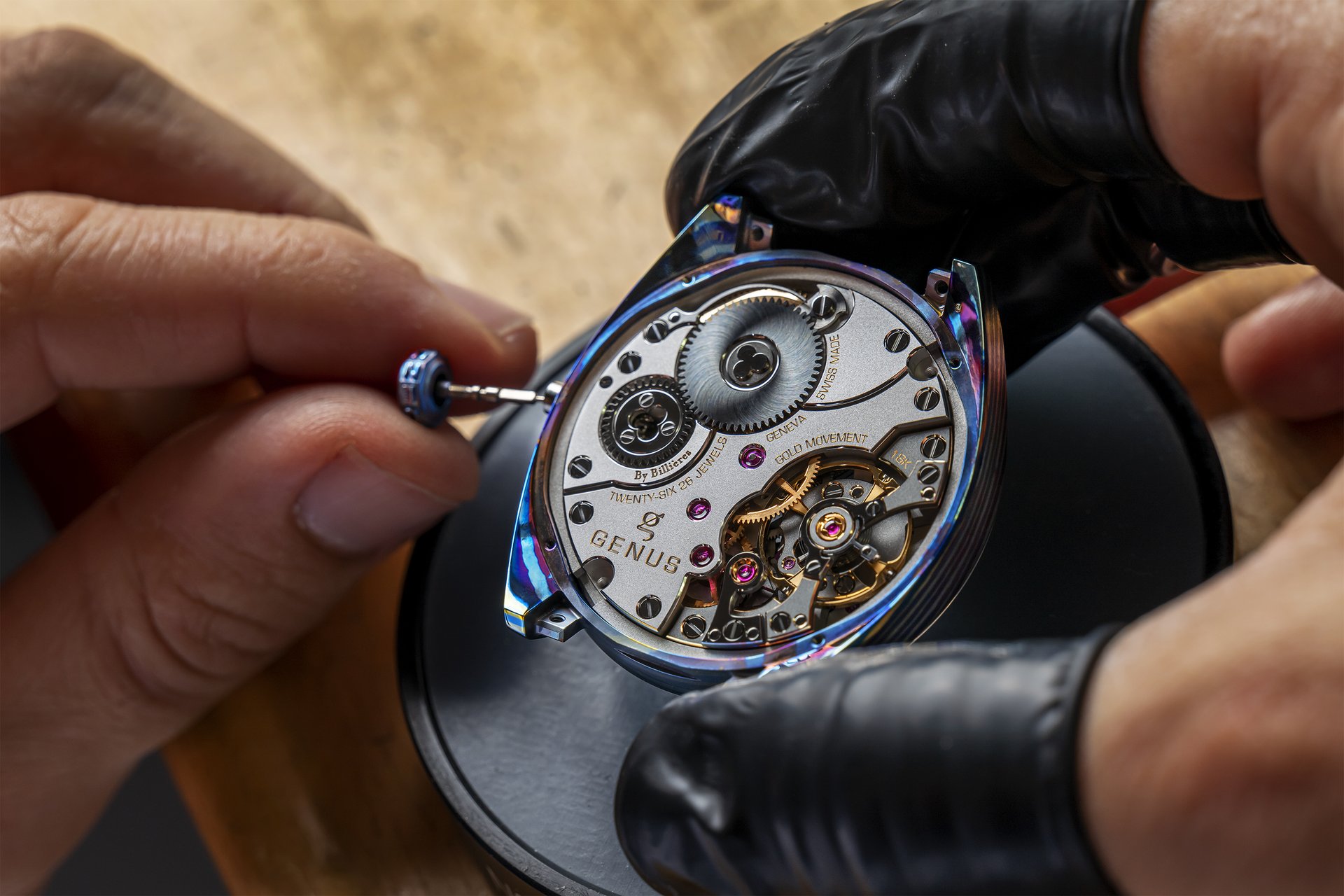

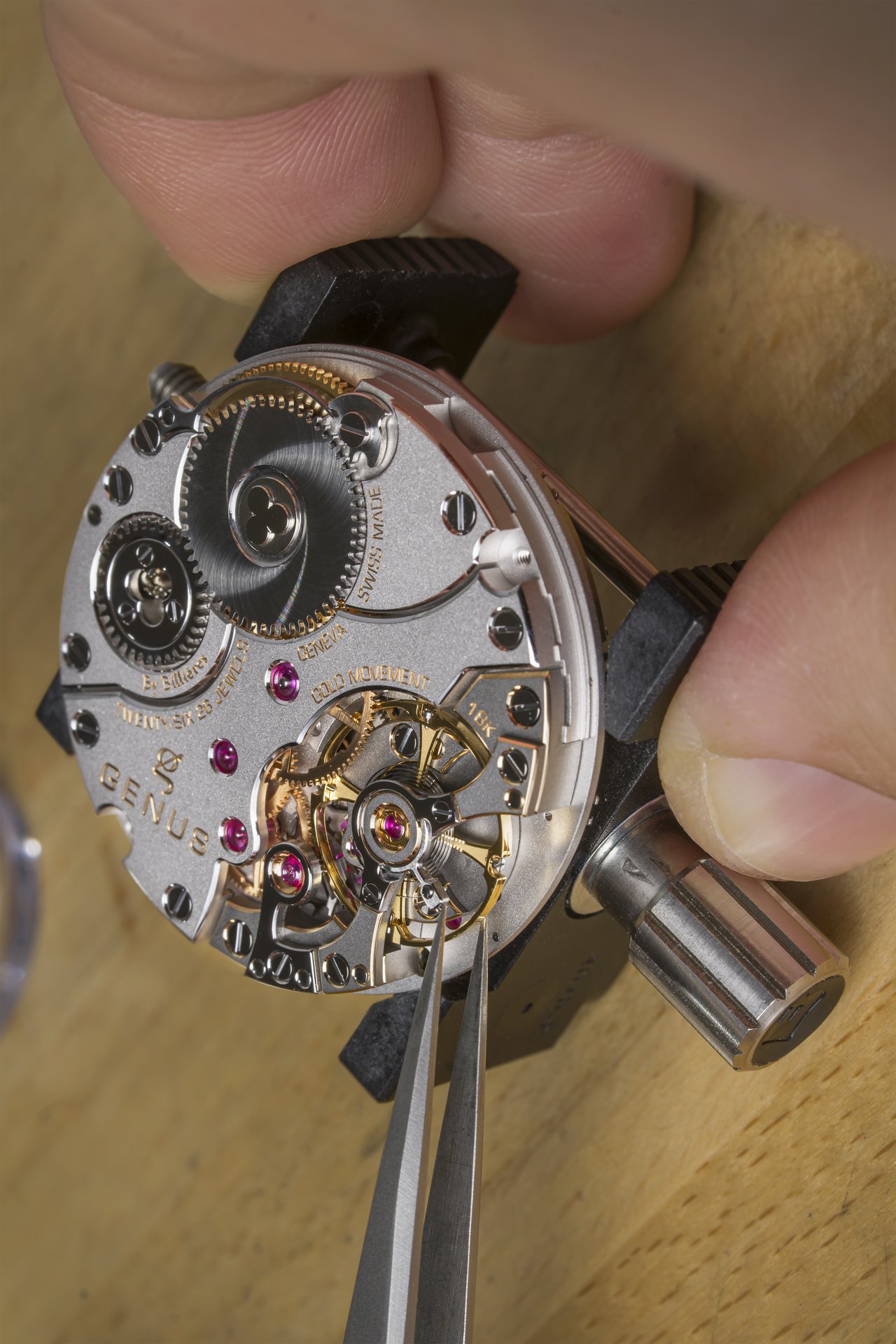

The architecture of the movement is indicative of the genetics of the GENUS project. The intrinsic principles of freedom, flexibility and future evolution are based on its separation in two parts. The base, which can be described as the foundation of the movement, groups the essential functions, including a single barrel. It ensures a 50-hour power reserve, which is considerable in view of the complexity of the calibre and the moving elements. On top of this are built the individual complication modules for managing the display of hours, and tens, and units of minutes.
Exclusivity at heart
All the components of the calibre 160W-1.2 have been designed and hand-worked by the watchmaker in accordance with the requirements and tenants of Haute Horlogerie. The main plate and bridges are made of 18K gold obtained through an ecologically and socially responsible supply chain, certified by the RJC (Responsible Jewellery Council). Another advantage: Gold has an anti-magnetic property and is therefore largely protected from the harmful influence of magnetic fields. Finally, gold lends itself extremely well to the finest finishing techniques.
Visible beauty

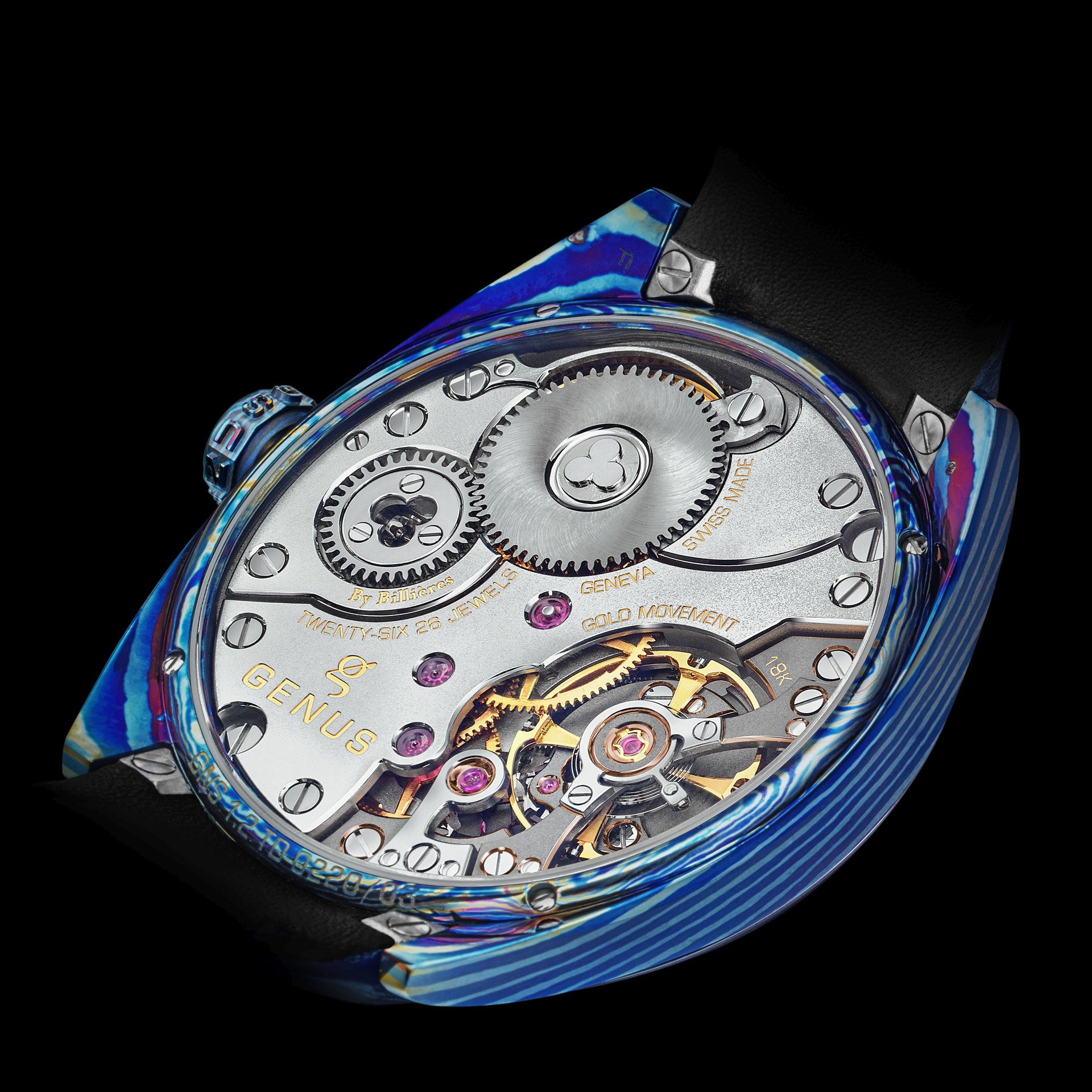

The surface finishing treatments of the 418 components of the calibre 160W-1.2 are at the heart of GENUS’ approach to watchmaking. Each and every tiny part has been worked and re-worked with the most meticulous care and in strict compliance with the requirements and standards of Haute Horlogerie. The escapement bridge is mirror-polished, as are the two beautiful arrow indicators that show the hours (at 9 o’clock) and minute units (at 3 o’clock), to name just a few of the many other components finished in this manner. The plate and the three bridges are micro-beaded, creating a matte effect that allows the glossy finishes to stand out against a contrasting background. All their edges have been bevelled and polished. The visually arresting effect is further enhanced by their shape with curves that vibrantly reflect any play of light.
Technical challenges
Behind the signature time display of GENUS is a succession of challenges that took ten years of gestation and three years of development. The two main inventions that distinguish the GNS timekeeping mechanism have patents pending: the rotating and peripheral display of the hour satellites, and the passage of the ‘genera’ from one analemma orbit to the other.
Coupling the ‘genera’ to the foci counter-rotating minute wheels was a major test. On the one hand, the ‘genera’ must be held in place; on the other, they must be able to move freely from one minute wheel orbit to the other, flowing in the figure eight of an analemma. An undertaking made all the more challenging by the fact that the changeover between the upper and lower orbits must take place with twelve ‘genera’ in a row, all without damaging or wearing the blued finishes of the minute wheels.
Consider the toothed wheel guiding the hour markers – one of the largest there is – with its teeth located on its inner edge. This large wheel must be perfectly flat – even after it has been precisely cut by electro-erosion wire, and hand-finished. Finally, an unrelenting, meticulous focus on reducing friction to a minimum to maximise power generation and energy distribution is undertaken to ensure running time that is compatible with current standards whilst feeding a complex mechanical timekeeping system.
Clients accustomed to Fine conceptual watches, who may have been scalded by past projects, probe the reliability of their movements with assiduousness. The integrity of GENUS, of its founders, is the best guarantee of its merit. Their combined experience as visionaries and entrepreneurs, creators and perfectionist risk-takers has established at the very heart of GENUS’ watchmaking culture, an innate drive to produce innovative watches that are different and reliable for many years to come.
Digital passport
To offer owners the GENUS guarantee of their timepiece’s authenticity and traceability throughout its life, GENUS has joined forces with the Arianee Project. It is an independent consortium whose mission is to establish a global standard for the digital certification of valuables. Based on blockchain technology, the decentralised and open source protocol offers a set of new services for the watch owner, which are directly accessible from the Certificate of Authenticity delivered with each GENUS watch.
The specifics of each timepiece, and in particular for bespoke orders, the sale and/or transmission to a new owner, the service book, proof of ownership/declaration of theft – the Arianee protocol allows GENUS not only to free itself from paper-based authentication (which can be counterfeited) of its timepieces, but above all guarantees its customers a traceability of their watch throughout their life, even if the ownership changes over time.
Thus, GENUS timepieces benefit from a unique and forgery-proof digital identity, a ‘Digital Passport’ if you will, accompanied by a photo of the acquired timepiece with its individual serial numbers (not just a catalogue photo), which opens up a new channel of communication – permanent, secure and anonymous – between the brand and the owner of the timepiece.
A long-term commitment
From the inkling of an idea for an original complication, from the drawing of a mechanism to the marvel of its functioning, GENUS meticulously, patiently, determinedly met each challenge and overcame each obstacle with uncompromising daily discipline and long-term perspective. A thoughtful evolutionary process that may well represent the greatest amount of work and effort in the making of a timepiece. From the outset, GENUS is an authentic expression of watchmaking, true to its own principles – one of which is to place the quality of the timepiece at the very centre of the challenge to assure its value.
This second chapter of the GENUS story opens with passion. A passion that pays homage to the Art of Watchmaking associated with the ancestral Art of Metalsmithing. It has shone a new light on ancient savoir-faire by propelling it into this age with a special material, damascene titanium. This perfectly embodies the spirit that has driven GENUS since the first day: To be part of the great Geneva watchmaking tradition, to cultivate this heritage of ingenuity, ancestral skills, the perfection of the ‘helping hand’, which together, delight the discerning connoisseur.
A remarkable first year
Since officially launching GENUS in June 2019, the brand’s co-founders, Sébastien Billières and Catherine Henry, had an extremely busy year. It began at a frantic pace with the registration of their masterpiece as an entry in the Grand Prix d’Horlogerie de Genève (GPHG) competition. This prestigious event served both as a launch pad and a media sounding board for GENUS. In September, the GNS1.2 WG was shortlisted by the GPHG jury, and in November 2019 it won the Mechanical Exception Prize. In this extremely prestigious and intensely competitive category, GENUS stood out among great, well-established names in Fine Watchmaking complications.
World tour
In September 2019, GENUS had embarked on a world tour to showcase its concept, its founders and its products. From Australia to Mexico and across most of Asia, GENUS made itself known to a select audience of connoisseurs, collectors, and enlightened aficionados as well as the most prestigious resellers in each country.
Retail representation
GENUS was also invited to participate in the launch of the Bucherer Gallery in Geneva, a haven of conviviality and hospitality established by this major watch retailer. GENUS then accepted the invitation to participate in Dubai Watch Week, where the brand was asked to develop and hold daily Master Classes. A few months later, the brand made its debut at the flagship boutique of Ahmed Seddiqi & Sons in the Dubai Mall, cementing the confidence of the leader in watch distribution in the Middle East. Recently, in Switzerland, the brand joined the highly sophisticated watchmaking selection showcased by famed retailer Les Ambassadeurs in their boutique on the exclusive Rue du Rhône in Geneva, the city where the story of GENUS began.
GENUS GNS1.2 TD Technical Specifications and Price
DESCRIPTION
- Collection: GNS 1
- Watch name: GNS1.2
- Material: TD (Titane Damassé – Damascene Titanium)
- Watch reference: GNS1.2 TD
CASE
- Material: Damascene Titanium
- Diameter: 43 mm
- Thickness: 13.1 mm
- Crown: Damascene titanium, G-E-N-U-S letters in relief around its circumference
- Crystal: Domed sapphire crystal with antireflective coating
- Case back: Damascene titanium, screw-secured, sapphire crystal with antireflective coating
- Water resistance: 30 metres (3 ATM)
MOVEMENT
- Winding Manual
- Calibre reference 160W-1.2
- Diameter: 38 mm
- Height: 7.7 mm
- Components: 418
- Rubies: 26
- Frequency: 2.5 Hz or 18’000 vibrations per hour
- Power reserve: About 50 hours
- Regulating organ: Escapement with a Swiss anchor, hairspring, variable inertia balance wheel
TIME DISPLAY COMPLICATION
- Hours: 12 satellites/peripheral and axial rotation indexes (patent pending)
- Tens-of-minutes: 12 free-moving components circulate between 2 counter-rotating wheels (patent pending)
- Units of minutes: Cut-away disc
- Numbers & indexes: With SuperLuminova™
STRAP & BUCKLE
- Leather: Calf leather, folded edge and hand-stitched, navy blue (Alligator upon request)

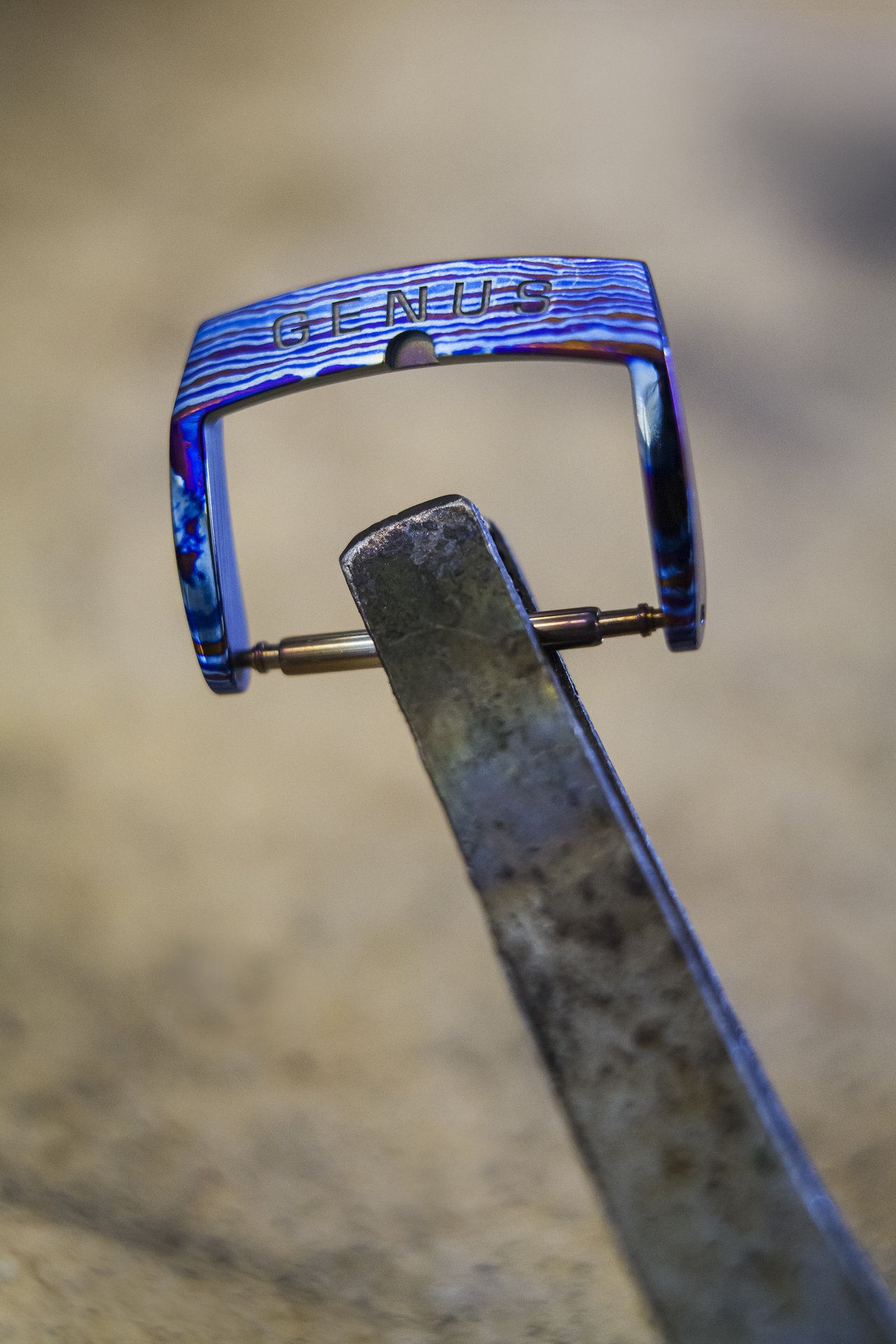

- Buckle: Pin buckle in damascene titanium with the GENUS logo
- Clasp: Fold-over clasp available upon request
SUGGESTED RETAIL PRICE
- CHF 145’000.- Ex-works, without VAT
