Cvstos Double Tourbillon Différentielle

Cvstos Double Tourbillon Différentielle
Reading Time: 3 minutes

A tribute to tradition but supercharged by avant-gardism, CVSTOS redefines the art of highly complicated timepieces and presents a World premiere: The Double Tourbillon Différentielle.

A NEW DIMENSION IN THE QUEST FOR PRECISION

Dedicated to innovation, the caliber CVS8850 takes technical prowess to new heights with a major landmark in the history of CVSTOS. Developed in collaboration with TELOS WATCH, this sophisticated hand-wound mechanical movement is composed of two independent flying tourbillons beating at 28’800 v.p.h. (4 Hz). As well as maintaining its highest standards of watchmaking expertise, two patented innovations have been filed which achieve ultimate precision through their technical breakthrough.

Cvstos Double Tourbillon Differential

ONE CALIBER, TWO NEW PATENTS

Fitted on the main plate, four barrels connected in parallel, ensure the power supply to drive the two tourbillons. This patented arrangement ensures that all four barrels operate simultaneously in order to produce the required level of energy to a differential that averages out the rate of the two tourbillons. As one innovation often leads to another, the patented differential gearing system is mounted on high-tech ceramic micro ball bearings instead of rubies, thereby drastically reducing friction.

Cvstos Double Tourbillon Differential

TECHNICAL HARMONY

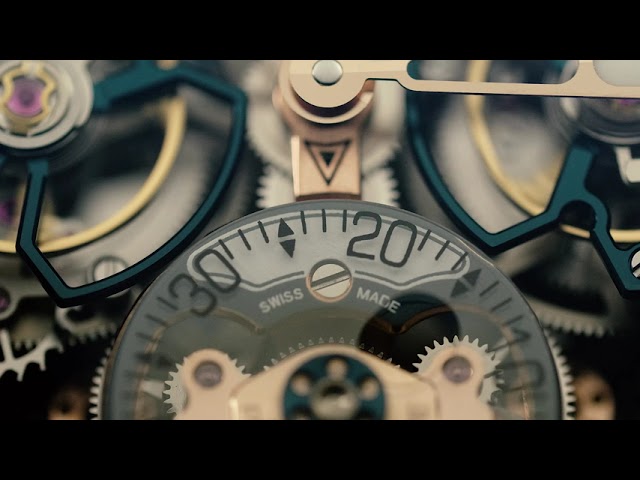

Capturing the essence of CVSTOS’ concept, the movement is fitted in either the powerful Challenge III case or the spectacular Sealiner case with its nautical features. Beautifully balanced, the dial offers a three-dimensional representation of the openwork movement and the superimposition of its 364 components displayed on four different levels. Positioned a 3 o’clock and 9 o’clock the two flying tourbillons revolve independently and provide a lively vision of watchmaking excellence around the small second subdial at 6 o’clock.

Cvstos Double Tourbillon Differential

A LIMITED-EDITION OF TWENTY-FIVE BESPOKE TIMEPIECES

Belonging to the exclusive circle of Haute Horlogerie, the CVSTOS Double Tourbillon Différentielle is a strictly limited edition of 25 bespoke timepieces. A unique and individualized wristwatch with a matchless combination of materials ranging from 5N rose gold to titanium or steel and a large palette of various coating treatments, settings and straps.

Cvstos Double Tourbillon Differential

Cvstos Double Tourbillon Différentielle Technical Specifications

Movement

  • Calibre CVS8550, mechanical manual winding
  • Dimensions 35.55mm x 36.06mm
  • Thickness 10.10 mm
  • Jewels 55 rubies
  • Number of Components 387 components
  • Plates finishing Sandblasted
  • Bridges finishing Sandblasted, circular graining, bevelling and polished by hand
  • Barrels Four barrels in parallel placed on the main plate
  • Barrels Finishing Snail engraving

Tourbillons

  • Number of Components 54 components per cage
  • Weight 0.394 grams per cage
  • Dimension 16.20 mm each cage
  • Rotation One rotation / 60 seconds
  • Balance Titanium, variable-inertia with mean-time titanium screws
  • Power Reserve 60 hours
  • Frequency 28’800 vph (4Hz) each tourbillon
