RJ Arraw Ref. 1M42C.TTTR.2520.RB.1101

RJ ARRAW – Marine Inspired Design for RJ’s First Signature Collection

Reading Time: 5 minutes

RJ, the Geneva-based Swiss watchmaker, proudly presents ARRAW, its first Horology collection, adding to its portfolio of RJ Collaboration and RJ DNA watches. The ARRAW collection which also happens to be the brand’s first core collection is available for both men and women as a range of cutting-edge chronograph watches. It embodies RJ’s passion and commitment to true sophistication and distinctiveness.

RJ ARRAW Ref. 1M42C.TTTR.1517.RB.1101
RJ ARRAW Ref. 1M42C.TTTR.1517.RB.1101

RJ design elements originate from four different universes – Marine, Earth, Air and Space. This year, the ARRAW collection is inspired by the Marine universe with every watch possessing anchor-shaped indexes, lugs reminiscent of the screws on a ship and, on the back of the watch, a helix shell engraving.

RJ ARRAW Ref. 1M42C.OOOR.3518.RB.1101
RJ ARRAW Ref. 1M42C.OOOR.3518.RB.1101

The ARRAW collection is available in two sizes: 42mm and 45mm cases made from a range of materials including titanium, black ceramic and 5N+ red gold. The sleek case is the base for four iconic bumpers – a key element of RJ’s design DNA – in rubber which match composite elements ornamenting the polished and satin-finished lugs. The case is completed with push-buttons inspired by pistons from a ship’s engine room as well as a screwed-in crown guaranteeing water resistance to a depth of 100 meters.

RJ ARRAW Ref. 1M45C.CCCR.1517.RB
RJ ARRAW Ref. 1M45C.CCCR.1517.RB

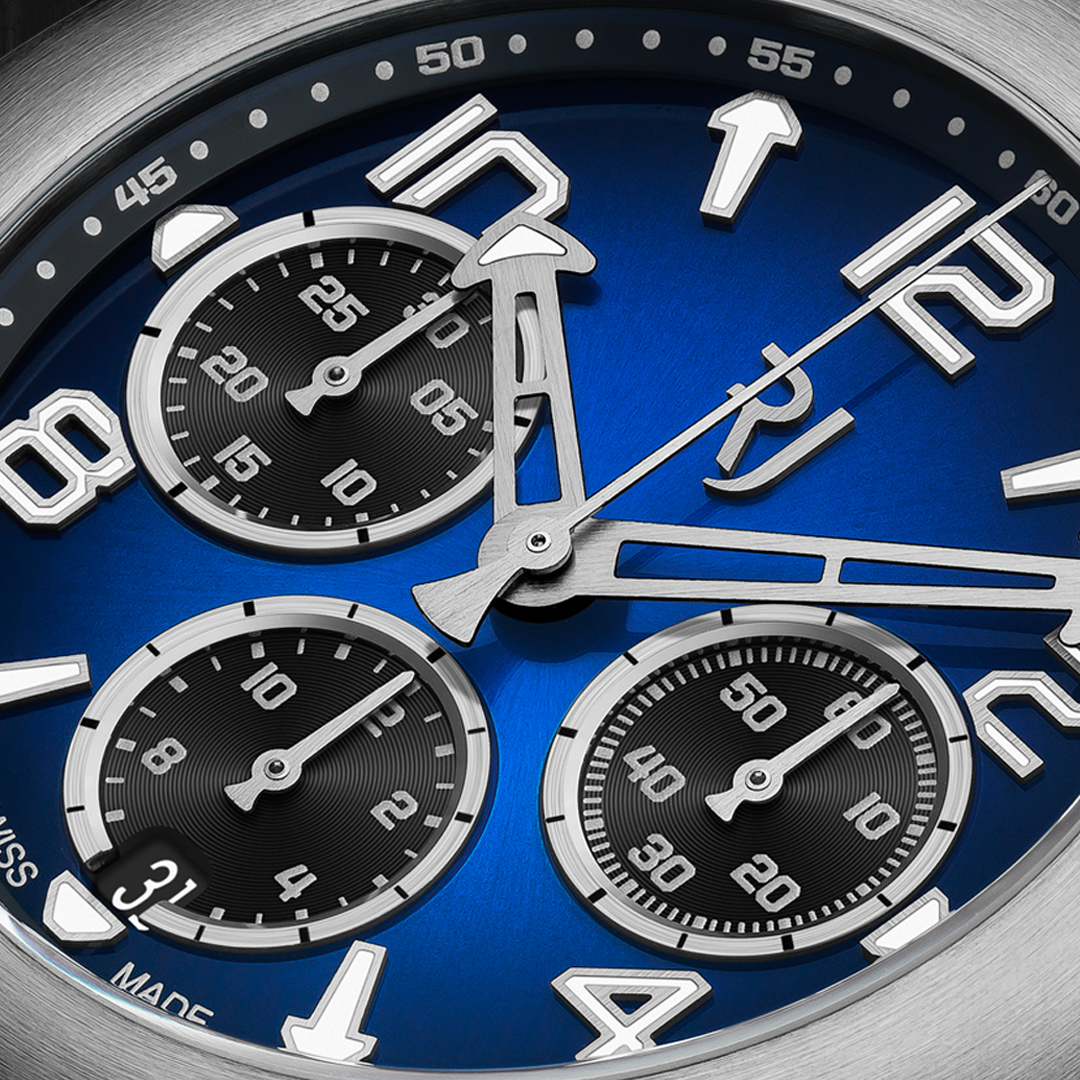

ARRAW dials are sun-brushed, galvanized and gradient-painted, before being coated with transparent lacquer to provide a true depth to the finishing. The chronograph’s galvanic black counters are integrated into the dial and are surrounded by circular displays that complement the satin-finished and arrow-shaped hands.

RJ ARRAW Ref. 1M42C.OOOR.2520.RB.1101
RJ ARRAW Ref. 1M42C.OOOR.2520.RB.1101

The self-winding RJ-2040 chronograph movement displays a ‘30 minutes’ counter at 9 o’clock, a ‘12 hours’ counter and a date aperture at 6 o’clock, and a small second counter at 3 o’clock.

RJ ARRAW Ref. 1M42C.OOOR.3518.RB.1101 & Ref. 1M42C.OOOR.3518.RB
RJ ARRAW Ref. 1M42C.OOOR.3518.RB.1101 & Ref. 1M42C.OOOR.3518.RB

Another hallmark of the ARRAW collection is the interchangeable strap system that allows the strap to be released with a simple ‘click’ by pushing simultaneously on the two lug screws. On the clasp, a lever releases the strap from the deployment buckle without having to resort to any tools. A wide range of interchangeable rubber and alligator straps will be launched with the first models of the collection.

RJ ARRAW Ref. 1M42C.TTTR.1517.RB.1101 & Ref. 1M42C.TTTR.1517.RB

RJ’s CEO, Marco Tedeschi, commented: “I am proud to present ARRAW, RJ’s first core collection. ARRAW watches are a true modernisation of the RJ design philosophy and constitute the foundation for further development as we integrate our own manufacture movements. ARRAW will enable us to bring our DNA and Collaboration concepts to the next level.”

RJ ARRAW Ref. 1M45C.TTTR.3517.RB
RJ ARRAW Ref. 1M45C.TTTR.3517.RB

ARRAW watches are now available at official RJ retailers worldwide.

RJ ARRAW Technical Specifications

REFERENCE 1M45C.CCCR. 1517.RB

CASE

Ref. 1M45C.CCCR.1517.RB

Type
ARRAW « Marine »

Diameter
45 mm

Case
Black ceramic, circular satin-brushed

Bezel
Black ceramic, circular satin-brushed

Lugs
Black ceramic, vertical satin-brushed and polished on the side. Inserts in black composite

Bumpers
Black rubber

Glass
Domed anti-reflective sapphire crystal

Case back
Black ceramic, circular satin-brushed, with sapphire crystal

Crown
Screw-lock in black PVD grade 5 titanium with black rubber insert

Push-buttons
Black PVD grade 5 titanium with black rubber insert

Water resistance
100 meters or 330 feet

MOVEMENT

Caliber
RJ 2040 Mechanical self-winding chronograph bidirectional movement

Functions
Central hours and minutes, small seconds at 3 o’clock, central chronograph hand, 30 minutes counter at 9 o’clock, 12 hours counter and date window at 6 o’clock

 Frequency rate
28’800 alt/h (4 Hz)

Jewels
57 jewels

Power reserve
42 hours approximately

DIAL & HANDS

Color
Galvanic black dial, black gradient paint, polished lacquered with rhodium-plated counters

Appliques
Rhodium-plated and satin-brushed indexes with white SuperLuminova

Hands
Rhodium-plated and satin-brushed with white SuperLuminova

STRAP & CLASP

Type
Interchangeable « ARRAW Rubber »  strap

Material
Black rubber

Clasp
Black PVD titanium deployant buckle clasp, polished and satin-brushed, side plates in black composite and joint in black rubber



REFERENCE 1M45C.OOOR. 3518.RB

Ref. 1M45C.OOOR.3518.RB

CASE

Type
ARRAW « Marine »

Diameter
45 mm

Case
18K red gold+, circular satin-brushed

Bezel
18K red gold+, circular satin-brushed

Lugs
18K red gold+, vertical satin-brushed and polished on the side. Inserts in black composite

Bumpers
Black rubber

Glass
Domed anti-reflective sapphire crystal

Case back
18K red gold+, circular satin-brushed, with sapphire crystal

Crown
Screw-lock in 18K red gold+ with black rubber insert

Push-buttons
18K red gold+ with black rubber insert

Water resistance
100 meters or 330 feet

MOVEMENT

Caliber
RJ 2040 Mechanical self-winding chronograph bidirectional movement

Functions
Central hours and minutes, small seconds at 3 o’clock, central chronograph hand, 30 minutes counter at 9 o’clock, 12 hours counter and date window at 6 o’clock

Frequency rate
28’800 alt/h (4 Hz)

Jewels
57 jewels

Power reserve
42 hours approximately

DIAL & HANDS

Color
Galvanic blue dial, black gradient paint, polished lacquered with red gold-plated counters.

Appliques
Red gold-plated and satin-brushed indexes with white SuperLuminova

Hands
Red gold-plated and satin-brushed with white SuperLuminova

STRAP & CLASP

Type
Interchangeable « ARRAW Rubber » strap

Material
Black rubber

Clasp
18K red gold+ top buckle clasp and red gold PVD deployant clasp, side plates in black composite and joint in black rubber



REFERENCE 1M45C.OOOR. 1518.RB

CASE

Ref. 1M42C.TOTR.1518.RB
Ref. 1M42C.TOTR.1518.RB

Type
ARRAW « Marine »

Diameter
45 mm

Case
18K red gold+, circular satin-brushed

Bezel
18K red gold+, circular satin-brushed

Lugs
18K red gold+, vertical satin-brushed and polished on the side. Inserts in black composite

Bumpers
Black rubber

Glass
Domed anti-reflective sapphire crystal

Case back
18K red gold+, circular satin-brushed, with sapphire crystal

Crown
Screw-lock in 18K red gold+ with black rubber insert

Push-buttons
18K red gold+ with black rubber insert

Water resistance
100 meters or 330 feet

MOVEMENT

Caliber
RJ 2040 Mechanical self-winding chronograph bidirectional movement

Functions
Central hours and minutes, small seconds at 3 o’clock, central chronograph hand, 30 minutes counter at 9 o’clock, 12 hours counter and date window at 6 o’clock

Frequency rate
28’800 alt/h (4 Hz)

Jewels
57 jewels

Power reserve
42 hours approximately

DIAL & HANDS

Color
Galvanic black dial, black gradient paint, polished lacquered with red gold-plated counters

Appliques
Red gold-plated and satin-brushed indexes with white SuperLuminova

Hands
Red gold-plated and satin-brushed with white SuperLuminova

STRAP & CLASP

Type
Interchangeable « ARRAW Rubber » strap

Material
Black rubber

Clasp
18K red gold+ top buckle clasp and red gold PVD deployant clasp, side plates in black composite and joint in black rubber



REFERENCE 1M45C.TTTR. 1517.RB

CASE

Ref. 1M42C.TTTR.1517.RB
Ref. 1M42C.TTTR.1517.RB

Type
ARRAW « Marine »

Diameter
45 mm

Case
Grade 5 titanium, circular satin-brushed

Bezel
Grade 5 titanium, circular satin-brushed

Lugs
Grade 5 titanium, vertical satin-brushed and polished on the side. Inserts in black composite

Bumpers
Black rubber

Glass
Domed anti-reflective sapphire crystal

Case back
Grade 5 titanium, circular satin-brushed, with sapphire crystal

Crown
Screw-lock in grade 5 titanium with black rubber insert

Push-buttons
Grade 5 titanium with black rubber insert

Water resistance
100 meters or 330 feet

MOVEMENT

Caliber
RJ 2040 Mechanical self-winding chronograph bidirectional movement

Functions
Central hours and minutes, small seconds at 3 o’clock, central chronograph hand, 30 minutes counter at 9 o’clock, 12 hours counter and date window at 6 o’clock

Frequency rate
28’800 alt/h (4 Hz)

Jewels
57 jewels

Power reserve
42 hours approximately

DIAL & HANDS

Color
Galvanic black dial, black gradient paint, polished lacquered with rhodium-plated counters

Appliques
Rhodium-plated and satin-brushed indexes with white SuperLuminova

Hands
Rhodium-plated and satin-brushed with white SuperLuminova

STRAP & CLASP

Type
Interchangeable rubber strap « ARRAW Rubber »

Material
Black rubber

Clasp
Titanium deployant buckle clasp, polished and satin-brushed, side plates in black composite and joint in black rubber

RJ ARRAW Image Gallery
